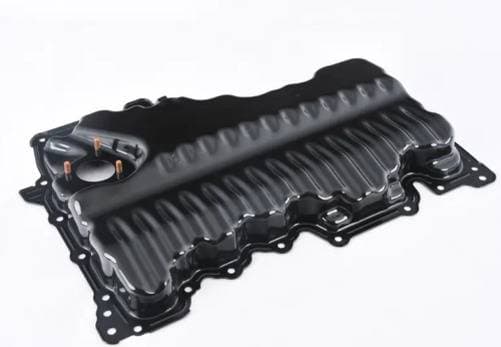

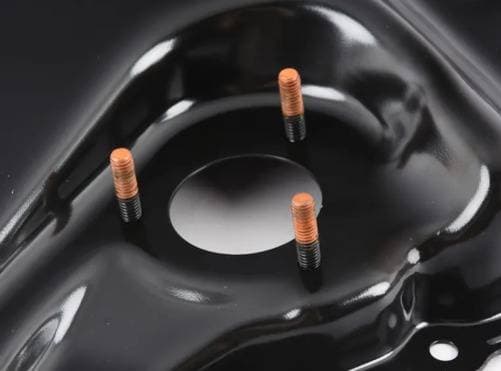

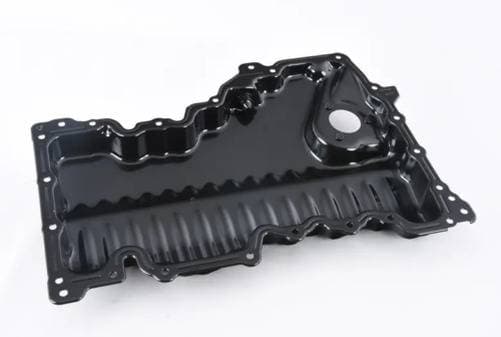

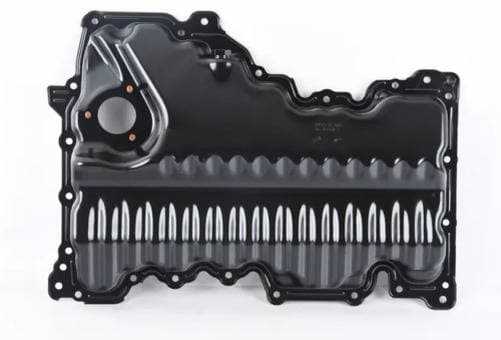

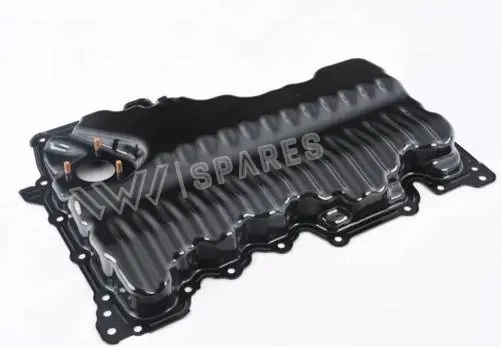

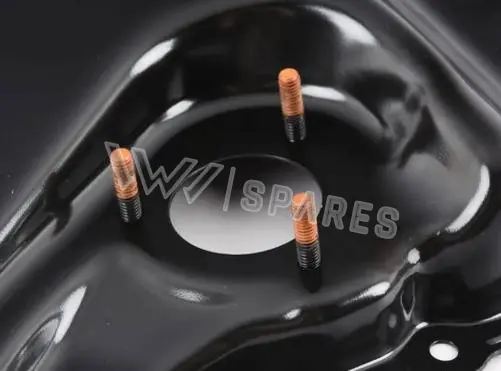

Genuine OEM Audi Engine Oil Pan, part number 04L103602A. This critical component forms the bottom reservoir of the engine, holding the lubricating oil essential for engine operation. It is mounted directly beneath the engine block. Weighing 1.428 kg, this oil pan is typically made from stamped steel or cast aluminum and features a durable black finish. Choosing a genuine OEM engine oil pan ensures precise fitment, proper sealing against leaks, and adequate protection for internal engine components.
Catalogue entry: OIL SUMP.
Fitted with: 03G103707 COVER, 038103196 seal ring, N01508210 COLLAR NUT, N90813202 BOLT, N10748001 BOLT, D176404M2 SEAL.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45 × 34 × 6.5 cm
- Shipping weight
- 1.43 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CYLA, DBBA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

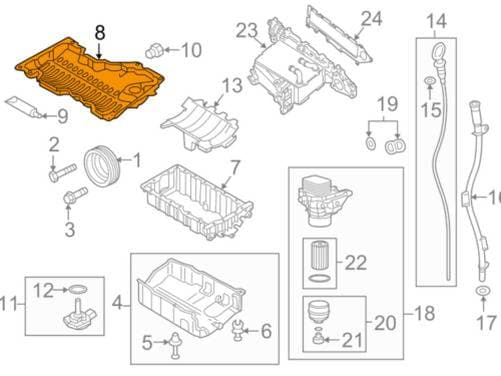

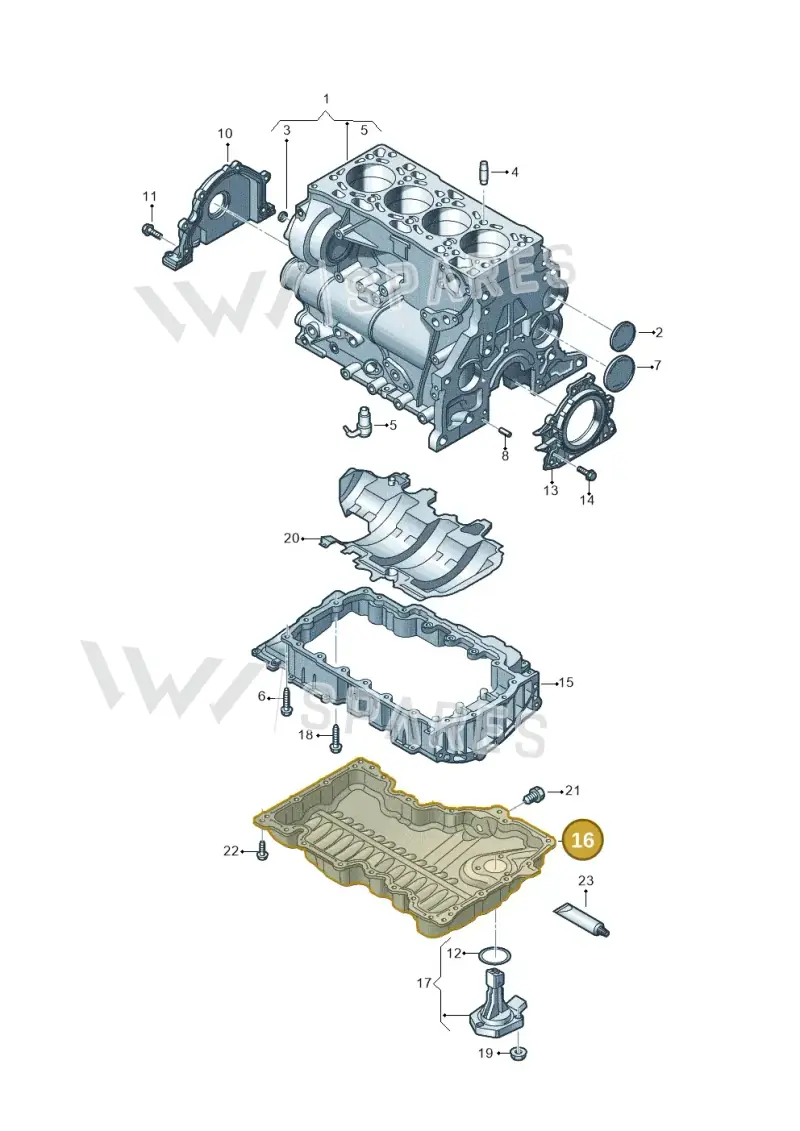

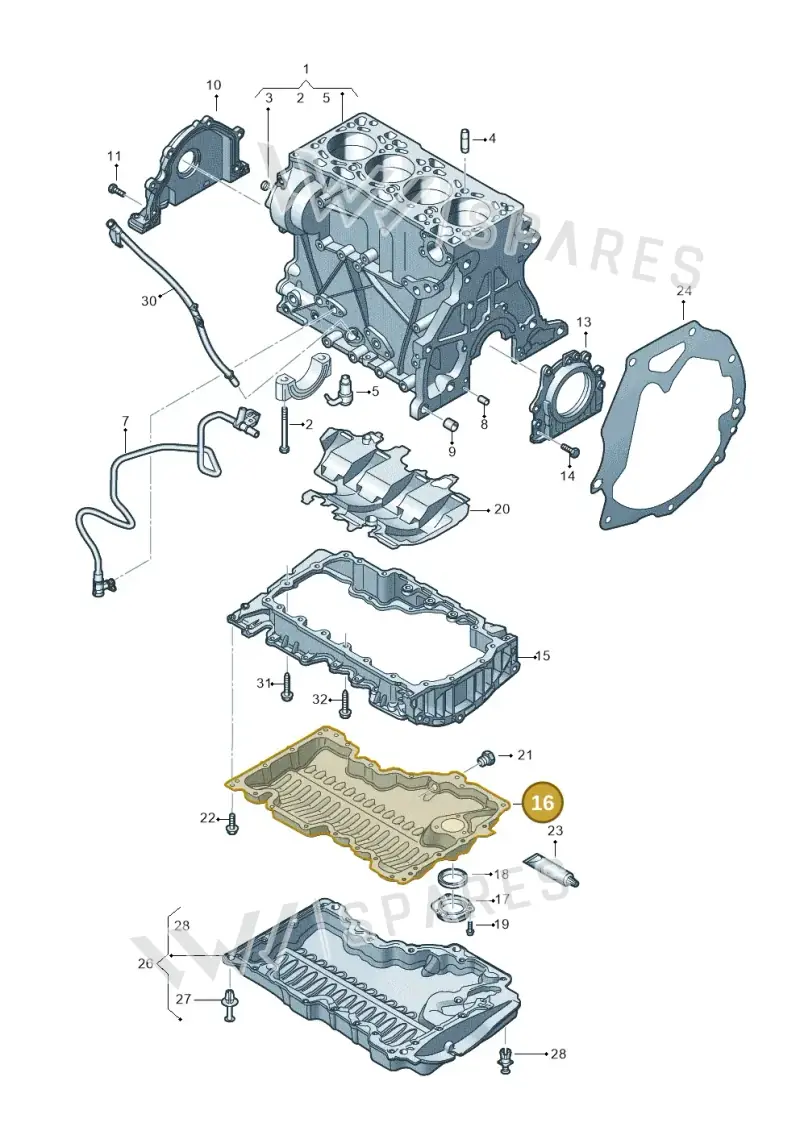

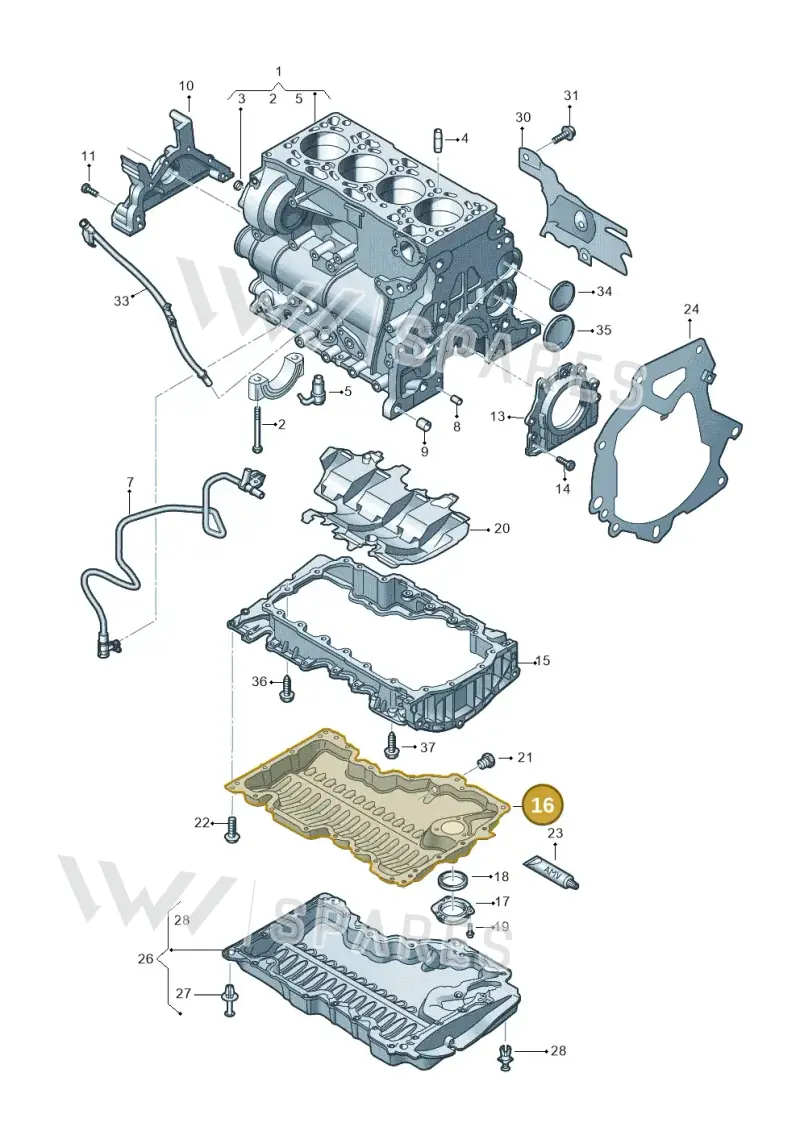

24 vehiclesOil Sump-lower Part — locate 04L103602A Audi Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Crankcase 04L103011
- 2Bolt N90889701
- 3Cover N01190710
- 4Part WHT006540
- 5Vent 038103157C
- 8Part N0432072
- 9Sleeve 022103139B
- 10Flange 04L103151
- 11Bolt N90945002
- 13Flange 04L103171
- 15Oil Sump 04L103603H
- 20Lock 04L103623F
- 21Bolt N90813202
- 22Bolt N10748001
- 23Seal D176501A1
- 24Cover 04L103647
- 26Cover 04L103660A
- 27Spring Rivet 03L863788A
- 28Part 03L103728
- 30Insulation 04L103954AL
- 31Screw N10698101
- 34Cover 04L103113
- 35Cover 04L103113A
- 36Bolt N90735605
- 37Bolt N90735604
Compatible / alternative parts(12)
Vehicle fitment table24
Europe (21)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kodiaq | 2018-2022 | 16 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 16 | 1 | ||
| Arteon | 2017-2023 | 16 | 1 | ||
| Octavia | 2017-2020 | 16 | 1 | QG1 | |
| Tiguan 2.0 4Motion | 2016-2024 | 16 | |||
| Kodiaq | 2016-2024 | 16 | 1 | ||
| golf 2.0 | 2016-2020 | 12, 16 | 1 | ||
| Beetle | 2016-2019 | 16 | |||
| new beetle cabriolet | 2016-2019 | 16 | |||
| Touran 2,0 BlueMotion | 2015-2024 | 16 | 1 | ||
| Passat saloon | 2014-2024 | 16 | 1 | ||
| Audi Q3 2.0 TDI | 2014-2019 | 37 | 1 | CYLA,DBBA | |
| Golf 1.4 BlueMotion | 2014-2017 | 16 | 1 | ||
| jetta | 2014-2017 | 16 | |||
| Golf Estate 1.4 | 2014-2017 | 16 | 1 | ||
| Golf Estate | 2013-2017 | 16 | 1 | QG1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 16 | 1 | QG1 | |
| Octavia | 2012-2017 | 16 | 1 | QG1 | |
| Audi A3 Sportback | 2012-2016 | 33 | 1 | CRUA,DEJB, | |
| new beetle | 2011-2016 | 16 | |||
| new beetle cabriolet | 2011-2016 | 16 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 16 | 1 | ||
| New Passat | 2015-2022 | 16 | |||
| New Passat | 2011-2015 | 16 |
