Product overview

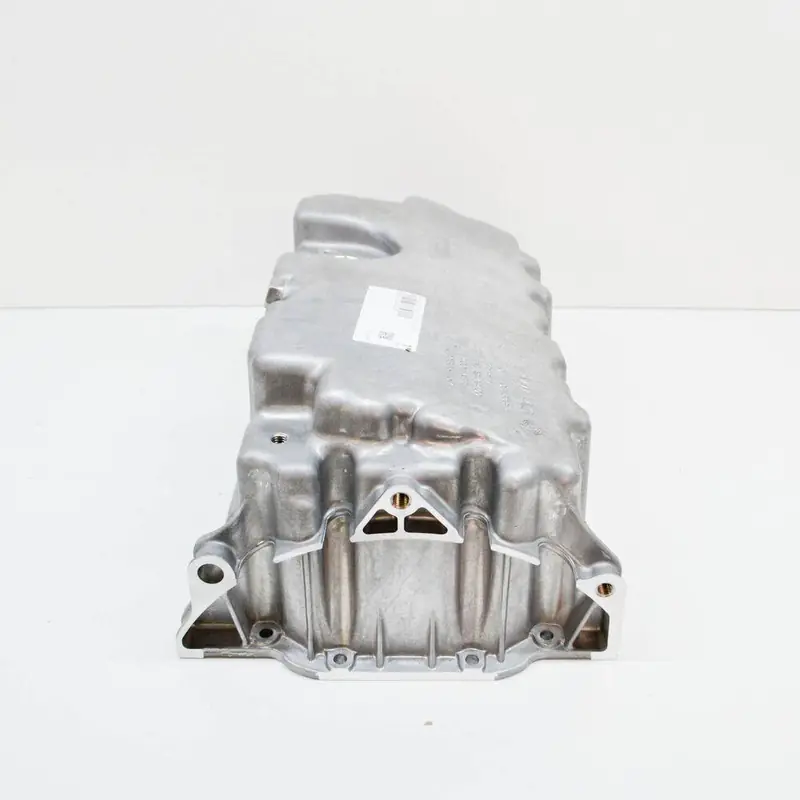

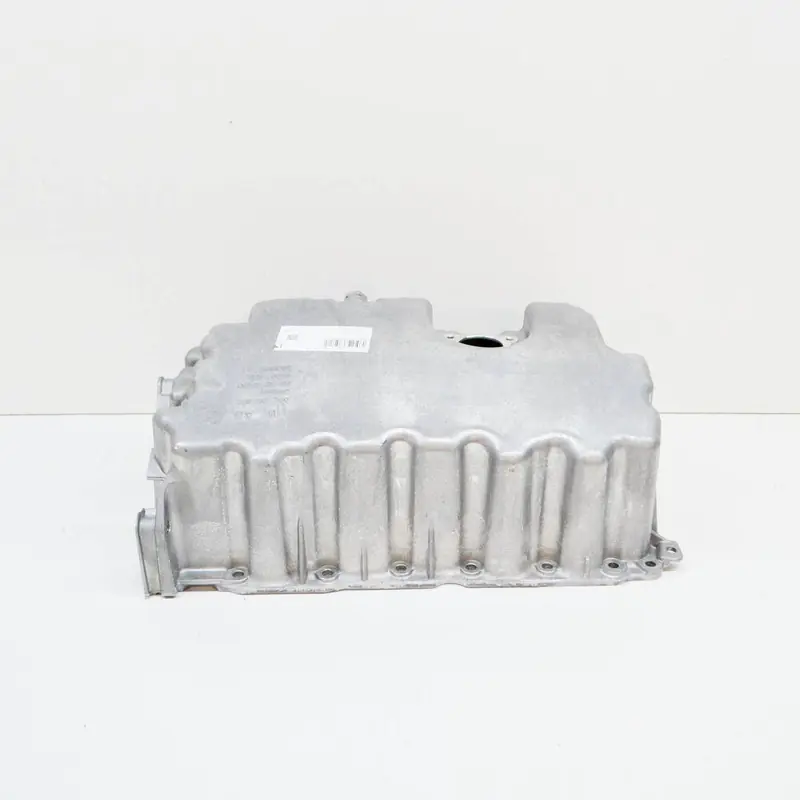

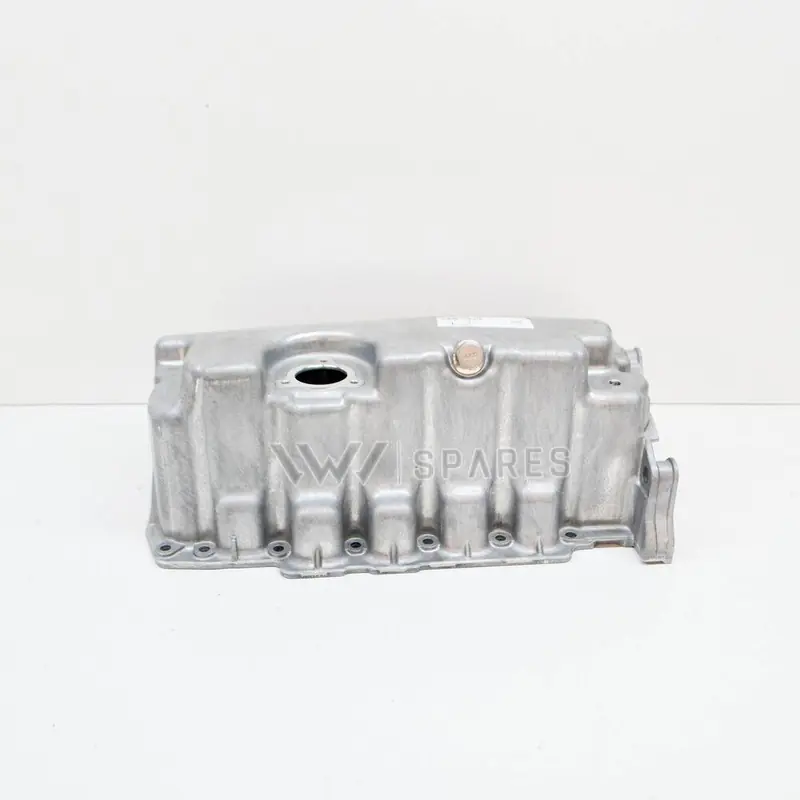

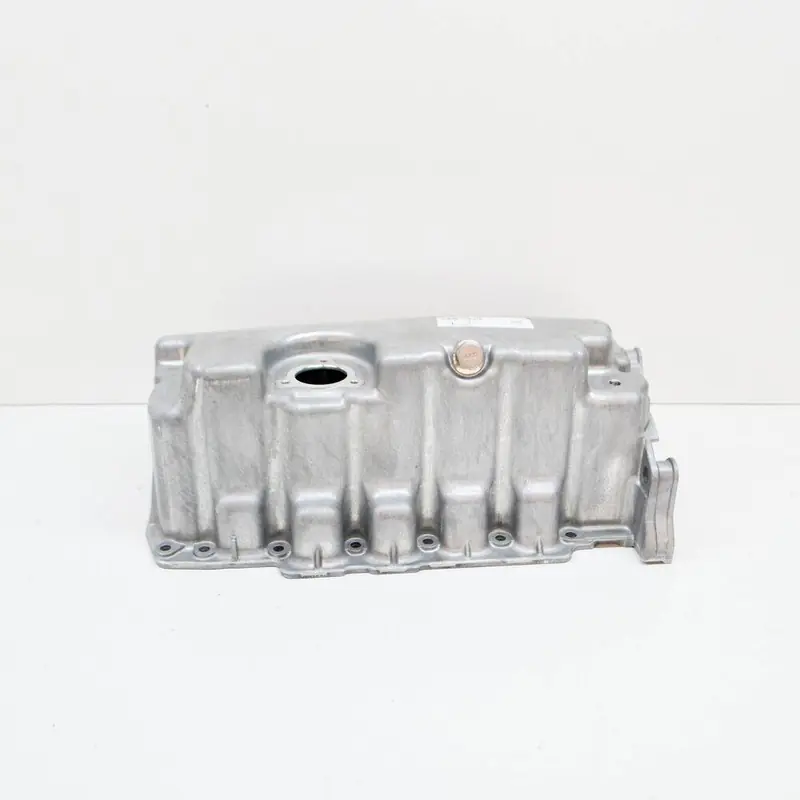

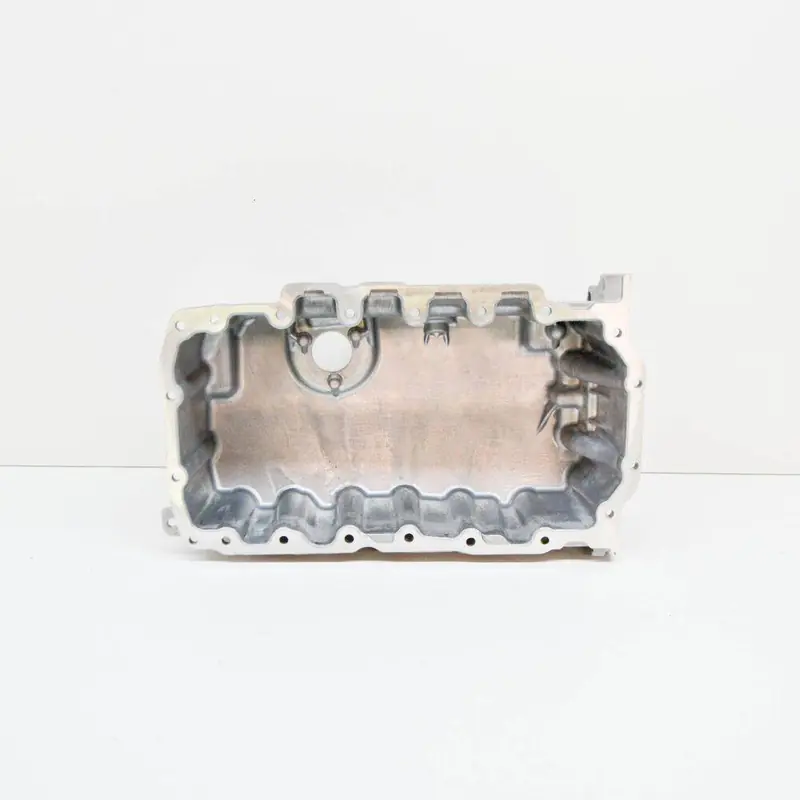

Genuine OEM Volkswagen Engine Oil Pan, part number 04L103603F. This critical component is located at the bottom of the engine, designed to collect and store engine oil for lubrication and cooling. It features a robust construction, weighing approximately 2.46 kg, with dimensions of 0.44m length, 0.26m width, and 0.165m height. Choosing a genuine OEM oil pan ensures an exact fit, proper sealing, and the correct material composition to withstand engine heat and corrosion.
Catalogue entry: OIL SUMP.
Fitted with: D176501A1 SEAL, 038103196B seal ring, N91065201 SCREW, N90813202 BOLT, N90735604 BOLT.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44 × 26 × 16.5 cm
- Shipping weight
- 2.46 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesOil Sump — locate 04L103603F Volkswagen Engine Oil Pan | Genuine OEM Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly13
Compatible / alternative parts(12)
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| transport. multivan | 2019-2024 | 11, 16 | 1 |
| caravelle | 2019-2024 | 11, 16 | 1 |
| Single-cab transp. | 2019-2024 | 11, 16 | 1 |
| caravelle | 2015-2019 | 19, 16 | 1 |
| Single-cab transp. | 2015-2019 | 19, 16 | 1 |
| California Camper | 2015-2019 | 19, 16 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04L103603F Volkswagen Engine Oil Pan | Genuine OEM Sump is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
