04L121065P Coolant Pipe
- 04L121065PThis pageNot stocked
Feb 2013 - 04L121065Not stocked
Oct 2014 - 04L121065BHNot stocked
Aug 2016 - 04L121065CCNot stocked
Oct 2017 - 04L121065CRCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

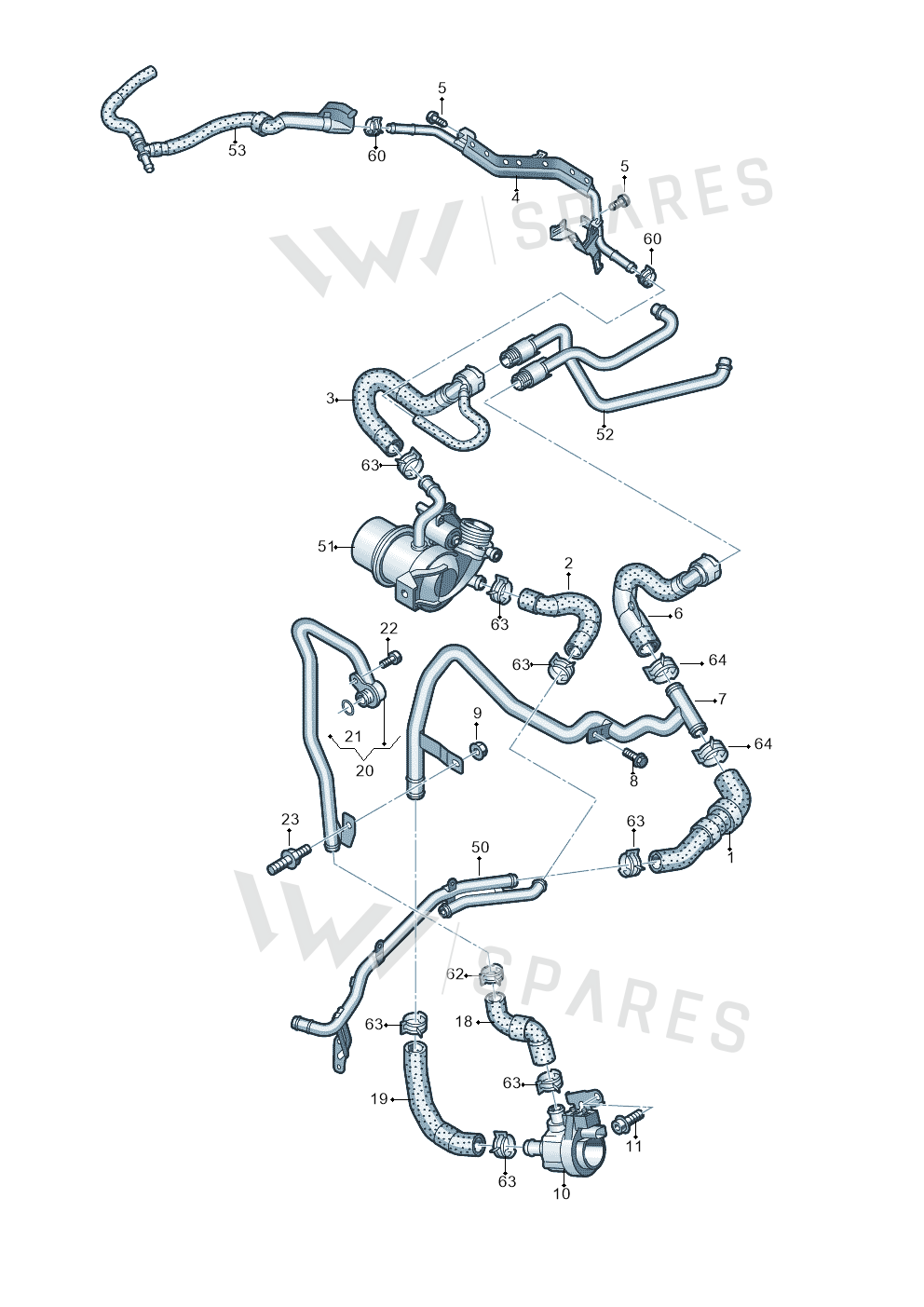

1 vehicleCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Hose 5Q0122073R
- 2Hose 5Q0122157CK
- 3Hose 5Q0122157AS
- 3Hose 5Q0122157CL
- 3Hose 5Q0122157CE
- 4Water Pipe 04L121070D
- 4Water Pipe 04L121070AG
- 5Bolt N91096701
- 6Hose 5Q0122073BK
- 7Water Pipe 04L121065
- 8Bolt N10156307
- 9Collar Nut N10609201
- 9Collar Nut N01508210
- 9Bolt N91264801
- 10Pump 5Q0121599M
- 11Screw N10698101
- 18Hose 5Q0122073H
- 19Hose 5Q0122073AE
- 20Water Pipe 04L121065AJ
- 21Seal Ring 04L121119C
- 22Screw N10285505
- 23Bolt N10781701
- 60Clamp N90686701
- 62Clamp N90686902
- 63Clamp N90687001
- 64Clamp N90687101
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A3 Sportback | 2012-2016 | 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Audi A3 Sportback 2012-2016.
