04L129711AA Int Man W Charge Air Cooler
- 04L129711GNot stocked
Aug 2018 - 04L129711AAThis pageNot stocked
Sep 2019 - 04L129711AFCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 3.95 kg
- Shipping size (L × W × H)
- 44.3 × 24 × 18 cm
- Customs (HS) code
- 84099900

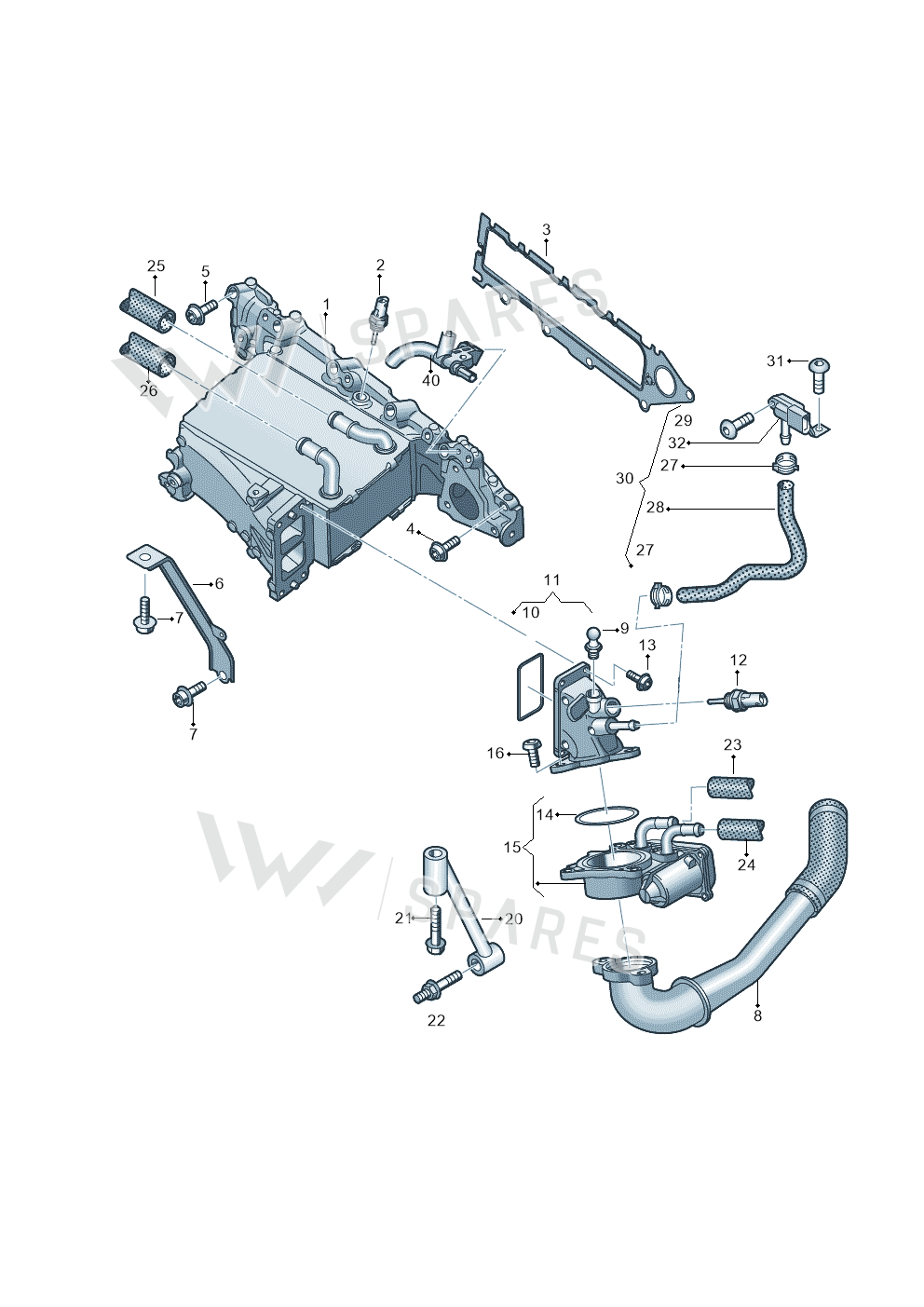

Parts diagram & fitment
5 vehiclesInt Man W Charge Air Cooler — locate Int Man W Charge Air Cooler in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Int Man 04L129711AF
- 2Sensor 03N906081D
- 3Seal 04L129717D
- 4Screw N91157202
- 5Screw N10649401
- 6Support 04L129723
- 7Screw N10717001
- 9Ball Joint 04L103164A
- 10Seal 04L131547N
- 11Union 04L128637B
- 13Bolt N10644403
- 14Seal 04L131547J
- 15Thr Flap 04L128063T
- 16Bolt N01021723
- 20Support 04L129723A
- 21Screw N10746301
- 22Bolt N91206201
- 27Clamp 3C0131483A
- 28Hose 04L131850A
- 29Bolt N91096701
- 30Hose 04L145049AE
- 30Hose 04L145049R
- 32Sensor 04L906051K
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| audi a6 2.0 | 2018- | 1 | 1 | TD1 | |
| Audi Q5 | 2016-2020 | 1 | 1 | DESA | TD1 |
| Audi A5 Sportback | 2016-2020 | 1 | 1 | DESA,CZHA | TD1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 1 | D | ||
| audi a4 2.0 | 2015-2019 | 1 | 1 | DESA,CZHA | TD1 |
Diagrams & fitment data powered by oemdiagrams.com
Int Man W Charge Air Cooler is fitted on: audi a6 2.0 2018-; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
