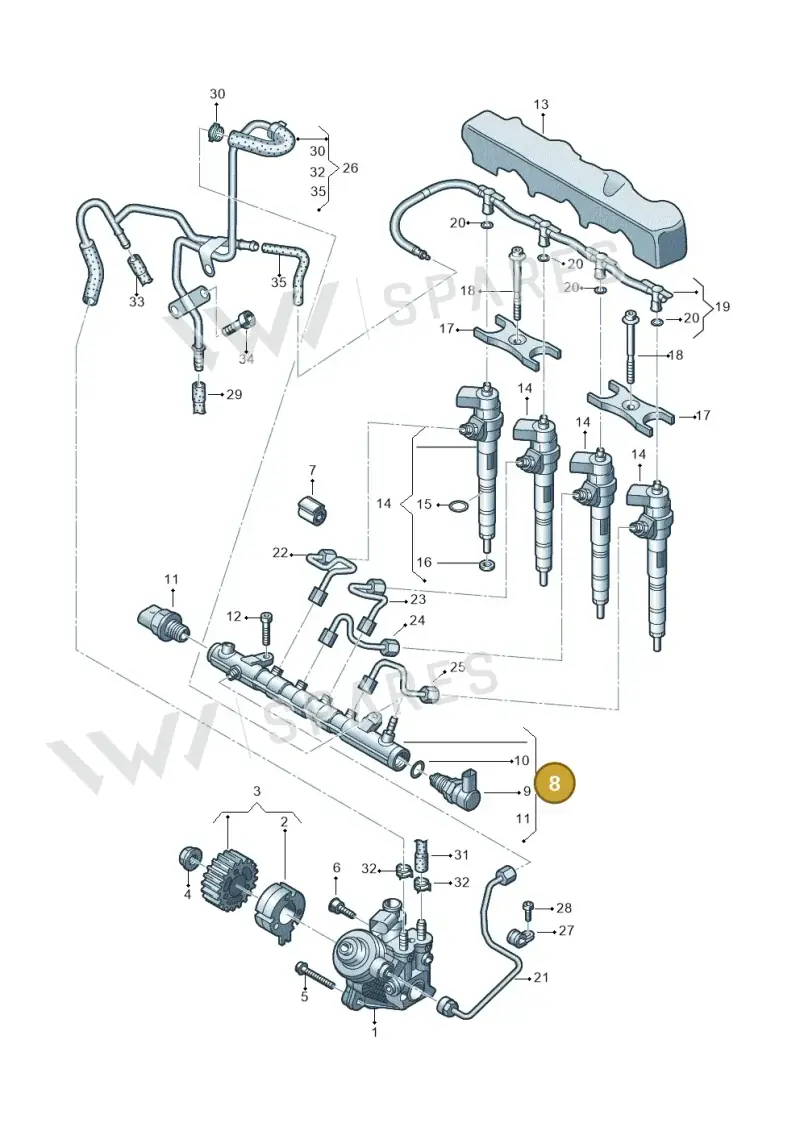

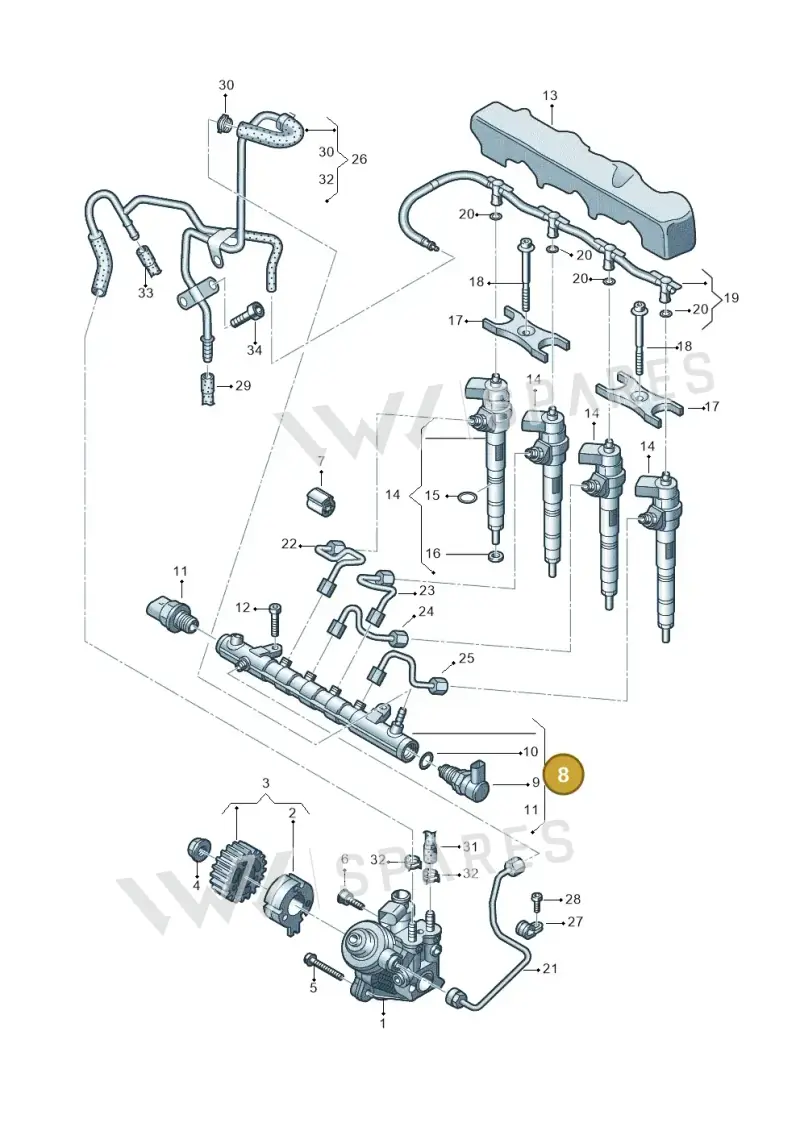

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Rail, part number 04L130089D. This component is responsible for distributing pressurized fuel from the fuel pump to the engine's fuel injectors. It is typically mounted on the cylinder head. Constructed from durable metal to withstand fuel pressure and heat. Genuine OEM parts ensure precise fitment and material integrity for reliable fuel delivery.
Catalogue entry: RAIL.
Fitted with: 04L130089F RAIL, 04L130089G RAIL, 04L130089B RAIL, N91128701 SCREW, N90986501 CLAMP.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 35 × 8 × 6 cm
- Shipping weight
- 1.39 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CKFB, CKFC, CRBC, CRKB, CRLB, CRLD, CRMB, CUNA, CUPA, CXXB, DBKA, DCYA, DCYB, DFFA, DFGA, DFGB, DGCA, DJGA
Equipment codes
- 7MM
- D36
- DK5
- 7MJ
- FM1
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
13 vehiclesFuel Rail — locate 04L130089D Volkswagen Fuel Rail | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1Pump 04L130755E
- 1Pump 04L130755D
- 3Pulley 04L130101C
- 3Pulley 04L130101
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Bolt N10665001
- 7Damper 03L130118
- 8Rail 04L130089G
- 8Rail 04L130089B
- 9Valve 04L130764C
- 9Valve 057130764AB
- 10Seal Ring WHT004740A
- 10Seal Ring WHT008239
- 10Seal Ring N90451902
- 11Sensor 04L906054
- 12Screw N91128701
- 13Insulation 04L130380F
- 13Bump Strip 04L130380
- 14Injector 04L130277AA
- 14Injector 04L130277AC
- 14Injector 04L130277AE
- 14Injector 04L130277AK
- 15Seal Ring WHT000884
- 16Part 03P130519
- 16Seal Ring 059130519
- 17Clamp Piec 04L130216
- 18Screw WHT005478
- 19Pipe 04L130235J
- 19Pipe 04L130235G
- 20Seal Ring WHT006497
- 21Pipe 04L130321
- 22Pipe 03L130301AR
- 23Pipe 03L130301AS
- 24Pipe 03L130301AT
- 25Pipe 03L130301BA
- 26Fuel Line 04L201360T
- 26Fuel Line 04L201360M
- 27Clamp N91171101
- 28Bolt N10335206
- 30Clamp N90986501
- 32Clamp 4B0422379
Compatible / alternative parts(12)
Vehicle fitment table13
Europe (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Octavia | 2017-2020 | 8 | 1 | PR:TS1 | |
| golf 2.0 | 2016-2020 | 8 | 1 | CRL | |
| Audi A3 Sportback | 2016-2020 | 8 | 1 | DCYA,DGCA, | DF |
| Audi A3 Cabrio | 2016-2020 | 8 | 1 | TR1 | |
| Leon ST Stylance | 2016-2020 | 8 | 1 | ||
| Audi TTS Coupe 2.0 | 2014-2023 | 8 | 1 | TR1 | |
| Golf Sportsvan 1.6 | 2014-2020 | 8 | 1 | PR:7MM+D36, | |
| Golf Estate | 2013-2017 | 8 | 1 | CR | KA, |
| Audi A3 Cab. 1.4 | 2013-2016 | 8 | 1 | CRKB | TJ1 |
| Golf 1.4 BlueMotion | 2012-2017 | 8 | 1 | PR:DN4,DK7+ | |
| Octavia | 2012-2017 | 8 | 1 | PR:TR1+ | |
| Audi A3 Sportback | 2012-2016 | 8 | 1 | CRLB,CUNA, | |
| Leon ST Stylance | 2012-2016 | 8 | 1 |
