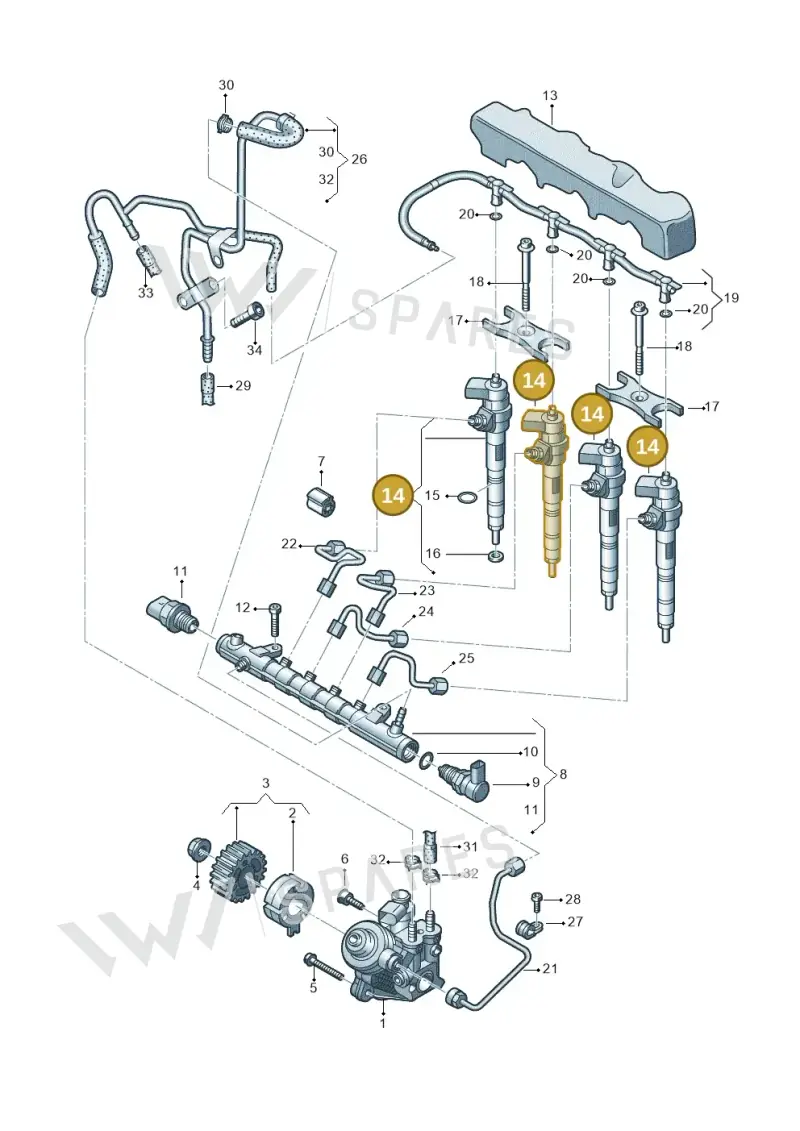

Number 14 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Injector Unit, part number 04L130277AL. This injector is responsible for precisely delivering fuel into the engine's combustion chamber. It is mounted in the cylinder head and connects to the fuel rail and intake manifold. The precise spray pattern and timing are crucial for efficient combustion and engine performance. Genuine OEM injectors are manufactured to exact specifications, ensuring correct fuel atomization and flow rates for optimal engine operation and longevity.
Catalogue entry: INJECTOR Cylinder 2,3,4 ×3.
Fitted with: 04L130277P INJECTOR, 04L130277AF INJECTOR, 04L130277AM INJECTOR, 04L130277N INJECTOR, 04L130277AE INJECTOR, 04L130277AB INJECTOR, 04L130277AC INJECTOR, 04L130216 Clamp.piec, WHT005478 SCREW, WHT006497 SEAL. RING, 03L130301AR PIPE, 03L130301BF PIPE.
Technical details
- Category
- Other
- Customs (HS) code
- 84133020
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 24 × 6.5 × 5.5 cm
- Shipping weight
- 0.64 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0GG
- 7MJ
- DN4
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
7 vehiclesInjector Unit — locate 04L130277AL Volkswagen Injector Unit | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Pump 04L130755E
- 3Pulley 04L130101C
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Bolt N10665001
- 7Damper 03L130118
- 8Rail 04L130089H
- 9Valve 04L130764D
- 10Seal Ring WHT008239
- 11Sensor 04L906054E
- 12Screw N91128701
- 13Insulation 04L130380F
- 15Seal Ring WHT000884
- 16Seal Ring 059130519
- 17Clamp Piec 04L130216
- 18Screw WHT005478
- 19Pipe 04L130235N
- 20Seal Ring WHT006497A
- 21Pipe 04L130321
- 22Pipe 03L130301AR
- 23Pipe 03L130301AS
- 24Pipe 03L130301AT
- 25Pipe 03L130301BA
- 26Fuel Line 04L201360M
- 27Clamp N91171101
- 28Bolt N10335206
- 30Clamp N90986501
- 32Clamp 4B0422379
Vehicle fitment table7
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Kodiaq | 2024- | 14 | 4 | |
| Kodiaq | 2018-2022 | 14 | 4 | |
| Audi Q5 | 2016-2020 | 14 | 3 | PR:0GG,7MJ+ |
| Audi A5 Sportback | 2016-2020 | 14 | 3 | PR:0GG,7MJ+ |
| Audi A5 Cabrio 2.0 | 2016-2018 | 14 | 3 | PR:0GG,7MJ+ |
| audi a4 2.0 | 2015-2019 | 14 | 3 | PR:0GG,7MJ+ |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 14 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
04L130277AL Volkswagen Injector Unit | Genuine OEM is fitted on: Kodiaq 2024-; Kodiaq 2018-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Tiguan 2.0 4Motion 2016-2022.
