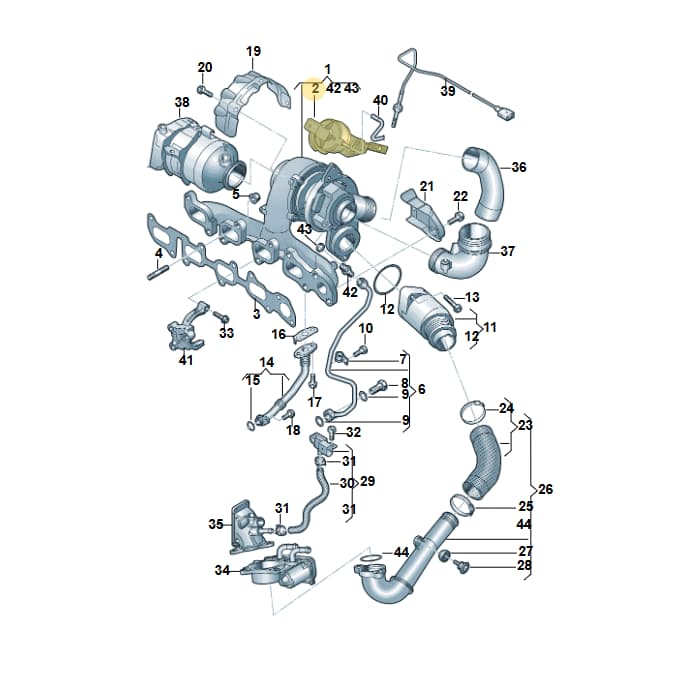

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Repair Set, part number 04L198716G. This set is designed for repairing components of the turbocharger system. It contains various parts necessary for a complete repair. The components are located within the turbocharger assembly. Using a genuine OEM repair set ensures all parts are designed to work together seamlessly for optimal turbocharger performance and longevity.
Technical details
- Category
- Tools & Accessories
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14 × 9 × 7.5 cm
- Shipping weight
- 0.51 kg
Parts diagram & fitment
1 vehicleRepair Set — locate 04L198716G Volkswagen Repair Set | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(38)
- 1Part 04L253016F
- 1Part 04L253016FX
- 1Part 04L253020R
- 1Part 04L253020RX
- 2Repair Kit 04L198716C
- 3Seal 04L253039B
- 4Bolt N90188902
- 5Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 6Pipe 04L145771J
- 7Clamp 04L145807
- 8Screw N0210719
- 9Seal Ring N0138133
- 10Bolt N10524202
- 11Damper 04L131111Q
- 12Seal Ring 04B145117
- 13Screw N91117502
- 14Oil Line 04L145736E
- 15Seal Ring WHT007702
- 16Seal 04B145757
- 17Bolt N90592705
- 18Bolt N90737107
- 19Heat Sh 04L129969K
- 20Bolt N10680303
- 21Heat Sh 04L129969J
- 23Hose 04L145828D
- 24Clamp N10518801
- 25Clamp N10619801
- 26Chargetube 04L145762CC
- 27Grommet 867129669
- 28Socket 3C0145830
- 29Hose 04L145049L
- 30Hose 04L131850A
- 31Clamp N90686701
- 32Bolt N10335206
- 33Bolt N90440003
- 42Union 059145911A
- 43Seal Ring N90707001
- 44Seal Ring 04L145119A
Diagrams & fitment data powered by oemdiagrams.com
04L198716G Volkswagen Repair Set | Genuine OEM is fitted on: Passat saloon 2014-2024.
