04L253020HX Exhaust Manifold With Turbocharger
- 04L253020HXThis pageNot stocked
Sep 2018 - 04L253020SXSuperseded
Oct 2024 - 04L253020SCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

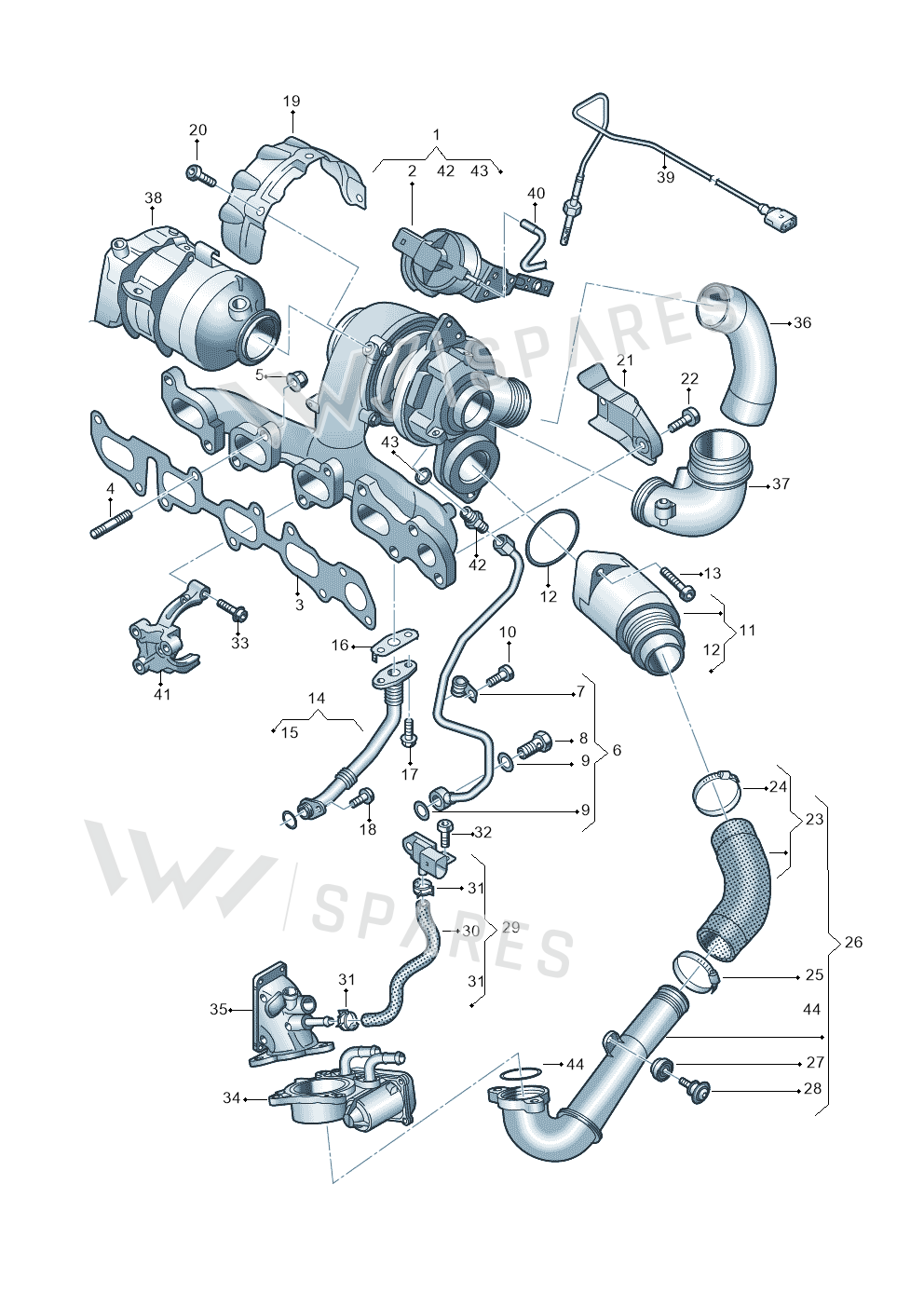

6 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 04L253016H
- 1Part 04L253020A
- 1Part 04L253020H
- 1Part 04L253020S
- 1Part 04L253020SX
- 1Turbo 04L253020M
- 1Turbo 04L253056P
- 1Turbo 04L253020MX
- 1Turbo 04L253056PX
- 2Repair Kit 04L198716
- 3Seal 04L253039B
- 3Seal 04L253039G
- 4Bolt N90188902
- 5Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 6Pipe 04L145771J
- 6Pipe 04L145771H
- 7Clamp 04L145807
- 8Screw N0210717
- 9Seal Ring N0138133
- 10Bolt N10524202
- 11Damper 04L131111T
- 11Damper 04L131111M
- 11Damper 04L131111AD
- 12Seal Ring 04L145117
- 13Screw N91117502
- 13Bolt N10124408
- 14Oil Line 04L145736E
- 15Seal Ring WHT007702
- 16Seal 03L145757G
- 16Seal 04B145757
- 17Bolt N90592705
- 18Bolt N90737107
- 19Heat Sh 04L129969K
- 20Bolt N10680303
- 21Heat Sh 04L129969J
- 23Hose 04L145828D
- 24Clamp N10518801
- 25Clamp N10619801
- 26Chargetube 04L145762AD
- 27Grommet 867129669
- 28Socket 3C0145830
- 29Hose 04L145049L
- 30Hose 04L131850A
- 31Clamp N90686701
- 32Bolt N10335206
- 33Bolt N90440003
- 42Union 028145786
- 42Union 059145911A
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. |
|---|---|---|
| Ibiza FR | 2017- | 1 |
| golf 2.0 | 2016-2020 | 1 |
| Touran 2,0 BlueMotion | 2015-2024 | 1 |
| Golf Sportsvan 1.6 | 2014-2020 | 1 |
| Golf Estate | 2013-2017 | 1 |
| Golf 1.4 BlueMotion | 2012-2017 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: Ibiza FR 2017-; golf 2.0 2016-2020; Touran 2,0 BlueMotion 2015-2024; Golf Sportsvan 1.6 2014-2020; Golf Estate 2013-2017; Golf 1.4 BlueMotion 2012-2017.
