04L253056C Exhaust Manifold With Turbocharger
- 04L253010SNot stocked
Aug 2013 - 04L253056CThis pageNot stocked
Jan 2015 - 04L253056ENot stocked
Jun 2015 - 04L253056HNot stocked
Aug 2021 - 04L253056LNot stocked
Jul 2019 - 04L253124Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

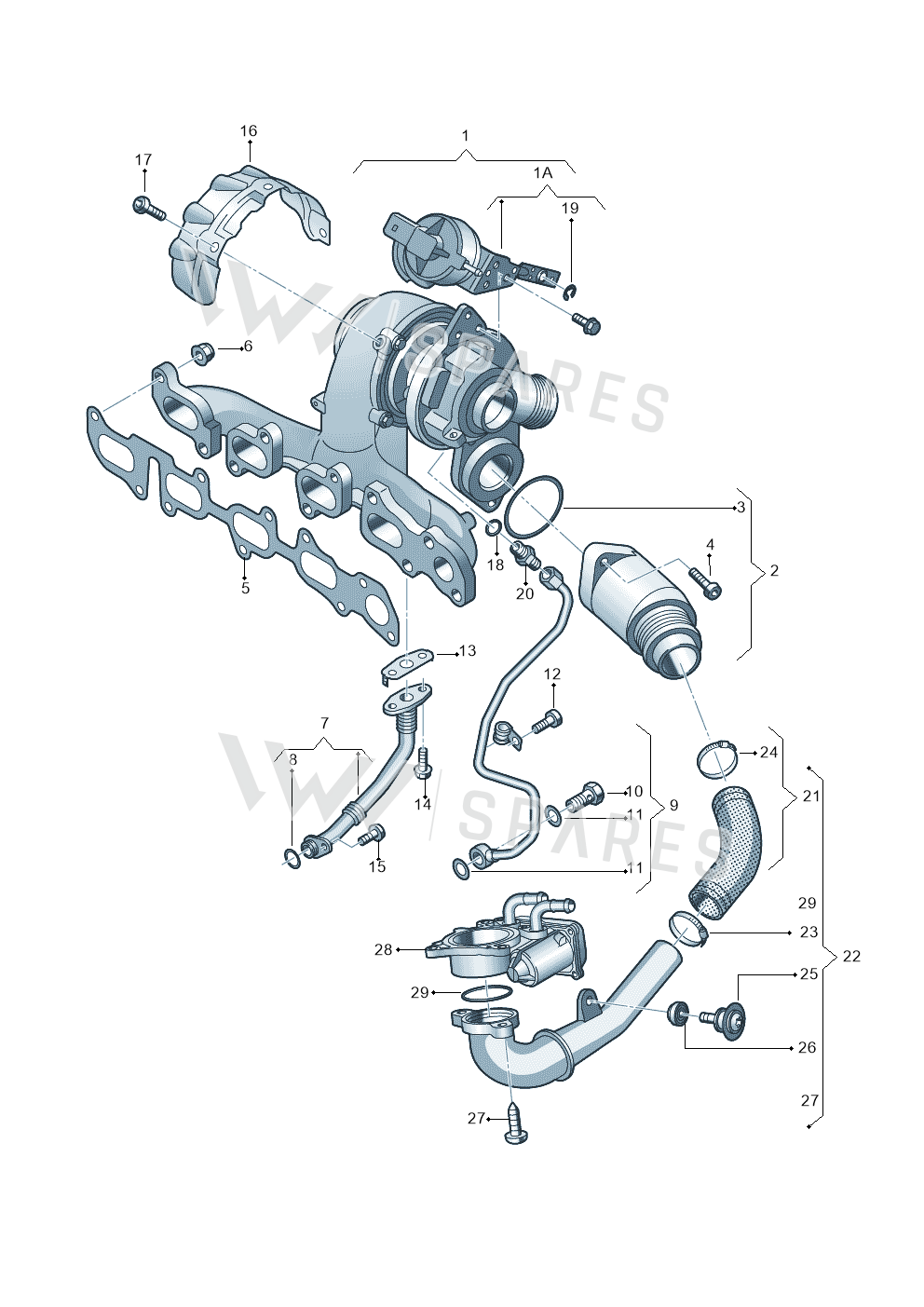

7 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Part 04L253019A
- 1Part 04L253056L
- 1ARepair Kit 04L198716E
- 2Damper 04L131111AB
- 2Damper 04L131111N
- 3Seal Ring 04L145117B
- 3Seal Ring 04L145117C
- 4Bolt N10124309
- 4Screw N91117502
- 5Seal 04L253039B
- 5Seal 04L253039G
- 6Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 6Part WHT004982
- 7Oil Line 04L145736E
- 8Seal Ring WHT007702
- 9Pipe 04L145771H
- 10Screw N0210717
- 11Seal Ring N0138133
- 12Bolt N10524202
- 13Seal 03L145757G
- 14Bolt N90592705
- 15Bolt N90737107
- 17Bolt N10680303
- 18Seal Ring N90707001
- 20Union 059145911A
- 21Hose 04L145828B
- 22Chargetube 04L145762AG
- 23Clamp N10619801
- 24Clamp N10518801
- 25Socket 04L145830
- 26Grommet 04L129669
- 27Bolt N91182101
- 29Seal Ring 04L145119A
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| audi a6 qu. 3.0 tdi | 2014-2018 | 1 | 1 | CNHA,CZJA | TD1 |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 1 | 1 | CNHA,CNHC | TD1 |
| Audi A5 Sportback | 2011-2017 | 1 | 1 | CNHA,CNHC | TD1 |
| Audi A5 Cabrio 2.0 | 2011-2017 | 1 | 1 | CNHA | TD1 |
| audi a4 av. 2.0 tdi | 2011-2015 | 1 | 1 | CNHA,CNHC | TD1 |
| audi a6 2.0 tdi | 2010-2015 | 1 | 1 | TD1 | |
| Audi A4 Av. Allroad | 2008-2016 | 1 | 1 | CNHA,CNHC | TD1 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: audi a6 qu. 3.0 tdi 2014-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; audi a6 2.0 tdi 2010-2015; Audi A4 Av. Allroad 2008-2016.
