051133699E Fuel Pipe
- 051133699BNot stocked
May 1995 - 051133699EThis pageDiscontinued
Feb 2012
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 85 g
- Country of origin
- Germany
- Customs (HS) code
- 84099100

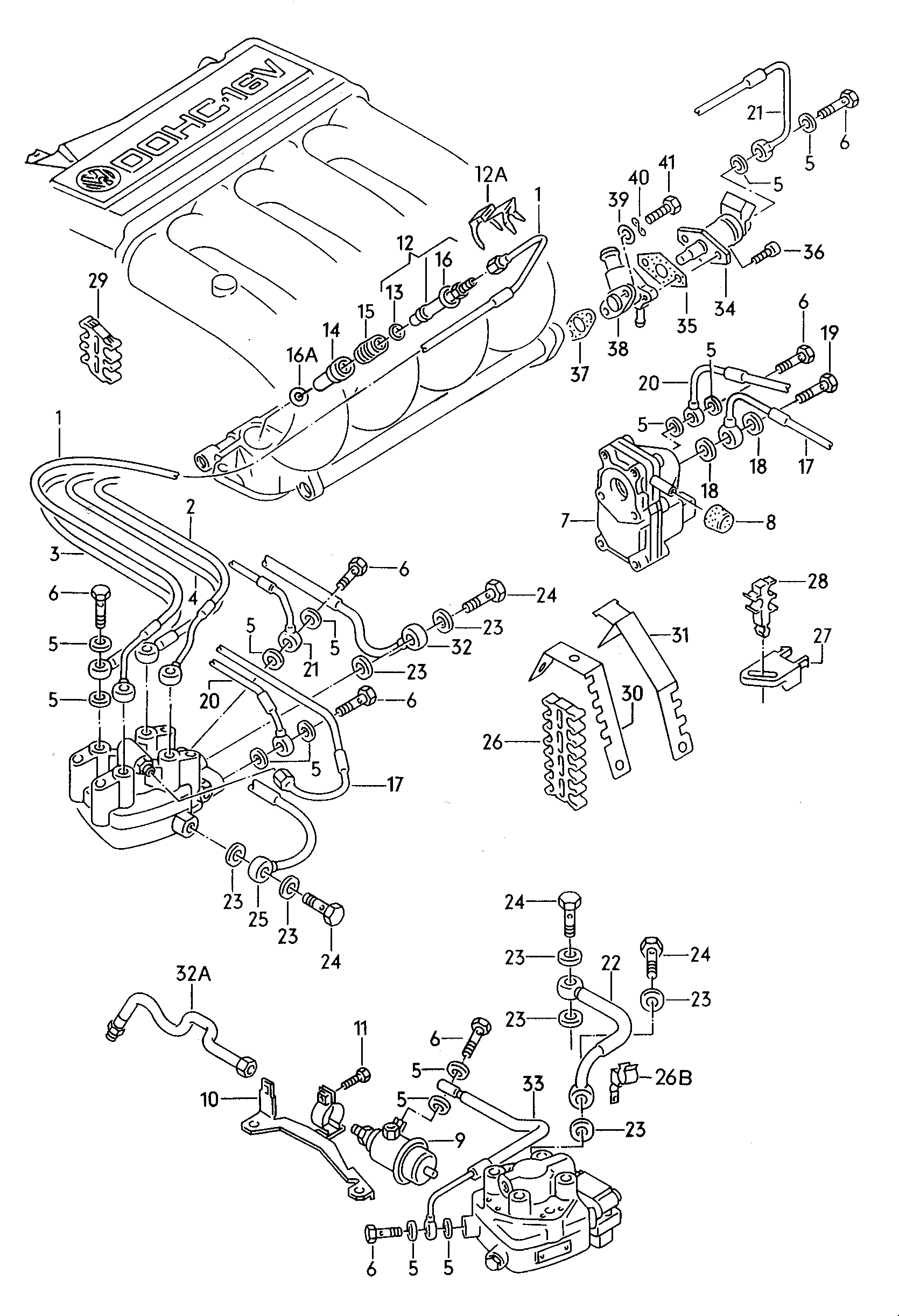

Parts diagram & fitment
12 vehiclesFuel Pipe — locate Fuel Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 2Pipe 027133317D
- 2Pipe 027133317C
- 3Pipe 027133319D
- 3Pipe 027133319C
- 5Seal Ring N0138076
- 6Screw N90183603
- 7Valve 035133403G
- 8Part 063133415
- 9Regulator 034133534G
- 10Bracket 027133573
- 11Bolt N01021226
- 16ASeal Ring 035133557
- 17Pipe 027133655C
- 18Seal Ring N0138115
- 19Screw N0210756
- 20Pipe 027133657C
- 21Pipe 027133660F
- 21Pipe 027133660C
- 22Pipe 027133673
- 23Seal Ring N0138128
- 25Part 037133655
- 25Pipe 051133723C
- 26Bracket 027133689G
- 28Bracket 027133689L
- 30Bracket 027133805G
- 31Bracket 051133805
- 32Pipe 051133699C
- 33Pipe 027133747
- 34Valve 067906171
- 36Bolt N10196103
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| TOLEDO SEAT | 1991-1996 | 32A | 1 | PL |
| Passat | 1991-1993 | 32A | 1 | |
| Corrado | 1989-1995 | 32 | 1 | 9A |
| Passat | 1989-1991 | 32A | 1 | 9A |
| Jetta | 1989-1991 | 32A | 1 | |
| Jetta 89 | 1988-1989 | 32A | 1 | PL |
| Jetta 88 | 1987-1988 | 33, 2, 32A | 1 | |
| Jetta 87 | 1986-1987 | 33, 2, 32A | 1 | |
| Golf/Jetta syn, Rallye | 1985-1991 | 33, 39 | 1 | |
| Jetta 86 | 1985-1986 | 33, 2, 32A | 1 | GX,RD |
| Jetta 85 | 1984-1985 | 33, 2 | 1 | GX,HT |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Golf/Jetta "USA","MEX"89>92 | 1988-1992 | 32A, 36 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Pipe is fitted on: TOLEDO SEAT 1991-1996; Passat 1991-1993; Corrado 1989-1995; Passat 1989-1991; Jetta 1989-1991; Jetta 89 1988-1989; Jetta 88 1987-1988; Jetta 87 1986-1987; Golf/Jetta syn, Rallye 1985-1991; Jetta 86 1985-1986; Jetta 85 1984-1985; Golf/Jetta "USA","MEX"89>92 1988-1992.
