052253513A Warm Air Elbow
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

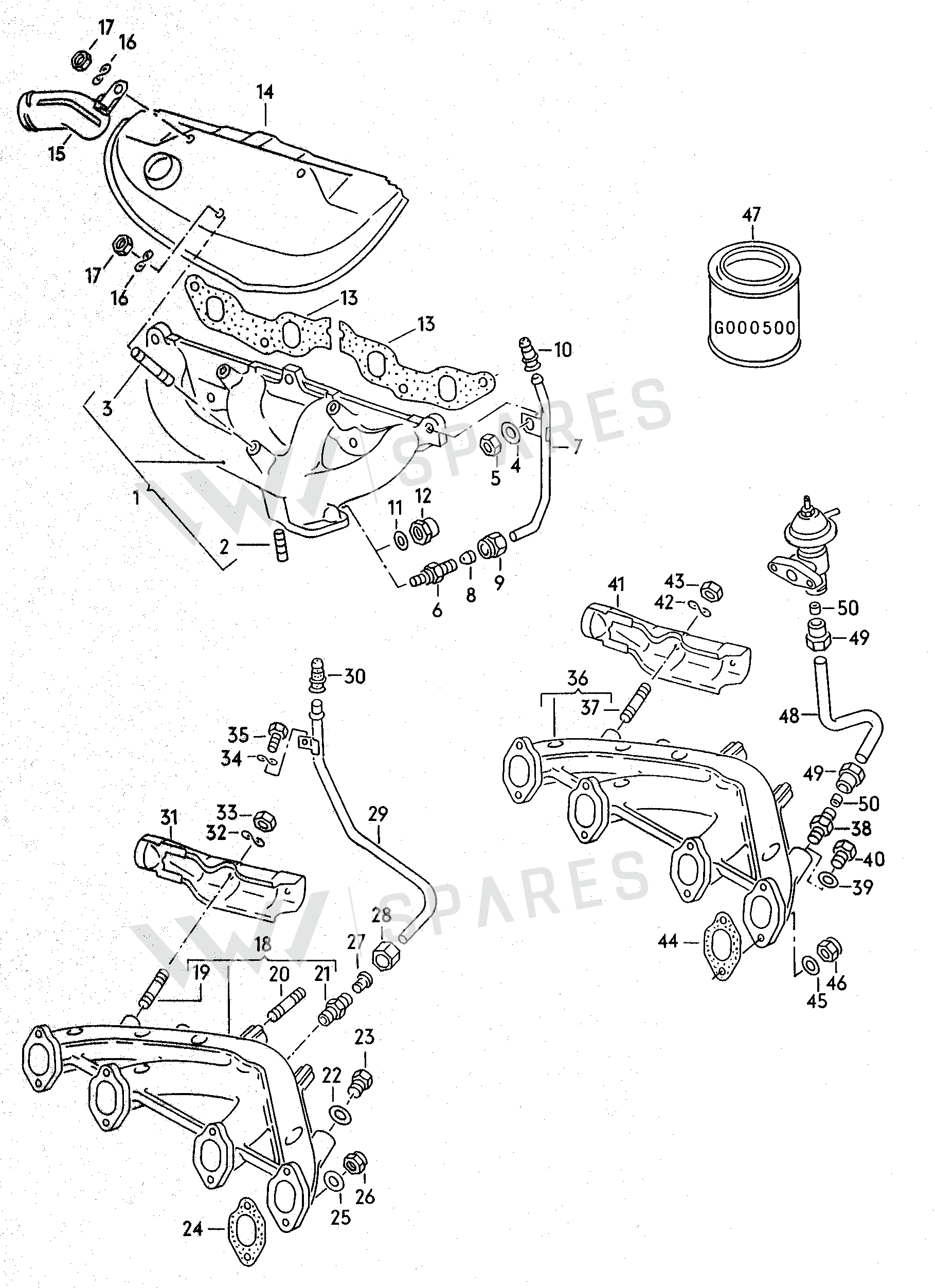

20 vehiclesWarm Air Elbow — locate Warm Air Elbow in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Part 030129591
- 1Manifold 030129587J
- 3Bolt N0145421
- 4Washer N01155811
- 5Ut Hexagon Nut Self-locking Hexagon Nut N90085001
- 6Adapter N0208012
- 8Ring N0208292
- 9Part N0210222
- 10Part 034133335D
- 14Defl Plate 030253043
- 16Washer N0122265
- 17Part N01100636
- 18Manifold 027253031BD
- 18Part 037253031R
- 19Bolt N0445113
- 22Seal Ring N0138149
- 23Plug N90288901
- 24Seal 028129589B
- 31Defl Plate 027253041
- 34Washer N01224110
- 35Bolt N01023911
- 39Seal Ring N0138128
- 40Screw N0160275
- 47Paste G052112A3
- 48Pipe 027131637
- 49Part N0210231
- 50Ring N0208221
Vehicle fitment table20
Europe (15)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Jetta 87 | 1986-1987 | 15 | 1 | GT |
| Jetta 86 | 1985-1986 | 16B | 1 | GT |
| Jetta 85 | 1984-1985 | 25, 16B | 1 | GN |
| POLO/COUPE/DERBY | 1981-1990 | 13 | ||
| Jetta | 1981-1984 | 22 | 1 | |
| Scirocco | 1981-1983 | 22 | 1 | |
| Scirocco | 1981-1981 | 22 | 1 | |
| PASSAT,-VARIANT/2 81 | 1980-1981 | 15 | 1 | |
| Jetta 81 | 1980-1981 | 22 | 1 | |
| Scirocco | 1980-1981 | 22 | 1 | |
| Audi 4000 | 1979-1981 | 15 | 1 | |
| Scirocco | 1978-1980 | 21 | 1 | |
| Dasher | 1977-1980 | 18 | 1 | |
| POLO,DERBY,AUDI 50 | 1974-1981 | 13 | 1 | |
| POLO,DERBY,AUDI 50 | 1974-1981 | 13 | 1 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Quantum | 1981-1984 | 15 | 1 | |
| Rabbit Conv. | 1981-1983 | 22 | 1 | |
| Rabbit Conv. 81 | 1980-1981 | 22 | 1 | |
| Rabbit/Jetta | 1978-1980 | 21 | 1 | |
| Rabbit Conv. | 1978-1980 | 21 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Warm Air Elbow is fitted on: Jetta 87 1986-1987; Jetta 86 1985-1986; Jetta 85 1984-1985; POLO/COUPE/DERBY 1981-1990; Jetta 1981-1984; Scirocco 1981-1983; Scirocco 1981-1981; PASSAT,-VARIANT/2 81 1980-1981; Jetta 81 1980-1981; Scirocco 1980-1981; Audi 4000 1979-1981; Scirocco 1978-1980; Dasher 1977-1980; POLO,DERBY,AUDI 50 1974-1981; Quantum 1981-1984; Rabbit Conv. 1981-1983; Rabbit Conv. 81 1980-1981; Rabbit/Jetta 1978-1980; Rabbit Conv. 1978-1980.
