Target · Diagram
Find this reference above

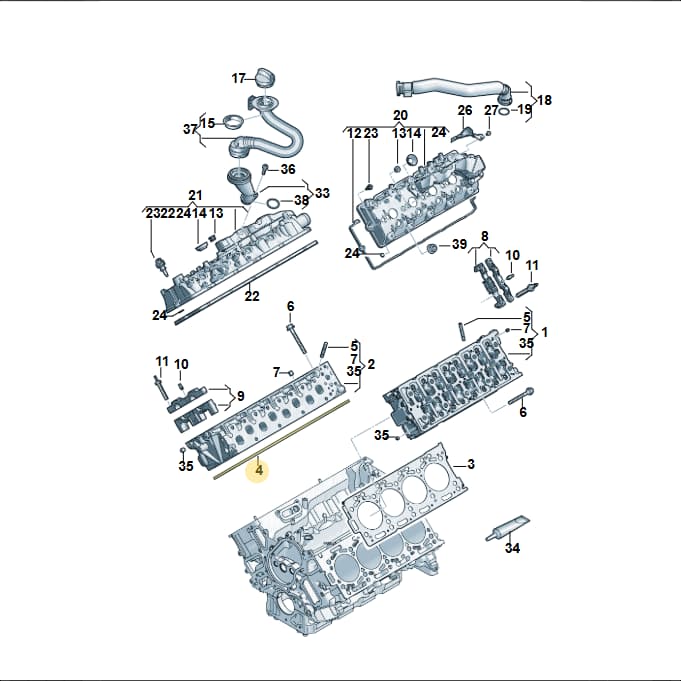

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Engine Cylinder Head Gasket, part number 057103383KR. This critical component seals the cylinder head to the engine block, preventing the leakage of combustion gases, coolant, and oil. Measuring approximately 41.5 cm long and 20 cm wide, this genuine OEM gasket ensures a perfect seal and maintains precise compression, which is vital for engine performance and longevity.
Catalogue entry: SEAL 1,70MM; 3 holes; Cylinders 1-4.
Fitted with: 057103064CL CYL.HEAD, 057103064CP CYL.HEAD, 057103064CR CYL.HEAD, WHT008070 BOLT, N01508213 COLLAR NUT, 057103383KP SEAL, 057103383KQ SEAL, WHT005262A SCREW, 057103484D SEAL, 059103085L SEAL, 059103196 SEAL. RING, 059103196A SEAL. RING.
Technical details
- Category
- Gaskets & Seals
- Customs (HS) code
- 40169300
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 41.5 × 20 × 0.2 cm
- Shipping weight
- 0.31 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Length
- 1.70 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesCylinder Head Gasket (metal) — locate 057103383KR Audi Engine Cylinder Head Gasket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Cylinder Head 057103063DF
- 2Cylinder Head 057103064CR
- 3Sleeve 059103139B
- 4Screw N10283304
- 5Bolt N0444415
- 7Cover 057103959G
- 8Cover 057103960G
- 9Part N0131991
- 10Bolt WHT008070
- 11Collar Nut N01508213
- 12Seal 057103383MJ
- 12Seal 057103383MK
- 12Seal 057103383MH
- 13Seal 057103383KQ
- 13Seal 057103383KP
- 14Screw WHT005262A
- 16Cover 057103469AF
- 17Seal 057103483P
- 18Seal 059103085L
- 19Grommet 04B103631
- 20Seal Ring 059103196A
- 20Seal Ring 059103196
- 21Element 059103831
- 23Cover 057103470AG
- 24Seal 057103484D
- 30Adapter 057103482J
- 31Seal Ring N90308402
- 32Bolt N10124306
- 33Pipe 4M0115301G
- 35Cover 06K103485B
- 35Cover 06K103485A
- 37Seal D176501A1
- 45Plate 057103555F
- 46Bolt N10335206
Compatible / alternative parts(7)
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 13 | 4 |
| touareg | 2017-2023 | 4 | 4 |
| Audi A8L | 2017-2022 | 13 | 4 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 13 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
057103383KR Audi Engine Cylinder Head Gasket | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q7 qu. 3.0 TDI 2015-2019.
