057130300BM Fuel Line
- 057130300AQNot stocked
Dec 2009 - 057130300BGNot stocked
Sep 2012 - 057130300BMThis pageNot stocked
Jul 2014 - 057130300BNCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

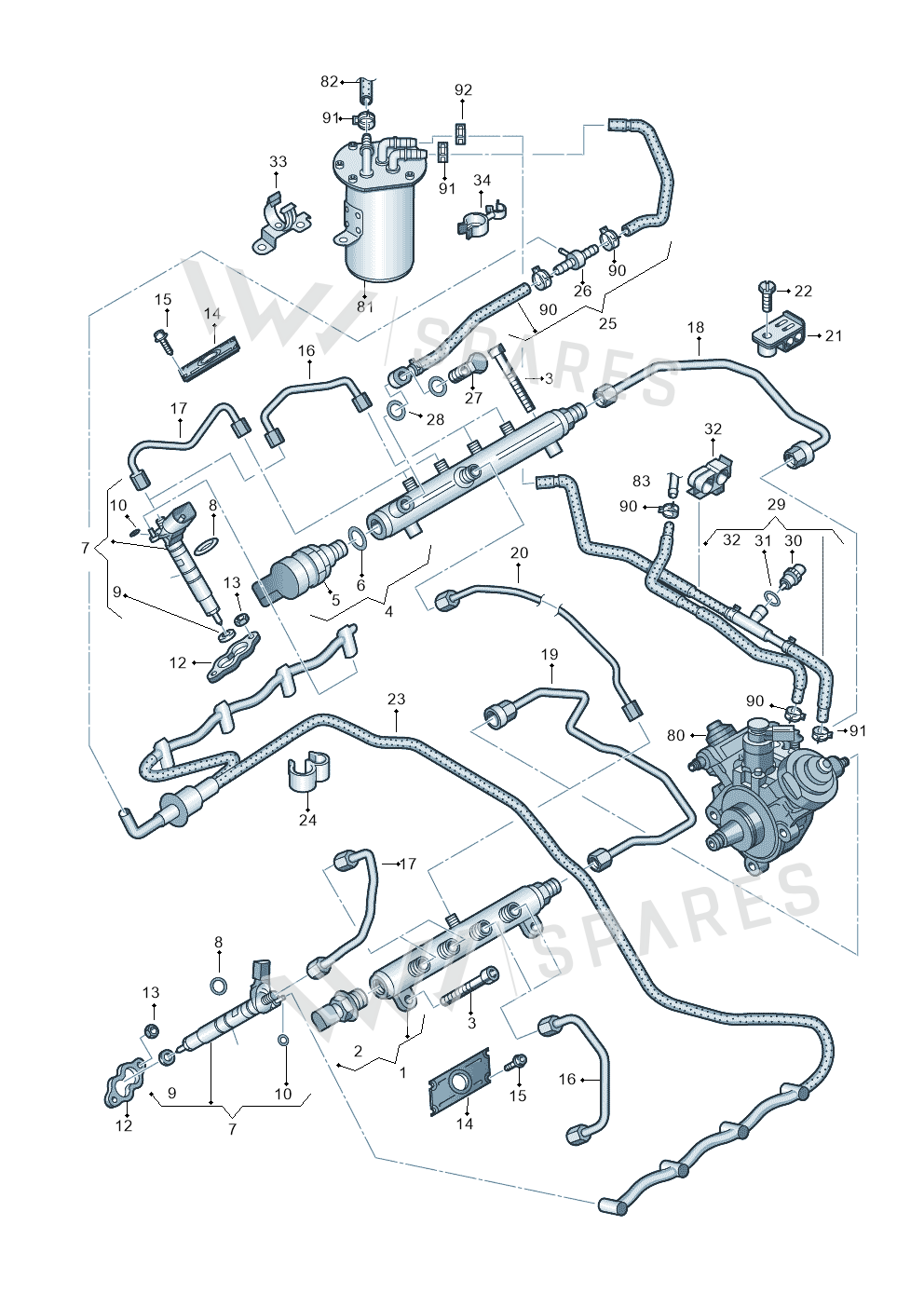

1 vehicleFuel Line — locate Fuel Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1RailLeft057130089Q
- 2Sensor 05A906051
- 3Screw N91104701
- 4RailRight057130090AB
- 4RailRight057130090AC
- 4RailRight057130090T
- 5Valve 057130764AD
- 5Valve 057130764AE
- 5Valve 057130764AB
- 6Seal Ring N90451902
- 7Injector 057130277AM
- 8Seal Ring WHT000884
- 9Seal Ring 059130519B
- 10Seal Ring 059130119
- 12Plate 059130216C
- 13Collar Nut N90446502
- 14Cover 059103113G
- 15Screw N90427502
- 16Pipe 057130241Q
- 17Pipe 057130241R
- 18Fuel Line 057130310N
- 19Fuel Line 057130309AL
- 20Fuel Line 057130309AM
- 21Clip 057130401B
- 22Bolt N10405604
- 23Hose 057130218N
- 23Hose 057130218P
- 24Clip 059131694H
- 26Tpiece 057127561
- 27Screw N0210717
- 27Screw WHT005251A
- 28Seal Ring N0138133
- 29Fuel Line 057130300BG
- 29Fuel Line 057130300BN
- 30Sensor 059919523A
- 31Seal Ring WHT002287C
- 32Bracket 059131694BM
- 33Bracket 057130131C
- 34Bracket 059131694AQ
- 90Clamp N91020301
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi A8L qu. 3.0 TDI | 2009-2014 | 29 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Line is fitted on: Audi A8L qu. 3.0 TDI 2009-2014.
