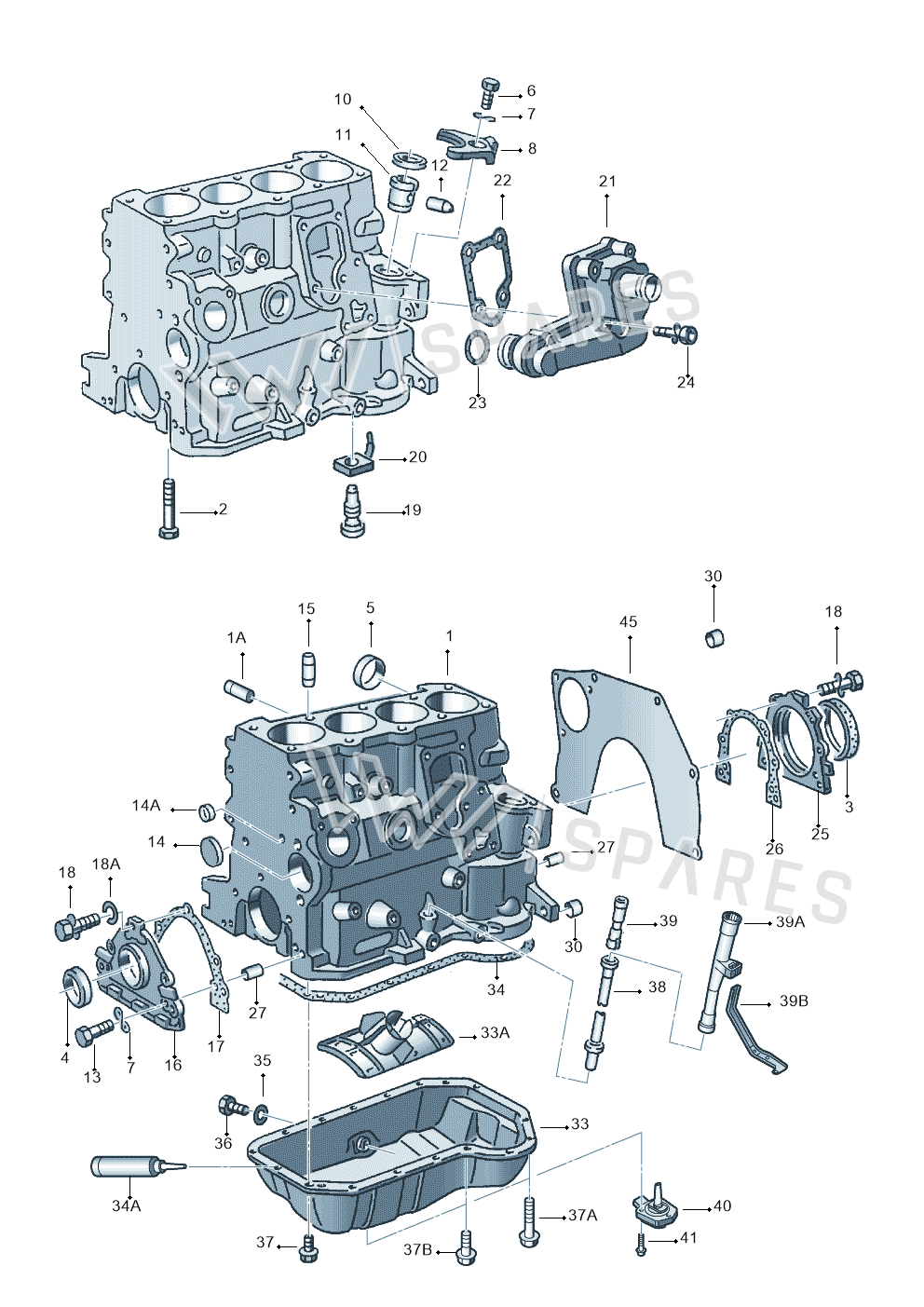

Oil Sump exploded parts diagram — Audi A4 qu. F>8D-W-.. · 1995-1997, position 33
Exploded view
Audi A4 qu. F>8D-W-.. · 1995-1997 · position 33Full diagram ↓
058103598

058103598 Oil Sump

£41.94
£34.66 excl. VAT
Supersession roadforks into 7
  1. 058103598This pageNot stocked
    Jun 1996
  2. 058103603Not stocked
    Apr 2000
  1. D176501A1Current number
  2. N90660601Discontinued
    Mar 2024
  3. N0138493Current number
  4. 058103598BCurrent · not stocked
  5. 03G103707Current number
  6. 038103196Current number
  7. N01470514Current number
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Oil Sump — locate Oil Sump in the official exploded view and explore the surrounding assembly.

Parts in this assembly38
Vehicle fitment table1

Europe (1)

VehicleYearsPos.QtyRemark
Audi A4 qu. F>8D-W-..1995-1997331ADR

Diagrams & fitment data powered by oemdiagrams.com

Oil Sump is fitted on: Audi A4 qu. F>8D-W-.. 1995-1997.
