058109229 Timing Chain
- 058109088Not stocked
Mar 1997 - 058109229This pageNot stocked
May 2005 - 058109229BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

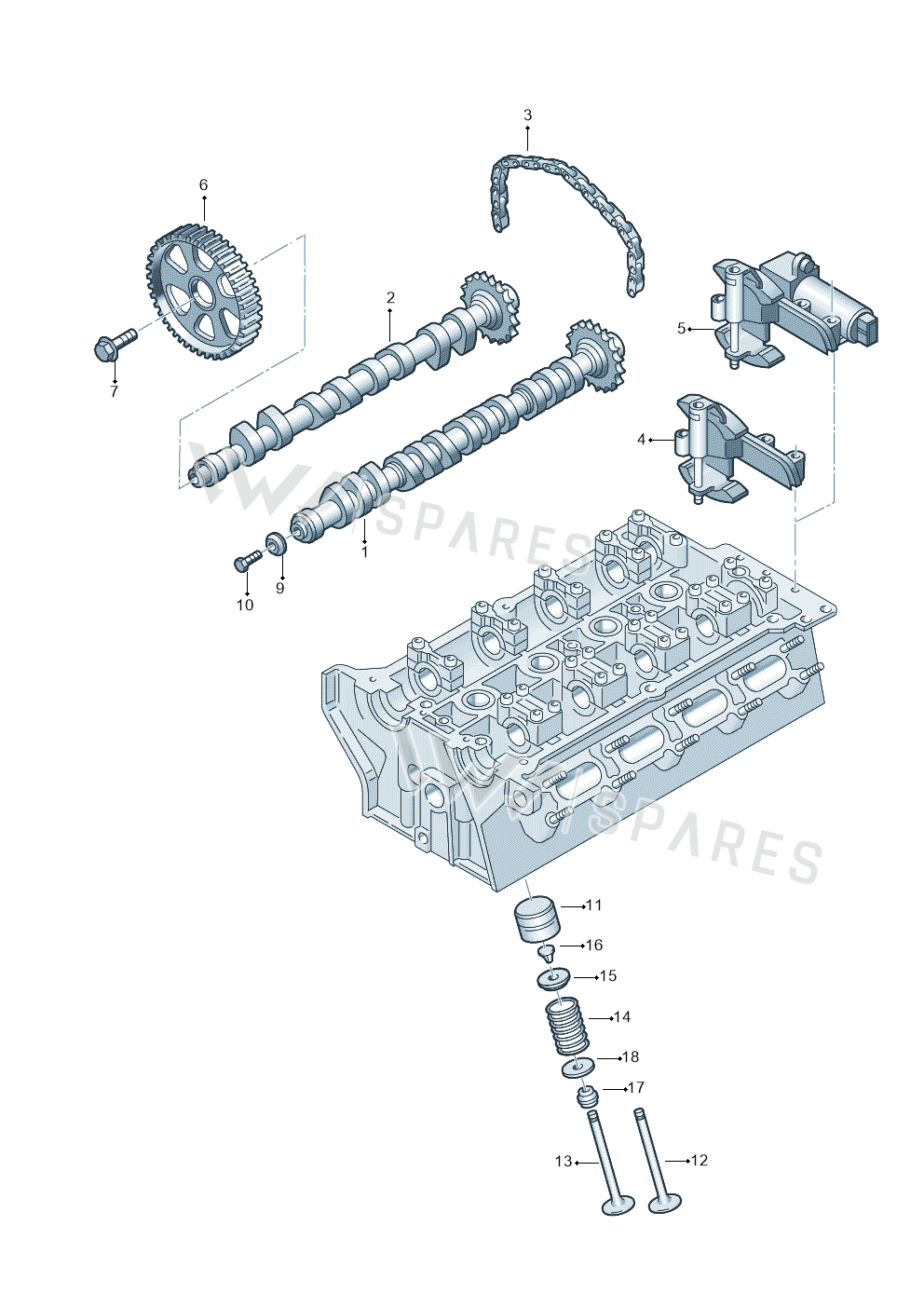

7 vehiclesTiming Chain — locate Timing Chain in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Camshaft 058109021M
- 1Camshaft 058109021B
- 1Camshaft 058109021D
- 1Camshaft 058109021F
- 2Camshaft 058109022D
- 2Camshaft 058109022B
- 3Timing Cha 058109229B
- 4Tensioner 058109217B
- 5Adjuster 058109088E
- 5Adjuster 058109088B
- 6Pulley 06B109111
- 7Bolt 06A109281A
- 10Bolt N01024222
- 11Tappets 058109309F
- 11Tappets 058109309E
- 12Valve 058109601C
- 13Valve 058109611E
- 13Valve 058109611M
- 14Spring 058109633
- 14Spring 078109623B
- 15Springseat 058109641
- 15Springseat 058109641B
- 16Cotter Pin 036109651A
- 17Seal 036109675A
- 18Springseat 06A109629
Vehicle fitment table7
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| AUDI A3/S3/QUATTRO | 1996-2000 | 3 | 1 | APY,AUL |
| Audi A6/Wagon F >4A-W | 1996-1997 | 3 | 1 | |
| Audi A6/Wagon 96 | 1995-1996 | 3 | ||
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | 3 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| AUDI A6L CHINA | 1999-2005 | 3 | 1 | ANQ |
| AUDI 200 CHINA | 1995-1999 | 3 | 1 | |
| JETTA (FAW) 91> | 1991- | 3 |
Diagrams & fitment data powered by oemdiagrams.com
Timing Chain is fitted on: AUDI A3/S3/QUATTRO 1996-2000; Audi A6/Wagon F >4A-W 1996-1997; Audi A6/Wagon 96 1995-1996; Audi A6/S6/Wagon qu. 96 1995-1996; AUDI A6L CHINA 1999-2005; AUDI 200 CHINA 1995-1999; JETTA (FAW) 91> 1991-.
