059103113E End Cap
- 059103113EThis pageNot stocked
Feb 2010 - 059103113FNot stocked
Feb 2012 - 059103113GCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

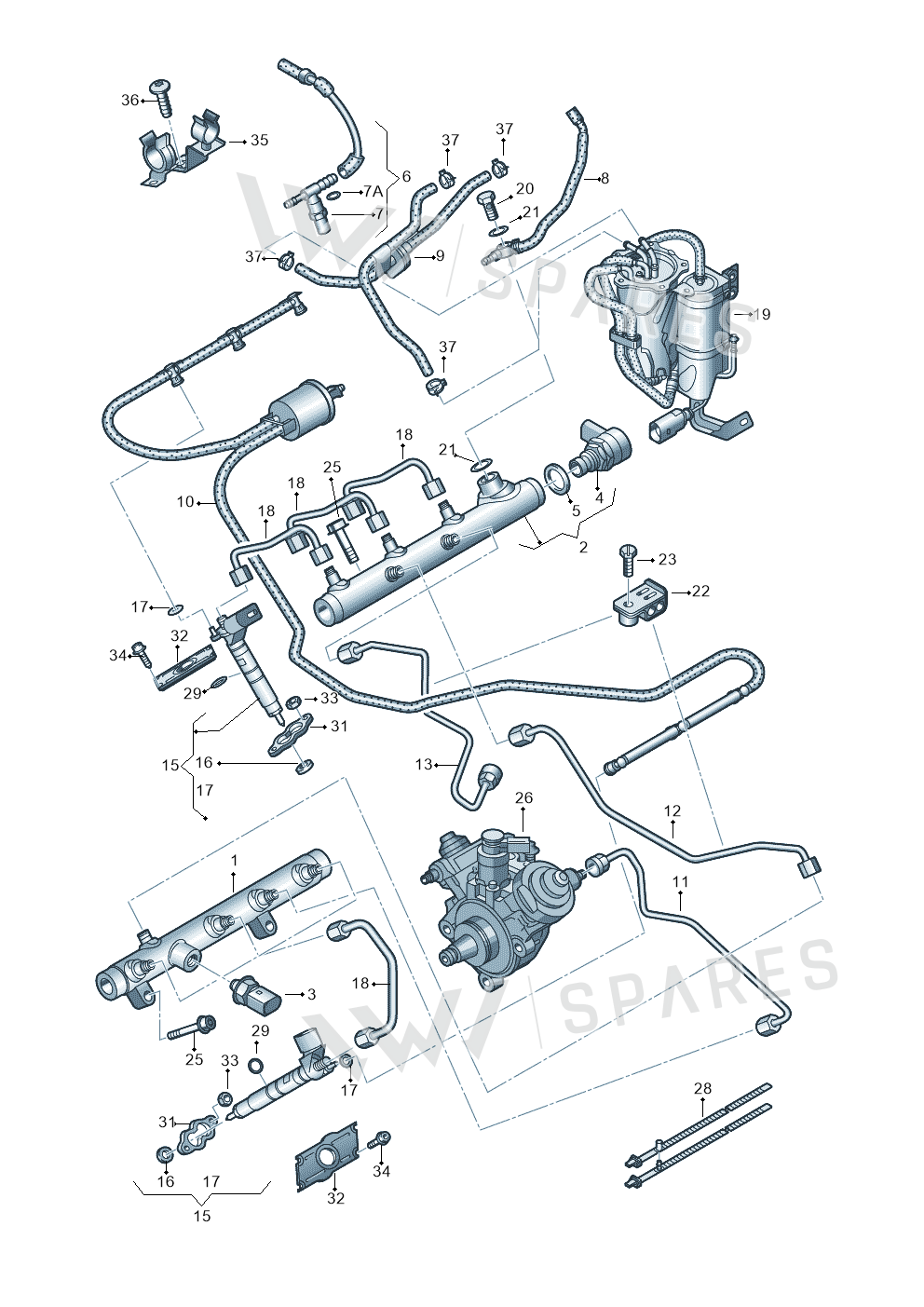

12 vehiclesEnd Cap — locate End Cap in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1RailLeft059130089AH
- 2RailRight059130090AH
- 3Sensor 059130758K
- 4Valve 057130764H
- 5Seal Ring 057130119A
- 6Part 059130299F
- 6Part 059130299P
- 7Sensor 059919523A
- 7ASeal Ring WHT002287C
- 8Part 059130297AC
- 8Part 059130297D
- 9Pipe 059201404
- 10Hose 059130218AF
- 10Hose 059130218Q
- 11Fuel Line 059130309AP
- 12Fuel Line 059130310AJ
- 13Fuel Line 059130312N
- 15Injector 059130277AN
- 16Seal Ring 059130519
- 17Seal Ring 059130119
- 18Pipe 059130241BT
- 20Screw N0210717
- 21Seal Ring N0138133
- 22Bracket 059130401A
- 23Bolt N10451405
- 25Screw N10705901
- 28Binder 4A0820199
- 29Seal Ring WHT000884
- 31Plate 059130216C
- 33Collar Nut N90446502
- 34Screw N90427502
- 35Bracket 059130131F
- 36Bolt N91073301
- 37Clamp N90986501
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2008-2010 | 32 | 6 | |
| Touareg 08> | 2007- | 32 | 6 | |
| PHAETON 08> | 2007- | 32 | 6 | |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 4, 32 | 6 | D1N |
| Audi Q7 07> | 2006- | 4, 32, 27, 41 | 6 | |
| Audi A4/S4/Av./qu. 05> | 2005- | 4, 32 | 6 | D1Q |
| Touareg | 2005-2006 | 32 | 6 | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 4, 32 | 6 | |
| Audi A8/S8/qu. lang | 2003-2007 | 4, 32, 27 | 6 | D1D |
| Phaeton (lang) | 2003-2006 | 32 | 6 | T41 |
| Touareg | 2003-2005 | 32 | 6 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 4 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
End Cap is fitted on: phaeton 4motion 2008-2010; Touareg 08> 2007-; PHAETON 08> 2007-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi Q7 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Touareg 2005-2006; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006; Touareg 2003-2005; AUDI A6L "CN"05> 2005-.
