059103265X Cylinder Head With Valves And Camshaft
- 059103063CNot stocked
Jun 1999 - 059103063DNot stocked
Aug 2004 - 059103265XThis pageNot stocked
Aug 2005
- 059103265FXCurrent · not stocked059103265FXCurrent · not stocked
- Current number057103384ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

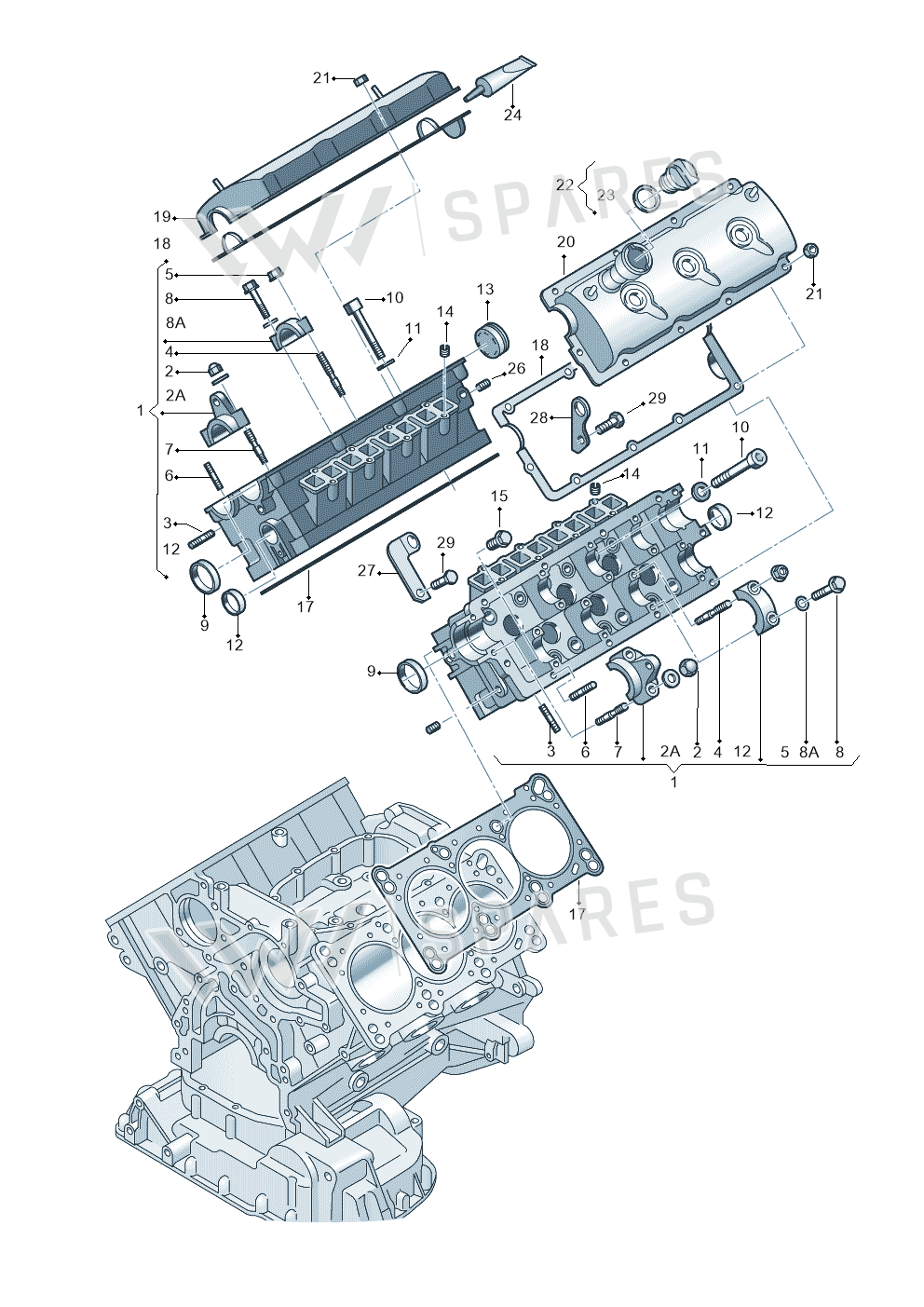

3 vehiclesCylinder Head With Valves And Camshaft — locate Cylinder Head With Valves And Camshaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Cylinder Head 059103063D
- 1Cylinder Head 059103266X
- 1Part 059103266AX
- 2Part 077103492
- 3Bolt N0444087
- 4Bolt 059103397A
- 5Collar Nut N90446502
- 6Bolt N10087701
- 7Bolt 030103397A
- 8Bolt N0102213
- 8AWasher N01152423
- 9Seal 068103085E
- 10Screw 059103384
- 11Washer 059103377
- 12Cover N0119082
- 13Cover 078103113E
- 14Sleeve 059103139
- 15Valve 078103363P
- 17Seal 059103383T
- 17Seal 059103383BR
- 17Seal 059103383BS
- 19Cover 059103470H
- 20Cover 059103469AA
- 21Collar Nut N0150825
- 22Cover 06B103485B
- 23Seal 06A103483D
- 24Sealant AMV17400401
- 26Screw N10283303
- 29Bolt N10063202
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT/4MOTION/W8 | 2002-2005 | 1 | 1 | AKN | T6T,0GE,0G1,0G2,0G7 |
| Audi A8 | 1996-1998 | 1 | 1 | ||
| Audi A8 qu. | 1996-1998 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Head With Valves And Camshaft is fitted on: PASSAT/4MOTION/W8 2002-2005; Audi A8 1996-1998; Audi A8 qu. 1996-1998.
