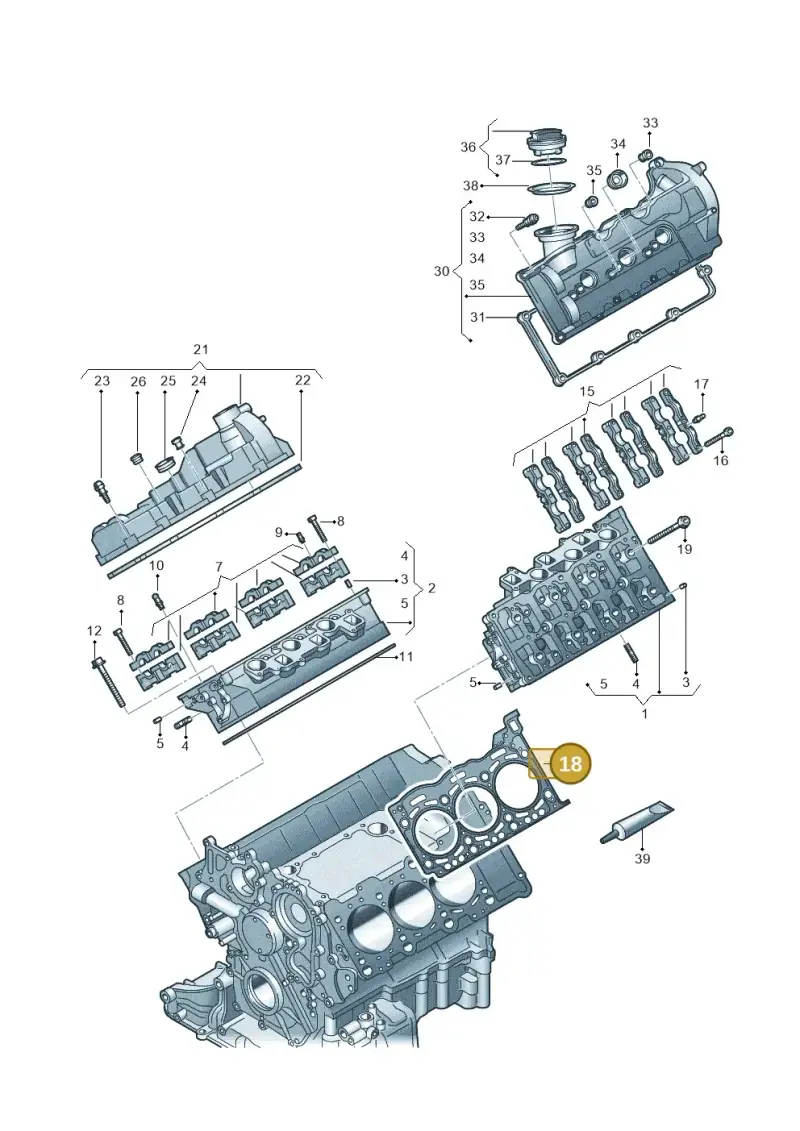

Number 18 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Cylinder Head Gasket, part number 059103383JP. This metal gasket is designed to create a seal between the engine block and the cylinder head, preventing combustion gases from escaping and coolant/oil from entering the combustion chambers. It is located between the engine block and the cylinder head. This gasket is constructed from metal for enhanced durability and sealing performance. Genuine OEM gaskets are essential for maintaining engine compression and preventing leaks, ensuring long-term engine health and performance.
Catalogue entry: SEAL 1,58MM CLAA,CDUC,; cylinders 4-6 CKVB; 1 hole.
Fitted with: 059103383NK SEAL, 059103383JQ SEAL, 059103383NL SEAL, 059103383JR SEAL, 059103383NM SEAL, 059103383JL SEAL, 059103383NG SEAL, 059103383JM SEAL, 059103383NH SEAL, 059103383JN SEAL, 059103383NJ SEAL, WHT005262A SCREW.
Technical details
- Category
- Airbags & Safety
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 31.2 × 19 × 0.3 cm
- Shipping weight
- 0.51 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Length
- 1.58 mm
Equipment codes
- TF1
- TH1
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

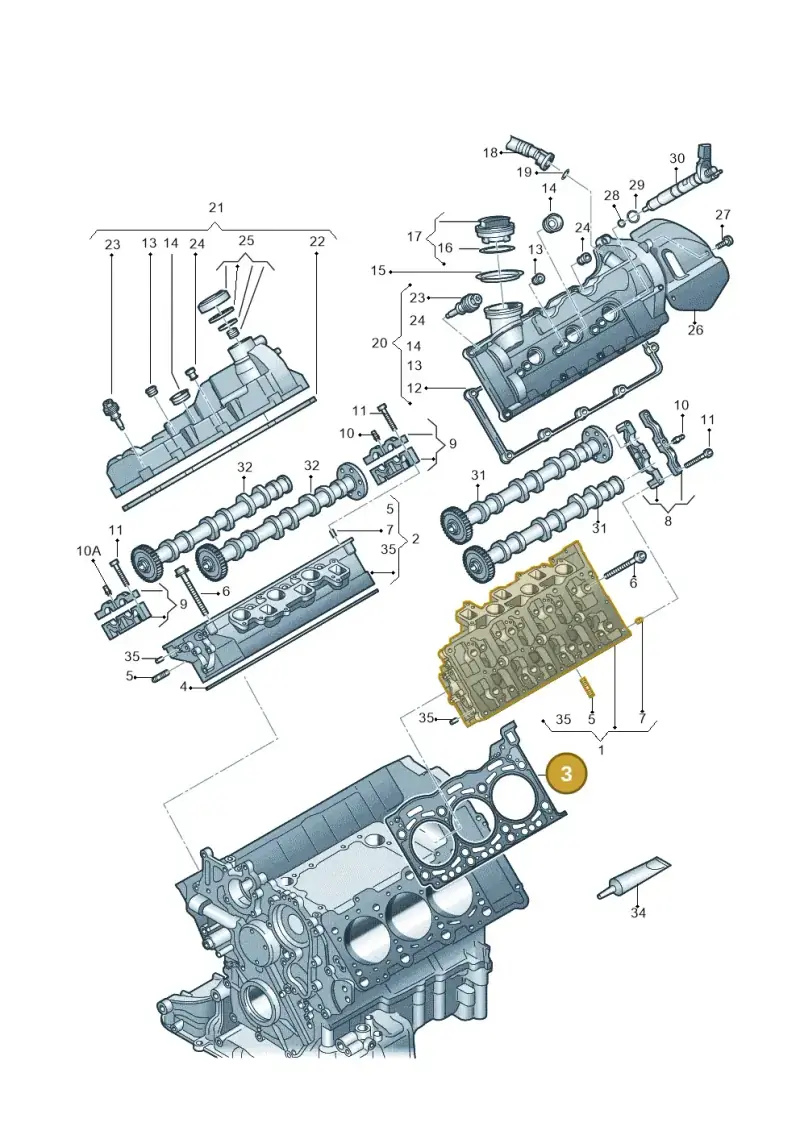

Parts diagram & fitment
16 vehiclesCylinder Head Gasket (metal) — locate 059103383JP Volkswagen Cylinder Head Gasket | Metal in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Cylinder Head 059103263X
- 1Cylinder Head 059103263
- 2Cylinder Head 059103264X
- 2Cylinder Head 059103264
- 3Seal 059103383JQ
- 3Seal 059103383JR
- 4Seal 059103383JM
- 4Seal 059103383JN
- 4Seal 059103383JL
- 5Bolt N0444087
- 6Screw WHT005262
- 7Sleeve 059103139A
- 8Cover 059103959B
- 9Cover 059103960B
- 10Ball Joint 059103164F
- 10ABall Joint 059103164E
- 11Bolt N10616501
- 12Seal 059103483T
- 13Grommet 059103631D
- 14Seal 059103085L
- 15Seal Ring 057133287C
- 16Seal 036115111B
- 17Cover 06C103485N
- 20Cover 059103469BD
- 21Cover 059103470AS
- 22Seal 059103484
- 23Bolt 06J103831
- 24Decoup Ele 057103831B
- 34Seal D174003A2
- 35Screw N10283304
Compatible / alternative parts(12)
Vehicle fitment table16
Europe (16)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A7 Sportback | 2014-2018 | 3 | CTCB,CPNB | TF1 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 3 | CTCB,CPNB | TF1 | |
| Touareg BlueMotion | 2014-2018 | 18 | X | ||
| Audi A8L qu. 3.0 TDI | 2013-2018 | 3 | |||
| Audi A6 Av. qu. 3.0 | 2012-2018 | 3 | CKVB | TF1 | |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 3 | CTBC,CTBA | TF1 | |
| touareg | 2012-2014 | 18 | X | TF1 | |
| Audi A5 Sportback | 2011-2017 | 3 | 1 | TF1 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 3 | 1 | TF1 | |
| audi a4 av. 2.0 tdi | 2011-2015 | 3 | 1 | TF1 | |
| Audi A7 Sportback | 2010-2015 | 3 | CLAA,CKVB, | CD | |
| audi a6 2.0 tdi | 2010-2015 | 3 | CLAA,CKVB, | CD | |
| touareg | 2010-2012 | 18 | 1 | TF1 | |
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 3 | 1 | TF1 | |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 3 | Gl | ||
| Audi A4 Av. Allroad | 2008-2016 | 3 | Gl |
Diagrams & fitment data powered by oemdiagrams.com
059103383JP Volkswagen Cylinder Head Gasket | Metal is fitted on: Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Touareg BlueMotion 2014-2018; Audi A8L qu. 3.0 TDI 2013-2018; Audi A6 Av. qu. 3.0 2012-2018; Audi Q5 qu. 2.0 TDI 2012-2017; touareg 2012-2014; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; touareg 2010-2012; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A4 Av. Allroad 2008-2016.
