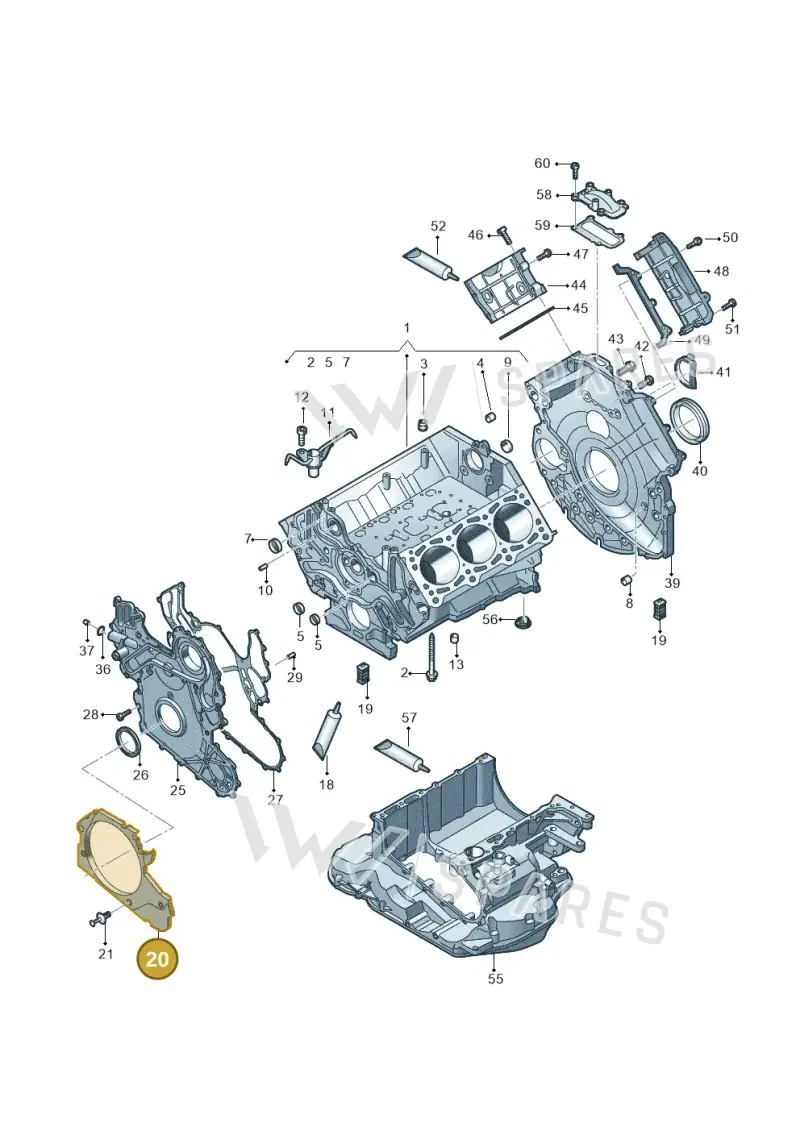

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Engine Sealing Flange Noise Insulation, part number 059103502L. This specialized component is designed to provide both a seal for engine components and effective noise damping, contributing to a quieter engine operation. It is positioned on the engine block, covering a sealing flange. With dimensions of approximately 0.385m length and 0.265m width, and weighing 0.238 kg, it is precisely shaped for its application. Using a genuine OEM damping part ensures optimal fitment and material properties for effective noise reduction and long-term durability, maintaining factory acoustic levels.
Technical details
- Category
- Gaskets & Seals
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 38.5 × 26.5 × 5 cm
- Shipping weight
- 0.24 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

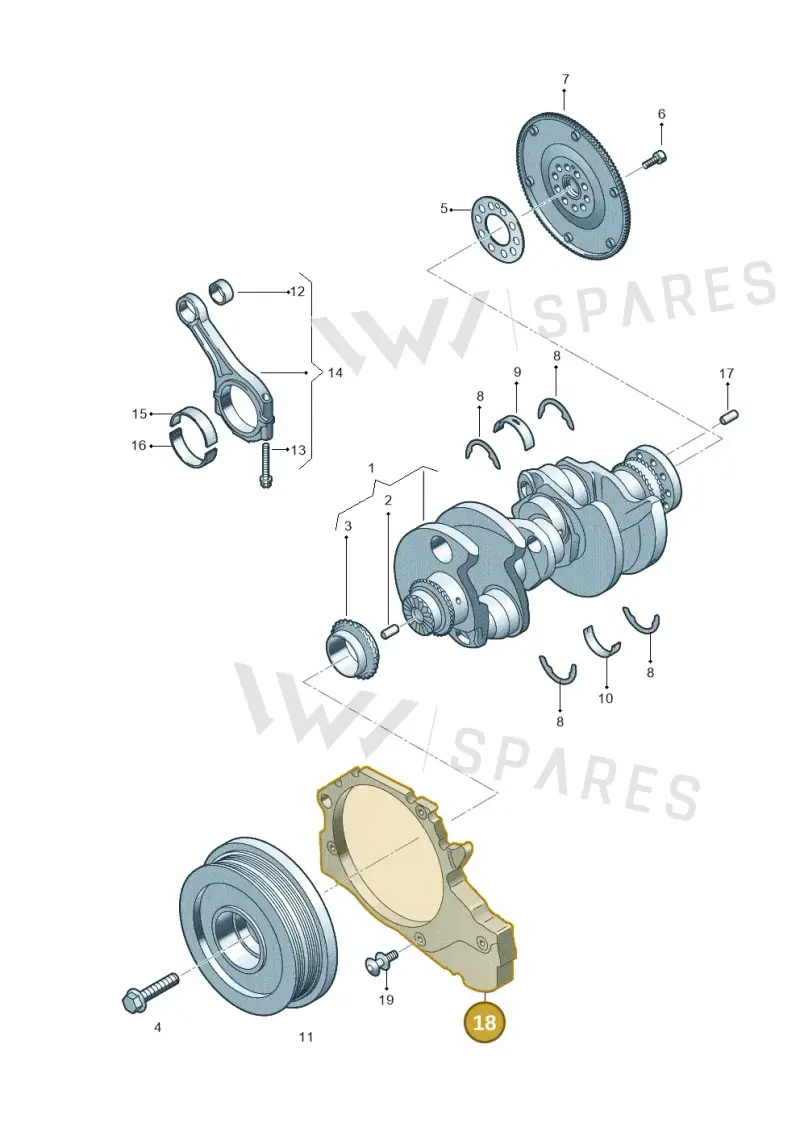

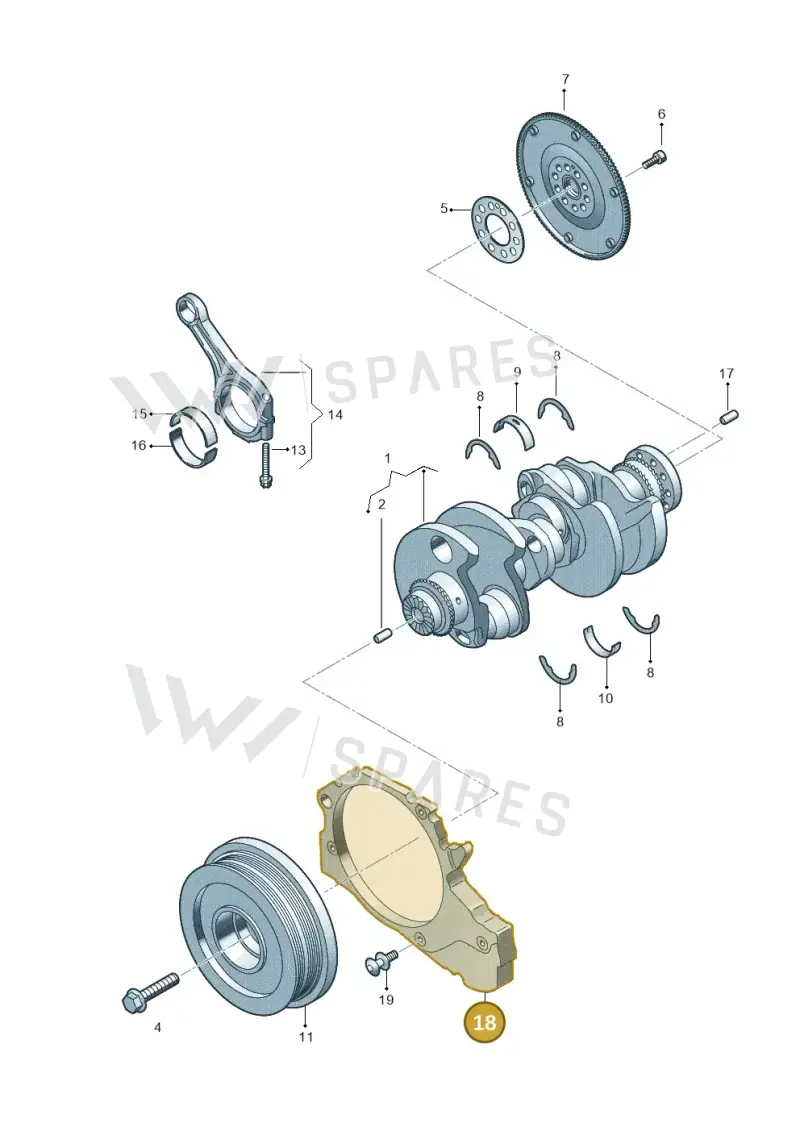

Parts diagram & fitment
10 vehiclesNoise Insulation — locate 059103502L Audi Engine Sealing Flange Noise Insulation | OEM Damping in the official exploded view and explore the surrounding assembly.
Superseded by 059103502N — the later replacement part.
This part is marked discontinued by the manufacturer (since 2022-06-01); contact us to check current availability.
Parts in this assembly43
- 1Spring Rivet N91158501
- 2Insulation 059103502N
- 3Seal 059103161AT
- 4Flange 059103153CQ
- 4Flange 059103153CT
- 5Seal 06M103051B
- 6Bolt N10700201
- 7Seal Ring N90851402
- 8Sleeve 059103826B
- 9Sensor 079919525C
- 10Bolt N10451405
- 11Seal Ring WHT002287C
- 12Part N10667801
- 13Sleeve 012301153G
- 14Seal 059103147S
- 15Cover 059103708A
- 15Cover 059103708C
- 15Cover 059103708E
- 16Screw N91021502
- 17Cover 059109122AK
- 18Bolt N10156207
- 19Bolt N10124306
- 20Part 059109092N
- 21Flange 059103171DN
- 21Flange 059103171DT
- 21Flange 059103171EC
- 22Bolt N10745301
- 23Part 059109091N
- 24Cover 059109122AL
- 25Seal 059103051K
- 26Screw N91076601
- 27Sleeve 022103139B
- 28Sleeve 012301153H
- 29Seal 057103147A
- 30Sender 057906433B
- 30Sender 057906433C
- 31Bolt N10405604
- 32Seal D176501A1
- 33Line 059103209N
- 33Line 059103209R
- 35Gask Set 059198001B
- 36Seal Ring WHT004963
- 37Seal Ring WHT004647
Compatible / alternative parts(3)
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 2, 18 | 1 | |
| audi a6 2.0 | 2018- | 2, 18 | 1 | |
| Audi A7 Sportback | 2018- | 2, 18 | 1 | |
| touareg | 2017-2023 | 20 | 1 | DENA,DEND |
| Audi A8L | 2017-2022 | 2, 18 | 1 | |
| Audi Q5 | 2016-2020 | 2, 18 | 1 | |
| Audi A5 Sportback | 2016-2020 | 2, 18 | 1 | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 18 | 1 | |
| audi a4 2.0 | 2015-2019 | 2, 18 | 1 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 2, 18 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
059103502L Audi Engine Sealing Flange Noise Insulation | OEM Damping is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019.
