059105101BC Crankshaft
- 059105101ABNot stocked
Apr 2007 - 059105101AENot stocked
Dec 2007 - 059105101AHNot stocked
Dec 2010 - 059105101BCThis pageNot stocked
Oct 2013 - 059105101CBCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

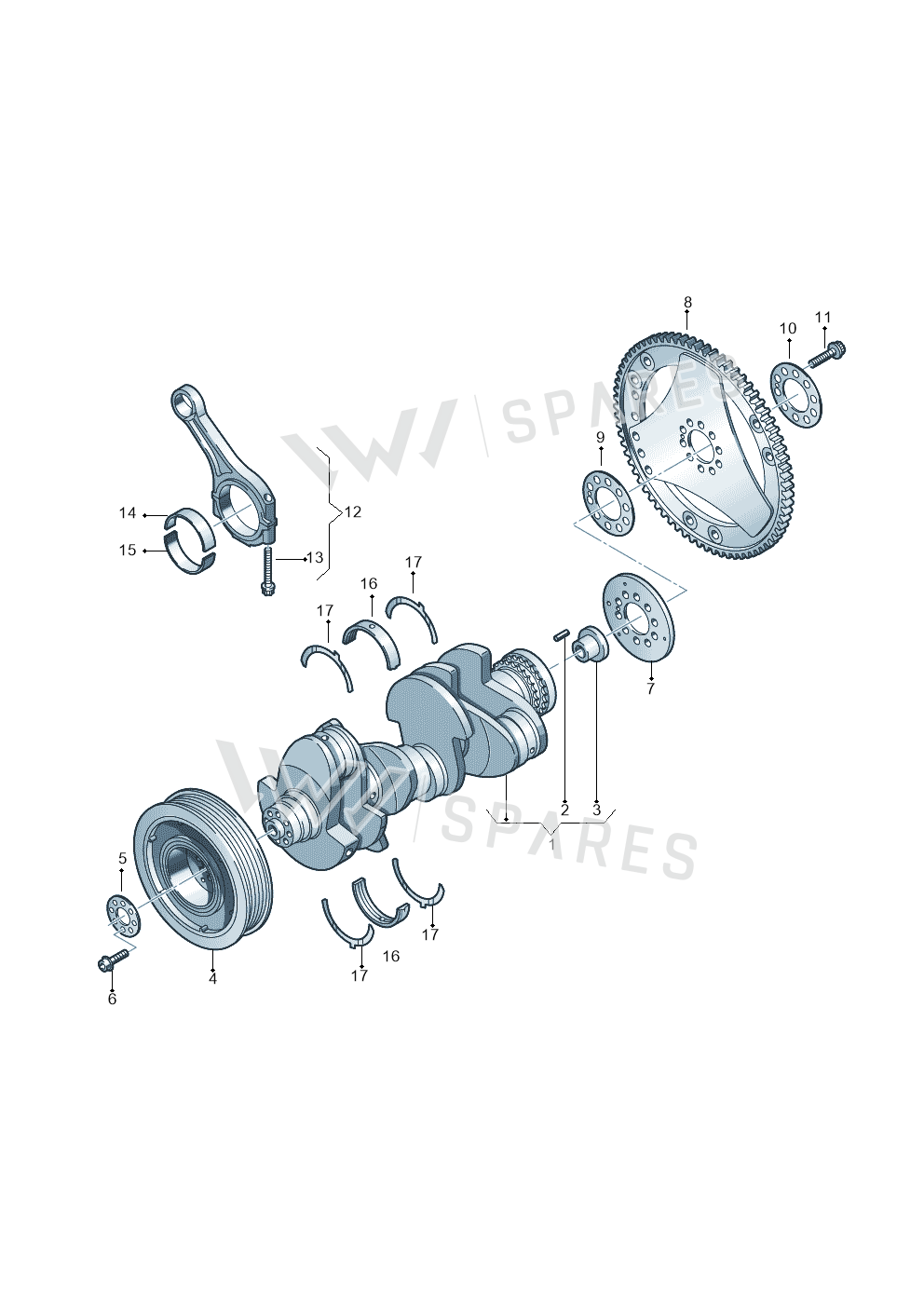

11 vehiclesCrankshaft — locate Crankshaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Crankshaft 059105101BH
- 2Part N0131991
- 2Cylinder Pin N0131994
- 3Bush 059105329A
- 4Pulley 059105251BB
- 4Pulley 059105251AT
- 4Pulley 059105251BN
- 4Pulley 059105251BQ
- 5Shim WHT003351
- 6Screw N91005902
- 7Rotor 059105189K
- 8Clutch Pla 059105323BL
- 8Clutch Pla 059105323BQ
- 9Shim 059105303E
- 11Screw N90539801
- 12Con Rod 059198401F
- 12Con Rod 059198401H
- 12Con Rod 059198401J
- 13Bolt 077105425E
- 14Bearing 059105701R
- 14Bearing 059105701DB
- 15Bearing 059105701Q
- 15Bearing 059105701DA
- 16Brg Shell 059105561Q
- 16Brg Shell 059105591R
- 17Thrust Pla 078198421
Vehicle fitment table11
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| touareg | 2010-2012 | 1 | ||
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 1 | 1 | |
| Audi A4 Av. Allroad | 2008-2016 | 1 | 1 | D50 |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 1 | 1 | |
| Audi A5 Cabrio 2.0 | 2008-2012 | 1 | 1 | |
| Audi A6 2.7 TDI | 2008-2011 | 1 | 1 | |
| Audi A5/S5 Coupe 08> | 2007- | 1 | 1 | |
| Audi A8/S8/qu. lang 08> | 2007- | 1 | ||
| AUDI A4 08> | 2007- | 1 | 1 | 0G |
| AUDI A6 QU.ALLROAD 07> | 2006- | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| MARINE-MOTOR 02> | 2002- | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Crankshaft is fitted on: touareg 2010-2012; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A4 Av. Allroad 2008-2016; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; AUDI A6 QU.ALLROAD 07> 2006-; MARINE-MOTOR 02> 2002-.
