059109105C Toothed Belt Pulley
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

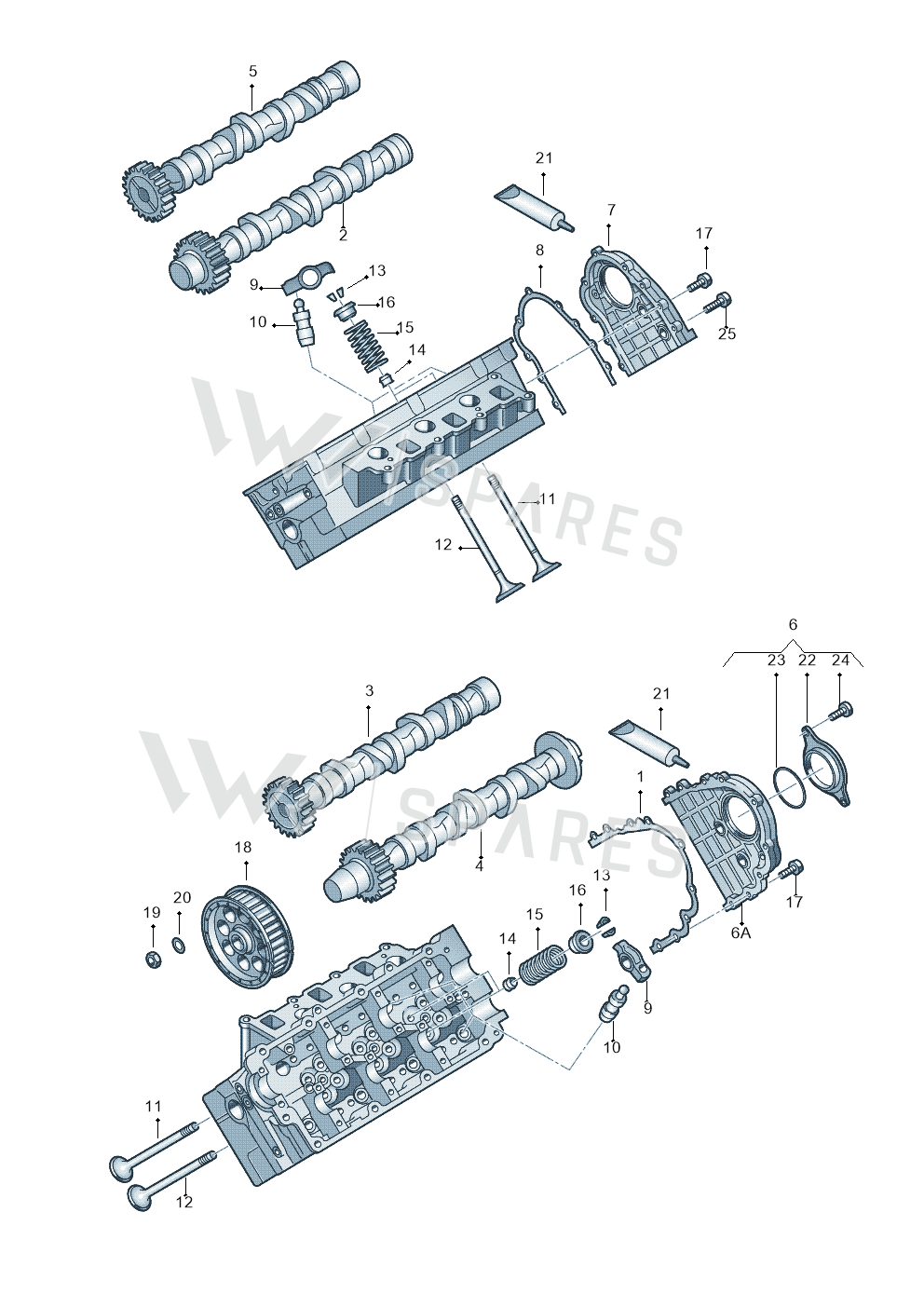

12 vehiclesToothed Belt Pulley — locate Toothed Belt Pulley in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Seal 059109091A
- 1Seal 059109091C
- 2Camshaft 059109022BE
- 3Camshaft 059109009BL
- 4Camshaft 059109021DP
- 4Camshaft 059109021DS
- 5Camshaft 059109009DC
- 6Cover 059109122G
- 6Cover 059109122H
- 7Cover 059109130E
- 8Seal 059109092A
- 9Roller Roc 059109417J
- 10Equal Element 03L109521
- 11Valve 059109601G
- 12Valve 059109611K
- 13Cotter Pin 036109651
- 14Seal 036109675A
- 15Spring 059109633J
- 16Springseat 059109641K
- 17Bolt N10124306
- 18Pulley 059109105G
- 19Collar Nut WHT002244
- 19Bolt N90256202
- 20Washer N90971702
- 21Seal D174003A2
- 21Seal D176501A1
- 22Cover 059109153D
- 22Cover 059109153F
- 23Seal Ring N91077901
- 23Seal Ring WHT001801
- 24Bolt N10029206
- 25Bolt N10156206
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A5/S5 Coupe 08> | 2007- | 18 | 1 | D50 | |
| Audi A8/S8/qu. lang 08> | 2007- | 25 | 1 | D1D | |
| AUDI A4 08> | 2007- | 18 | 1 | PR:7MB,0GZ | |
| Touareg 08> | 2007- | 2 | 1 | BKS,BUN | D1T |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 25 | 1 | D1N | |
| Audi Q7 07> | 2006- | 25 | 1 | ||
| AUDI A6 QU.ALLROAD 07> | 2006- | 25 | 1 | ||
| Audi A4/S4/Av./qu. 05> | 2005- | 18, 25 | 1 | D1D,D1Q | |
| Touareg | 2005-2006 | 2 | 1 | D1T,D1V | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 25 | 1 | D1D,D1N,D1T,D1V,D1W | |
| Audi A8/S8/qu. lang | 2003-2007 | 25 | 1 | D1D,D1V |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| MARINE-MOTOR 02> | 2002- | 2 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt Pulley is fitted on: Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Touareg 08> 2007-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Touareg 2005-2006; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; MARINE-MOTOR 02> 2002-.
