059109106C Timing Chain
- 059109106CThis pageNot stocked
Oct 2021 - 059109106ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

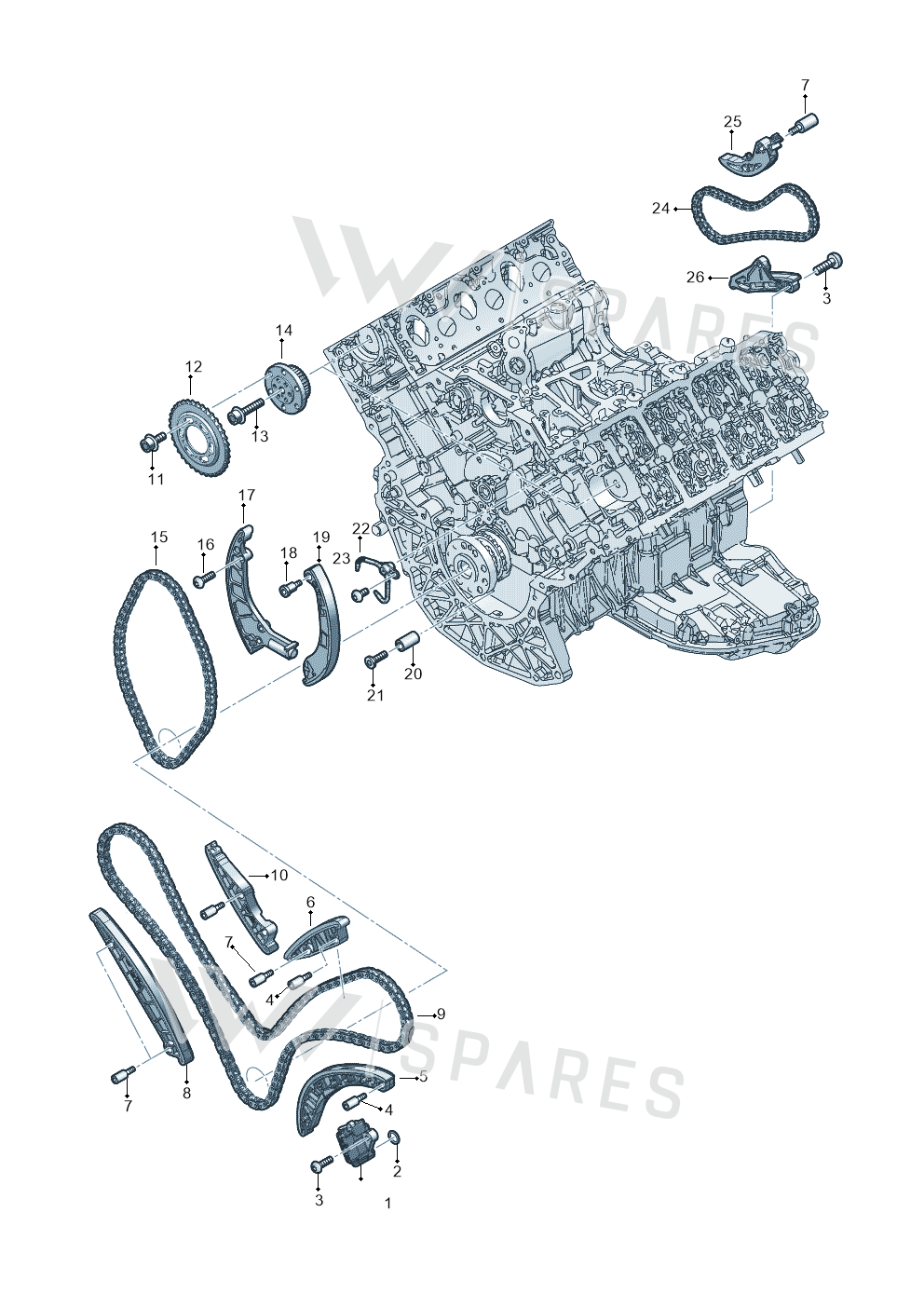

14 vehiclesTiming Chain — locate Timing Chain in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Tensioner 059109467AP
- 1Tensioner 059109467BB
- 2Seal Ring WHT009308
- 3Bolt N10124306
- 4Part 059109426T
- 5Seatrunner 059109510Q
- 6Seatrunner 059109514N
- 7Part 059109426S
- 8Seatrunner 059109469AB
- 9Timing Cha 059109229AJ
- 9Timing Cha 059109229AK
- 10Seatrunner 059109513N
- 11Screw N91052201
- 12Chn Sprckt 059109116G
- 13Screw N10672001
- 14Wheel 059109171S
- 15Timing Cha 059109252G
- 15Timing Cha 059109252H
- 16Bolt N10156206
- 17Tensioner 059109507AL
- 17Tensioner 059109507AN
- 18Part 059109426AA
- 19Seatrunner 059109509L
- 20Bush 059109135D
- 21Bolt N10744301
- 22Vent 059109429D
- 23Screw N10170302
- 24Timing Cha 059109106E
- 25Tensioner 059109467AF
- 26Seatrunner 059109538R
Vehicle fitment table14
Europe (14)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 24, 36 | 1 | |
| audi a6 2.0 | 2018- | 24, 36 | 1 | |
| Audi A7 Sportback | 2018- | 24, 36 | 1 | |
| touareg | 2017-2023 | 29 | 1 | |
| Audi A8L | 2017-2022 | 24, 36 | 1 | |
| Amarok twin cab | 2016-2022 | 29 | 1 | |
| Audi Q5 | 2016-2020 | 24, 36 | 1 | |
| Audi A5 Sportback | 2016-2020 | 24, 29, 36 | 1 | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 29, 36 | 1 | |
| audi a4 2.0 | 2015-2019 | 24, 29, 36 | 1 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 24, 29, 36 | 1 | |
| Audi A7 Sportback | 2014-2018 | 29 | 1 | TS8 |
| audi a6 qu. 3.0 tdi | 2014-2018 | 29 | 1 | TS8 |
| Audi A6 Av. qu. 3.0 | 2012-2018 | 29 | 1 | TS8 |
Diagrams & fitment data powered by oemdiagrams.com
Timing Chain is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; touareg 2017-2023; Audi A8L 2017-2022; Amarok twin cab 2016-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A6 Av. qu. 3.0 2012-2018.
