059109229S Timing Chain
- 059109229SThis pageNot stocked
Jun 2012 - 059109229AACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

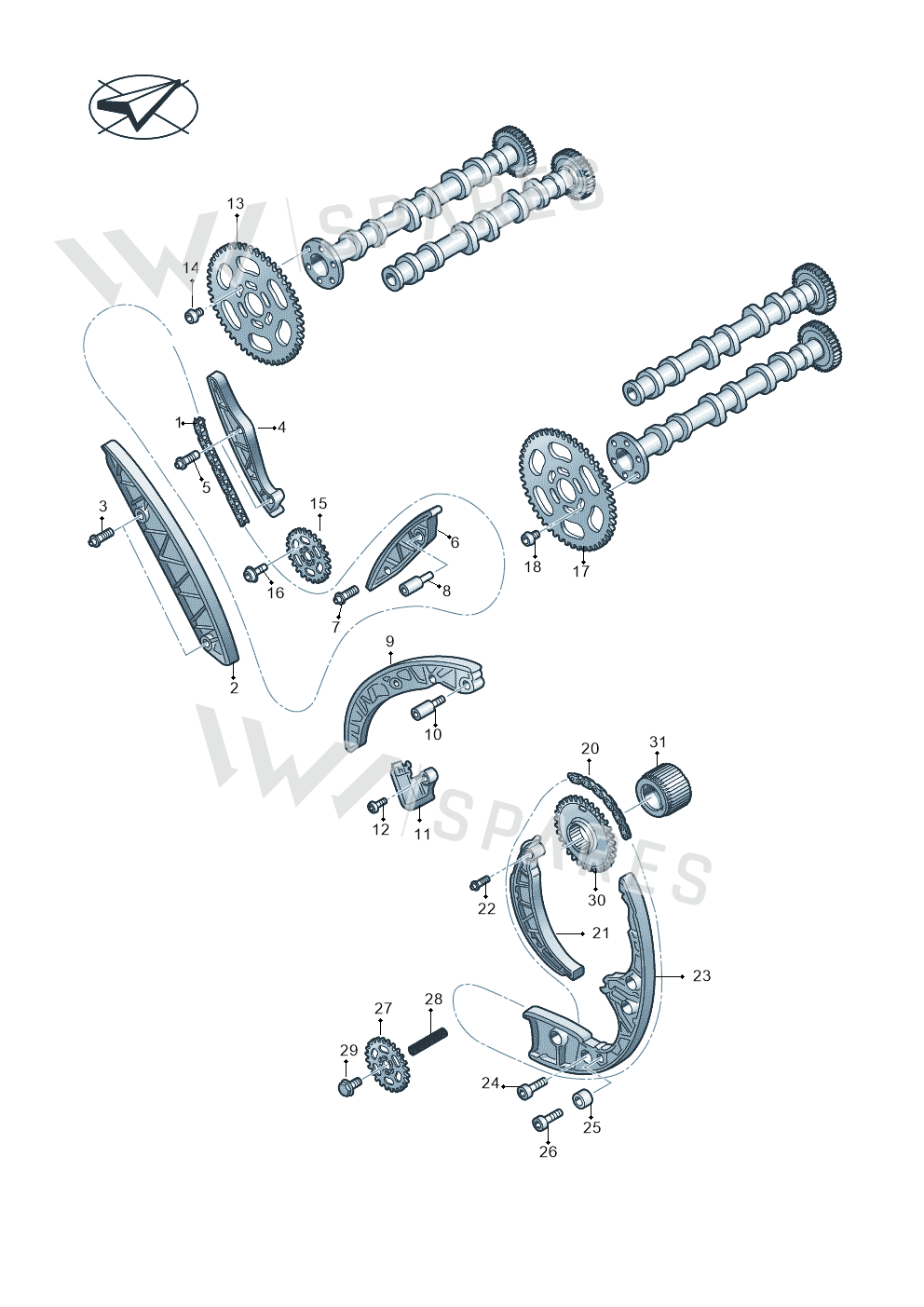

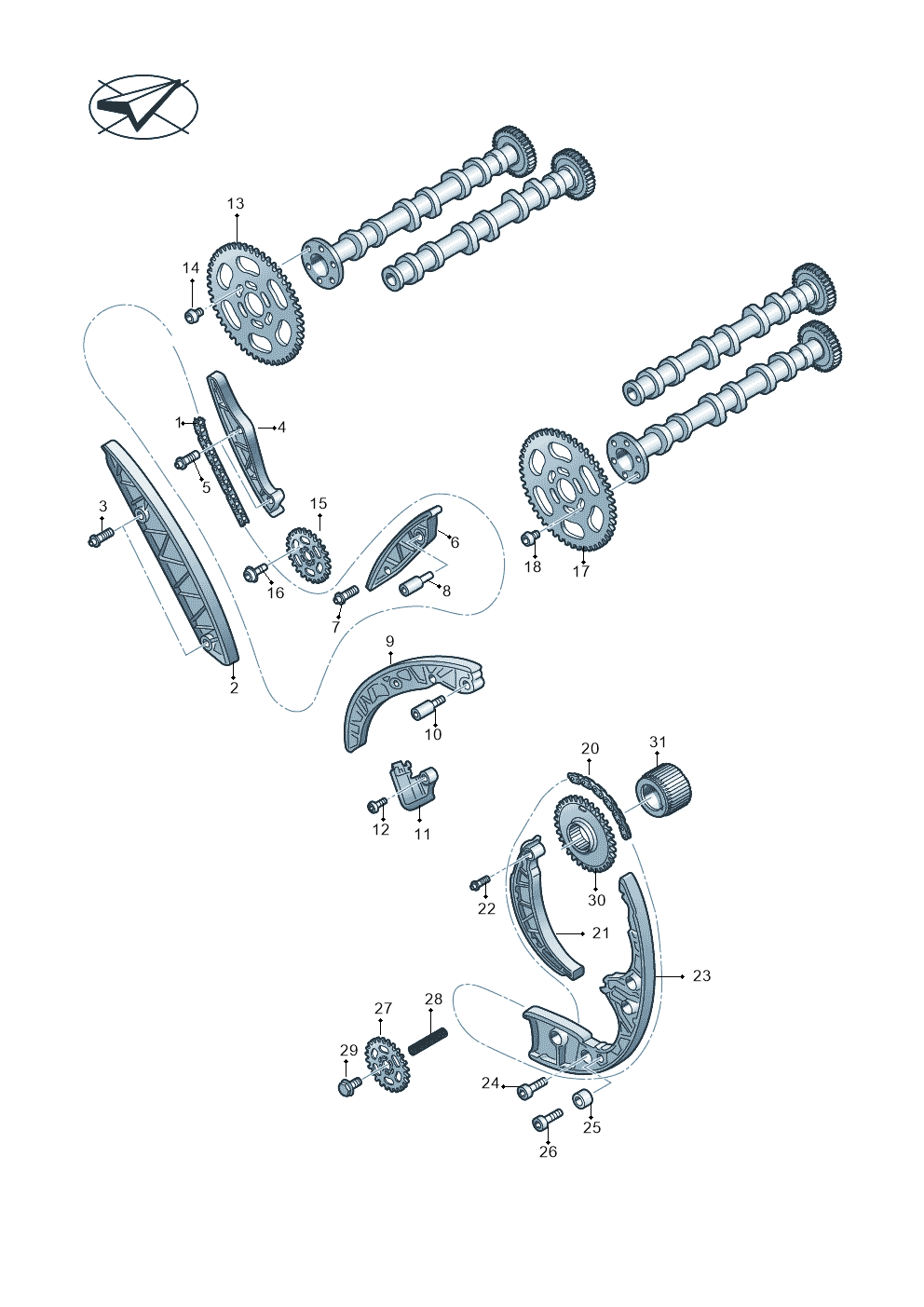

4 vehiclesTiming Chain — locate Timing Chain in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 2Seatrunner 059109469N
- 3Part 059109426F
- 4Seatrunner 059109513C
- 6Seatrunner 059109514C
- 8Part 059109426G
- 9Seatrunner 059109510F
- 11Tensioner 059109467K
- 11Tensioner 059109467T
- 12Bolt N10124306
- 13Chn Sprckt 059109116A
- 14Screw N91052201
- 15Chn Sprckt 059103333F
- 16Screw N91048802
- 20Timing Cha 059109252
- 21Seatrunner 059109509C
- 22Bolt WHT005189
- 23Tensioner 059109507K
- 23Tensioner 059109507R
- 25Bush 059109135A
- 27Chn Sprckt 059109570C
- 28Press Spring 059109481
- 29Bolt N90893202
- 30Chn Sprckt 059109569L
- 30Chn Sprckt 059109569F
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| touareg | 2010-2012 | 1 | 1 | TF1 | |
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 20 | 1 | TF1 | |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 20 | 1 | CDTB,CDTA, | TF1 |
| Audi A4 Av. Allroad | 2008-2016 | 20 | 1 | CDUC | TF1 |
Diagrams & fitment data powered by oemdiagrams.com
Timing Chain is fitted on: touareg 2010-2012; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A4 Av. Allroad 2008-2016.
