059109417A Roller Rocker Arm
- 059109417AThis pageNot stocked
Mar 2004 - 059109417BNot stocked
Mar 2005 - 059109417CNot stocked
May 2006 - 059109417FNot stocked
Apr 2008 - 059109417JCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

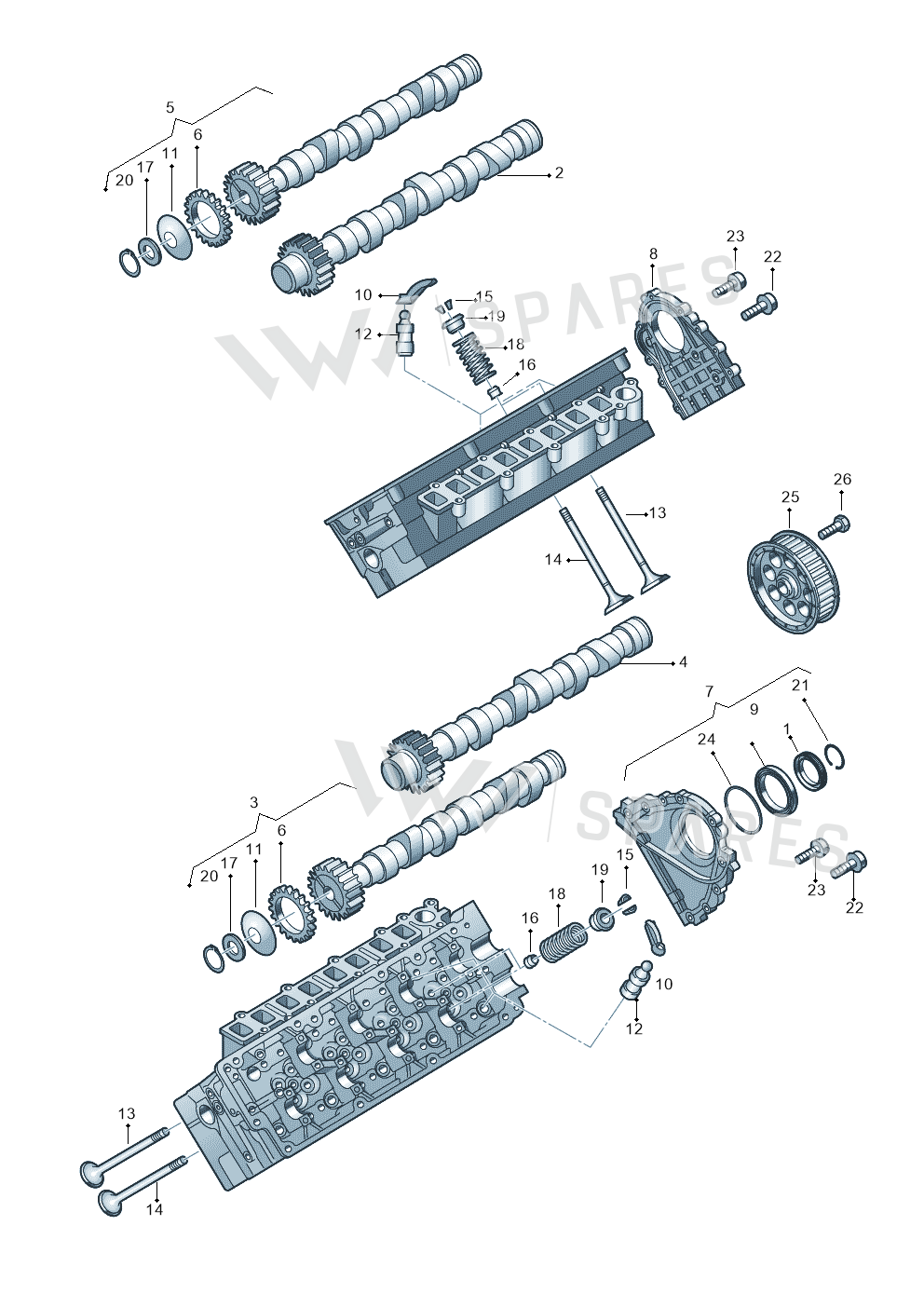

6 vehiclesRoller Rocker Arm — locate Roller Rocker Arm in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Seal Washer 028103086A
- 1Seal Washer 028103086C
- 2Camshaft 057109022AF
- 2Camshaft 057109022AQ
- 2Camshaft 057109022AR
- 3Camshaft 057109009AD
- 3Camshaft 057109009AQ
- 4Camshaft 057109021AT
- 4Camshaft 057109021BF
- 4Camshaft 057109021BL
- 5Camshaft 057109009AB
- 5Camshaft 057109009AP
- 6Drivewheel 059109115AT
- 7Cover 057109122H
- 7Cover 057109122L
- 7Cover 057109122P
- 8Cover 057109130F
- 8Cover 059109130E
- 8Cover 059109130H
- 9Cover 057109144
- 9Cover 057109144A
- 10Roller Roc 059109417J
- 12Equal Element 03L109521
- 13Valve 057109601B
- 13Valve 059109601G
- 14Valve 057109611E
- 14Valve 059109611K
- 15Cotter Pin 036109651A
- 16Seal 036109675A
- 18Spring 059109633H
- 18Spring 059109633J
- 19Springseat 059109641K
- 20Ring N0124161
- 21Ring N0122981
- 22Screw N10117405
- 23Bolt N10124306
- 24Seal Ring N91029001
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A8/S8/qu. lang | 2003-2007 | 10 | 32 | D1E |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 18 | 24 | T1K |
| PASSAT/4MOTION/W8 | 2002-2005 | 18 | 24 | T1K |
| Audi A4/S4/Av./qu. | 2001-2004 | 18 | 24 | D1P,MR1 |
| Audi A6/Wagon/quattro | 2001-2004 | 18 | 24 | D1P,MR1 |
| Audi A6 Allroad qu. | 2000-2005 | 18 | 24 | T1K |
Diagrams & fitment data powered by oemdiagrams.com
Roller Rocker Arm is fitted on: Audi A8/S8/qu. lang 2003-2007; Audi A4/S4 Cabrio./qu. 2002-2006; PASSAT/4MOTION/W8 2002-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Audi A6 Allroad qu. 2000-2005.
