059109455A Belleville Spring
- Discontinued Mar 2021
- Discontinued Mar 2021
- 059109455AThis pageNot stocked
Apr 2006
- Discontinued Mar 2021059109009BHDiscontinued
Mar 2021 - Discontinued Mar 2021059109009CADiscontinued
Mar 2021
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

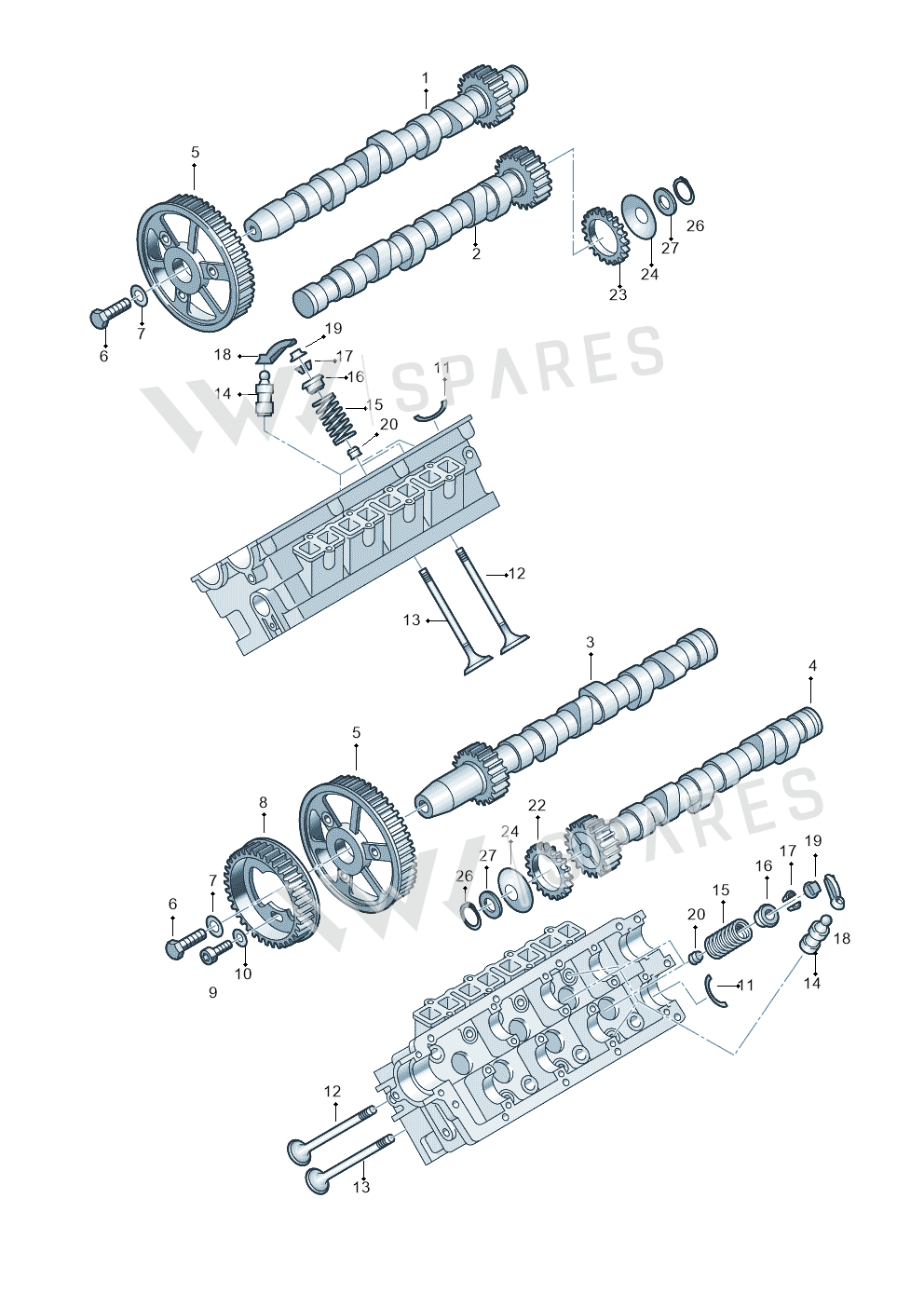

2 vehiclesBelleville Spring — locate Belleville Spring in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Camshaft 059109021BA
- 2Camshaft 059109009BH
- 3Camshaft 059109021CS
- 4Camshaft 059109009BJ
- 4Camshaft 059109009CA
- 5Pulley 059109111F
- 6Bolt N90256202
- 7Washer 027109143
- 8Pulley 059109111G
- 9Screw N01471211
- 10Washer N90179102
- 11Washer WHT000390
- 12Valve 059109601F
- 13Valve 059109611G
- 14Equal Element 059109521G
- 15Spring 057109633B
- 16Springseat 057109641D
- 17Cotter Pin 036109651A
- 18Roller Roc 059109417F
- 19Spacer 059109075E
- 20Seal 036109675
- 22Drivewheel 059109115H
- 23Drivewheel 059109115K
- 26Ring N0124161
- 27Thrustring 059130643B
Vehicle fitment table2
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| SUPERB 02> | 2001- | 24 | 2 | BDG | D1P |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L CHINA | 1999-2005 | 24 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Belleville Spring is fitted on: SUPERB 02> 2001-; AUDI A6L CHINA 1999-2005.
