059115103BC Oil Pump With Integrated Vacuum Pump
- 059115103BCThis pageNot stocked
Aug 2015 - 059115103BLNot stocked
Oct 2016 - 059115103BQNot stocked
May 2021 - 059115103CNCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

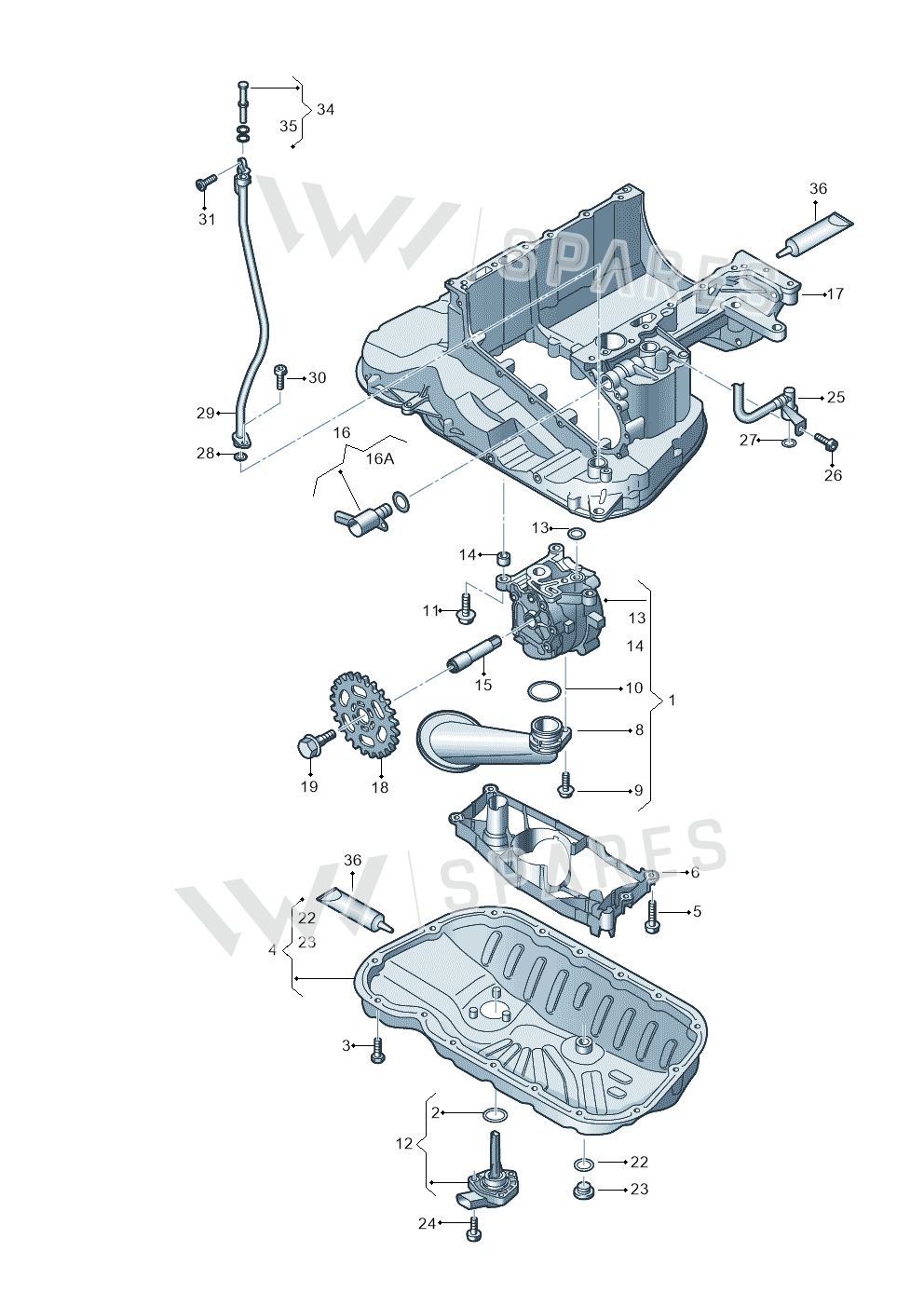

3 vehiclesOil Pump With Integrated Vacuum Pump — locate Oil Pump With Integrated Vacuum Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 2Seal Ring 038103196C
- 3Bolt N10745101
- 4Oil Sump 059103602AM
- 4Oil Sump 059103602BG
- 6Insert 059103138BD
- 11Bolt N10745301
- 12Oel Sensor 079907660
- 13Seal 059115111A
- 16Valve 06M115393D
- 16ASeal Ring 06M115475
- 18Chn Sprckt 059109570F
- 19Bolt N90893202
- 22Seal Ring N0138494
- 23Screw N91167901
- 24Bolt N10413405
- 26Bolt N10451408
- 27Seal Ring N90809102
- 28Seal Ring 034115427B
- 29Tube 059115630AQ
- 30Bolt N91126601
- 31Screw N10473402
- 34Stud 059115418A
- 35Seal Ring N90813802
- 36Seal D174003M2
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A7 Sportback | 2014-2018 | 1 | 1 | TS8 |
| audi a6 qu. 3.0 tdi | 2014-2018 | 1 | 1 | TS8 |
| Audi A6 Av. qu. 3.0 | 2012-2018 | 1 | 1 | TS8 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Pump With Integrated Vacuum Pump is fitted on: Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A6 Av. qu. 3.0 2012-2018.
