059115397AA Oil Filter Bracket
- 059115397QNot stocked
May 2008 - 059115397AAThis pageNot stocked
Feb 2012 - 059115397AFCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

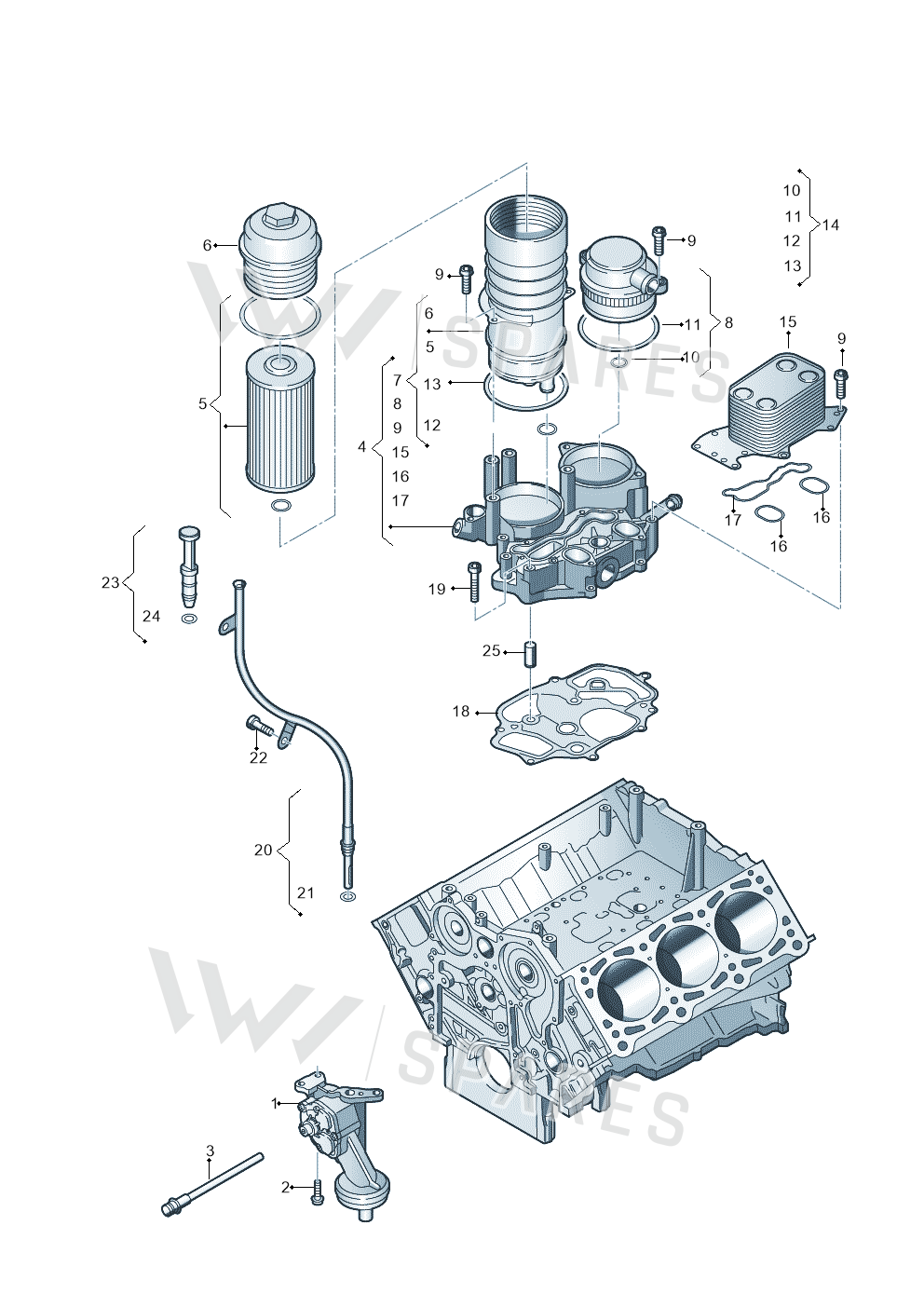

5 vehiclesOil Filter Bracket — locate Oil Filter Bracket in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Oil Pump 059115105BM
- 2Screw N10612801
- 3Shaft 059115120A
- 4Bracket 059115397AG
- 4Bracket 059115397AF
- 5Filterelem 057115561M
- 6Cover 057115433A
- 7Container 057115373B
- 8Separator 05A103495
- 8Separator 059103495G
- 9Bolt N10124306
- 14Gask Set 057198405C
- 15Oil Cooler 059117021K
- 16Seal Ring 057115446A
- 17Seal Ring 059115446A
- 18Seal 059115441K
- 19Bolt N10616501
- 20Tube 059115630AA
- 21Seal Ring 034115427B
- 22Screw N10170303
- 23Stud 059115418A
- 24Seal Ring N90813802
- 25Part N10667801
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| touareg | 2010-2012 | 4 | 1 | T41 | |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 4 | 1 | ||
| Audi A6 2.7 TDI | 2008-2011 | 4 | 1 | D1 | |
| Audi A5/S5 Coupe 08> | 2007- | 4 | 1 | CGKA,CGKB | |
| AUDI A6 QU.ALLROAD 07> | 2006- | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Filter Bracket is fitted on: touareg 2010-2012; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5/S5 Coupe 08> 2007-; AUDI A6 QU.ALLROAD 07> 2006-.
