059121070AC Coolant Pipe
- 059121070ACThis pageNot stocked
Jan 2024 - 059121070ADCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

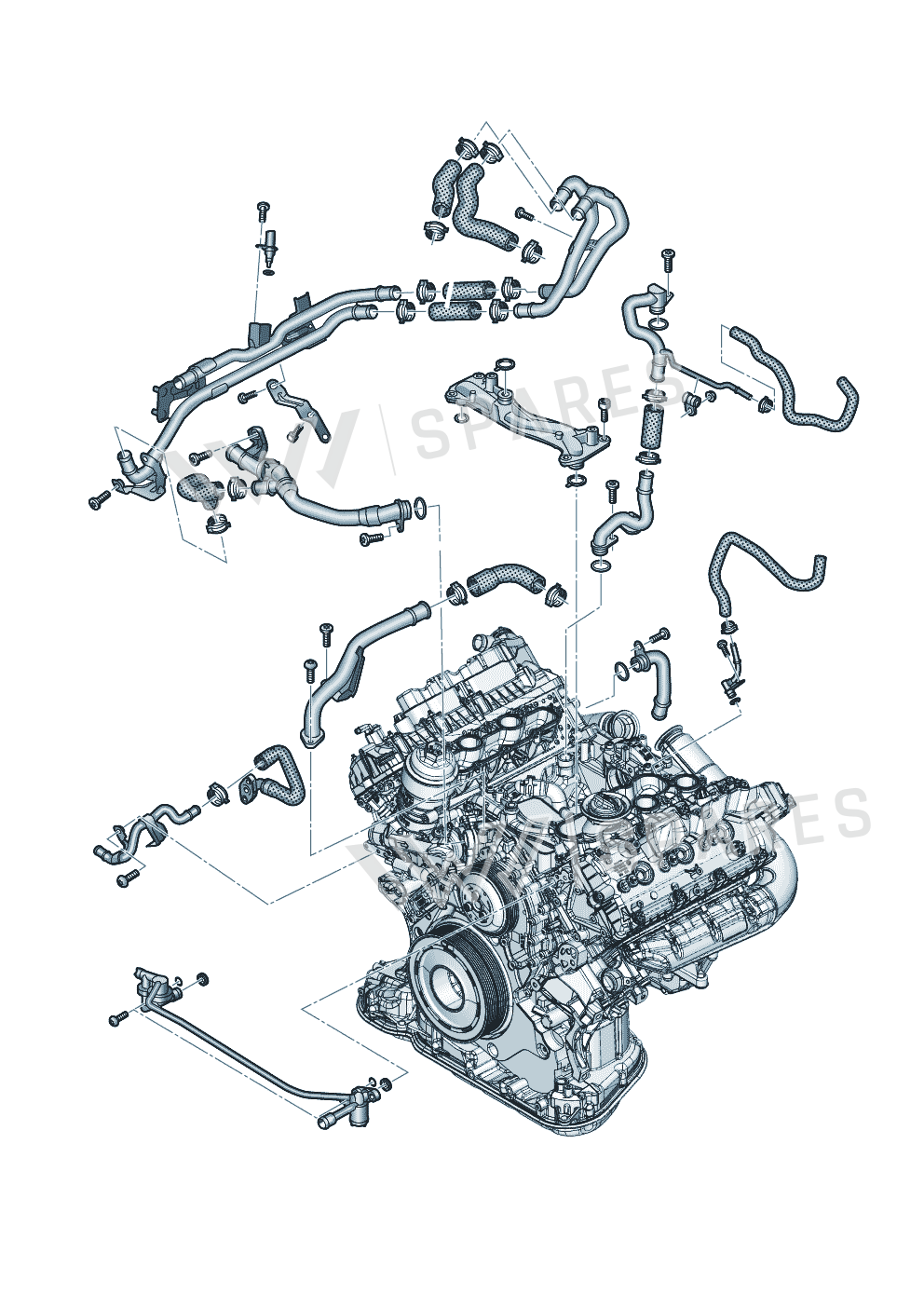

9 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly47
- 1Seal Ring WHT009332A
- 2Bolt N10335206
- 3Water Pipe 059121075GC
- 4Clamp N90686901
- 5Hose 059121058N
- 6Bolt N10405604
- 7Part 059122479F
- 8Screw N10664801
- 9Bracket 059122235B
- 10Seal Ring WHT002287B
- 11Sensor 079919523J
- 12Screw N10170302
- 13Hose 059121056N
- 14Water Pipe 059121667E
- 15Hose 059121062H
- 16Hose 059121060L
- 17Seal Ring WHT003695A
- 18Water Pipe 059121070AD
- 19Clamp N10558601
- 20Water Pipe 059121085AA
- 23Clamp N91171101
- 24Collar Nut N01508210
- 25Clamp N10716001
- 26Hose 059121061AE
- 27Seal Ring WHT003695B
- 28Water Pipe 059121507BB
- 28Water Pipe 059121507BM
- 29Hose 059121059AA
- 30Seal Ring 059121437E
- 31Water Pipe 059121597N
- 32Bolt N10196103
- 33Seal Ring N90809102
- 34Seal 059121091B
- 35Bracket 059131680H
- 35Bracket 059131680L
- 37Clamp N10558701
- 38Water Pipe 059121064AT
- 38Water Pipe 059121064BB
- 39Seal Ring WHT008798B
- 40Seal 059121043K
- 41Water Pipe 059121086CD
- 41Water Pipe 059121086CK
- 42Bolt N10124309
- 43Bolt N10451405
- 44Water Pipe 059121432E
- 45Clamp N90926401
- 46Hose 059122050H
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 18 | 1 |
| audi a6 2.0 | 2018- | 18, 17 | 1 |
| Audi A7 Sportback | 2018- | 18, 17 | 1 |
| touareg | 2017-2023 | 24 | 1 |
| Audi A8L | 2017-2022 | 18 | 1 |
| Audi Q5 | 2016-2020 | 18, 17 | 1 |
| Audi A5 Sportback | 2016-2020 | 18, 17 | 1 |
| audi a4 2.0 | 2015-2019 | 18, 17 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 18 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019.
