059121071AN Coolant Pipe
- 059121071AKNot stocked
Jun 2004 - 059121071ANThis pageDiscontinued
Dec 2025
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 361 g
- Shipping size (L × W × H)
- 26 × 16 × 7 cm
- Customs (HS) code
- 87089997

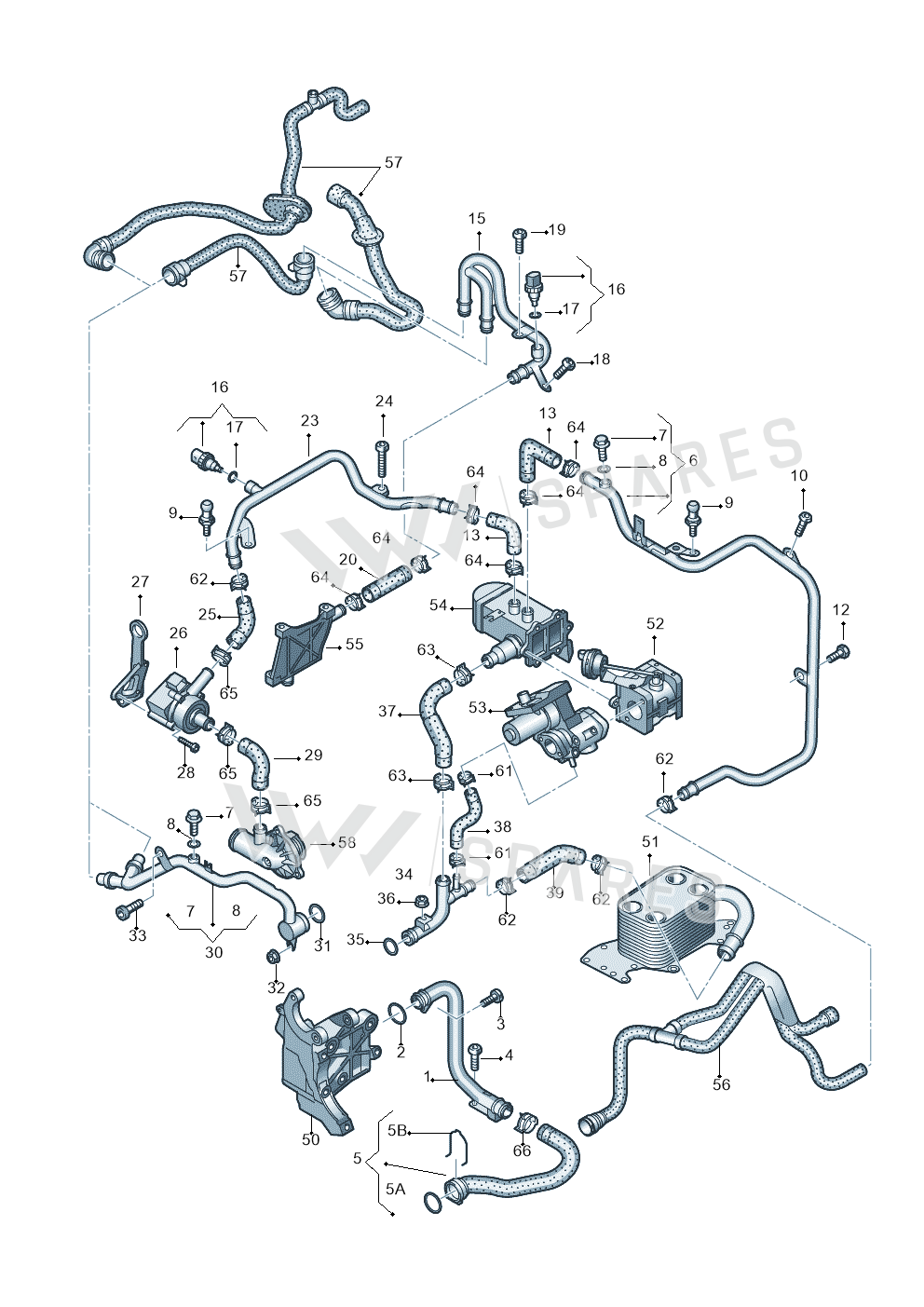

Parts diagram & fitment
8 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 2Seal Ring N90275302
- 3Bolt N10451405
- 4Bolt N10124306
- 5Hose 4F0121101
- 5ASeal Ring 4E0121666
- 5BSpring 4E0121142
- 6Water PipeLeft059121507AC
- 7Bolt N90483204
- 8Seal Ring N0138042
- 9Part WHT000508
- 10Bolt N10632102
- 10Bolt N10714801
- 12Bolt N90529302
- 13Hose 059121052G
- 15Water Pipe 059121065BM
- 16Sensor 059919523A
- 17Seal Ring WHT002287B
- 18Bolt N10335207
- 19Bolt N10405604
- 20Hose 059121057H
- 23Water PipeRight059121064D
- 24Screw N10626801
- 25Hose 059121104B
- 26Pump 059121012A
- 27Bracket 059103392AC
- 28Screw WHT002306
- 29Hose 059121102C
- 30Water Pipe 059121075CH
- 31Seal Ring N90465003
- 32Part N90488005
- 33Bolt N10517304
- 34Water Pipe 059121163F
- 35Seal Ring N90365304
- 36Collar Nut N01508213
- 37Hose 059121103D
- 37Hose 059121103J
- 38Hose 059121061F
- 39Hose 059121073K
- 61Clamp 4B0422379
- 62Clamp N90686901
- 63Clamp N90409501
- 64Clamp N10202001
- 65Clamp N90687001
- 66Clamp N90687201
Vehicle fitment table8
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A6 2.7 TDI | 2008-2011 | 1 | 1 | TA1 |
| Audi A8/S8/qu. lang 08> | 2007- | 4 | 1 | T41 |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 4 | 1 | T41 |
| AUDI A6 QU.ALLROAD 07> | 2006- | 4, 1 | 1 | TA1 |
| Audi A4/S4/Av./qu. 05> | 2005- | 4 | 1 | T41 |
| Audi A6/S6/Avant/qu. 05> | 2004- | 4 | 1 | |
| Audi A8/S8/qu. lang | 2003-2007 | 4 | 1 | T41 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Audi A6 2.7 TDI 2008-2011; Audi A8/S8/qu. lang 08> 2007-; Audi A4/S4 Cabrio./qu. 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; AUDI A6L "CN"05> 2005-.
