059121075DL Coolant Pipe
- 059121075DLThis pageNot stocked
Dec 2017 - 059121075FECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

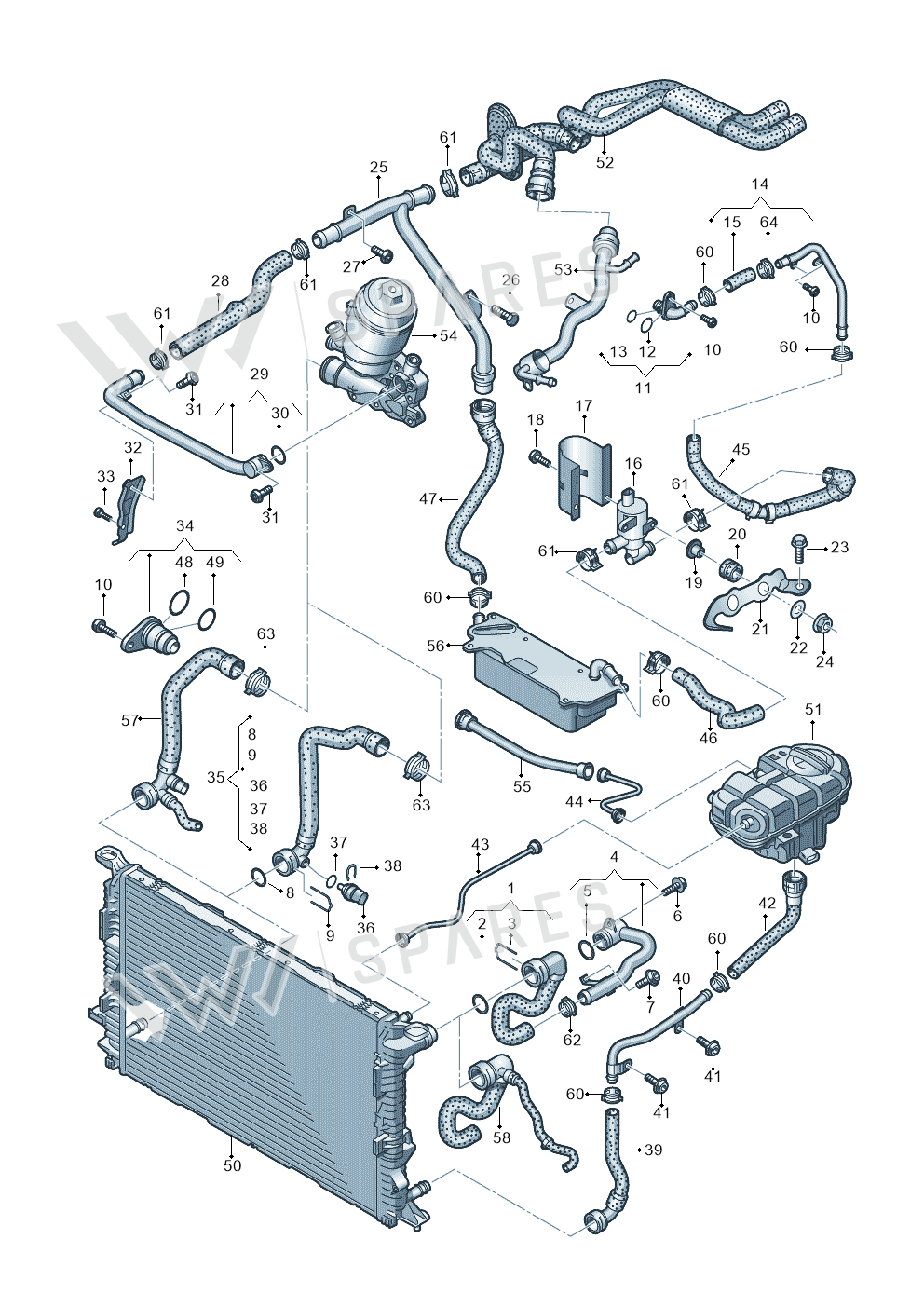

6 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 1Hose 4G0122101B
- 2Seal Ring 4E0121666
- 3Spring 4E0121142
- 4Water PipeLeft059121071CP
- 5Seal Ring N90275302
- 6Bolt N10451408
- 7Bolt N10517304
- 10Screw N10170303
- 11CoverLeft059121155AH
- 14Water Pipe 059121512AA
- 16Valve 4H0121671G
- 17PlateLeft4G0121146
- 18Screw N91199401
- 19Bush 4G0129381A
- 20Rubber Bush 4G0129669F
- 21Bracket 4G0121305CE
- 22Spacer 4G0121277A
- 23Bolt N10653201
- 24Collar Nut N01508210
- 25Water Pipe 4G0819377K
- 26Bolt N01021723
- 27Screw WHT003841
- 28Hose 4G0819374L
- 29Water Pipe 059121075DJ
- 29Water Pipe 059121075FE
- 30Seal Ring 059121437
- 32Bracket 059121093E
- 33Screw N10644901
- 34CoverRight059121155AG
- 35HoseRight4G0121049L
- 36Sender 06A919501A
- 37Seal Ring N90316801
- 38Spring 032121142
- 39HoseLeft4G0122109E
- 40Water PipeLeft4G0121071N
- 41Bolt N91069601
- 42Hose 4G0122109AF
- 43PipeLeft4G0121081CT
- 44PipeLeft4G0121081CN
- 45HoseLeft4G0122056B
- 46HoseLeft4G0121448BN
- 47HoseRight4G0122449D
- 60Clamp N90686902
- 61Clamp N90687001
- 62Clamp N90687201
- 63Clamp N90926501
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A7 Sportback | 2014-2018 | 29, 17 | |||
| audi a6 qu. 3.0 tdi | 2014-2018 | 29, 17 | |||
| Audi A6 Av. qu. 3.0 | 2012-2018 | 29, 17 | 1 | ||
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 17 | D | ||
| Audi A7 Sportback | 2010-2015 | 29, 17 | 1 | TG1 | |
| audi a6 2.0 tdi | 2010-2015 | 29, 17 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A6 Av. qu. 3.0 2012-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015.
