059121131H Water Connection
- 059121131FNot stocked
Nov 2012 - 059121131HThis pageNot stocked
Apr 2019 - 059121131JCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

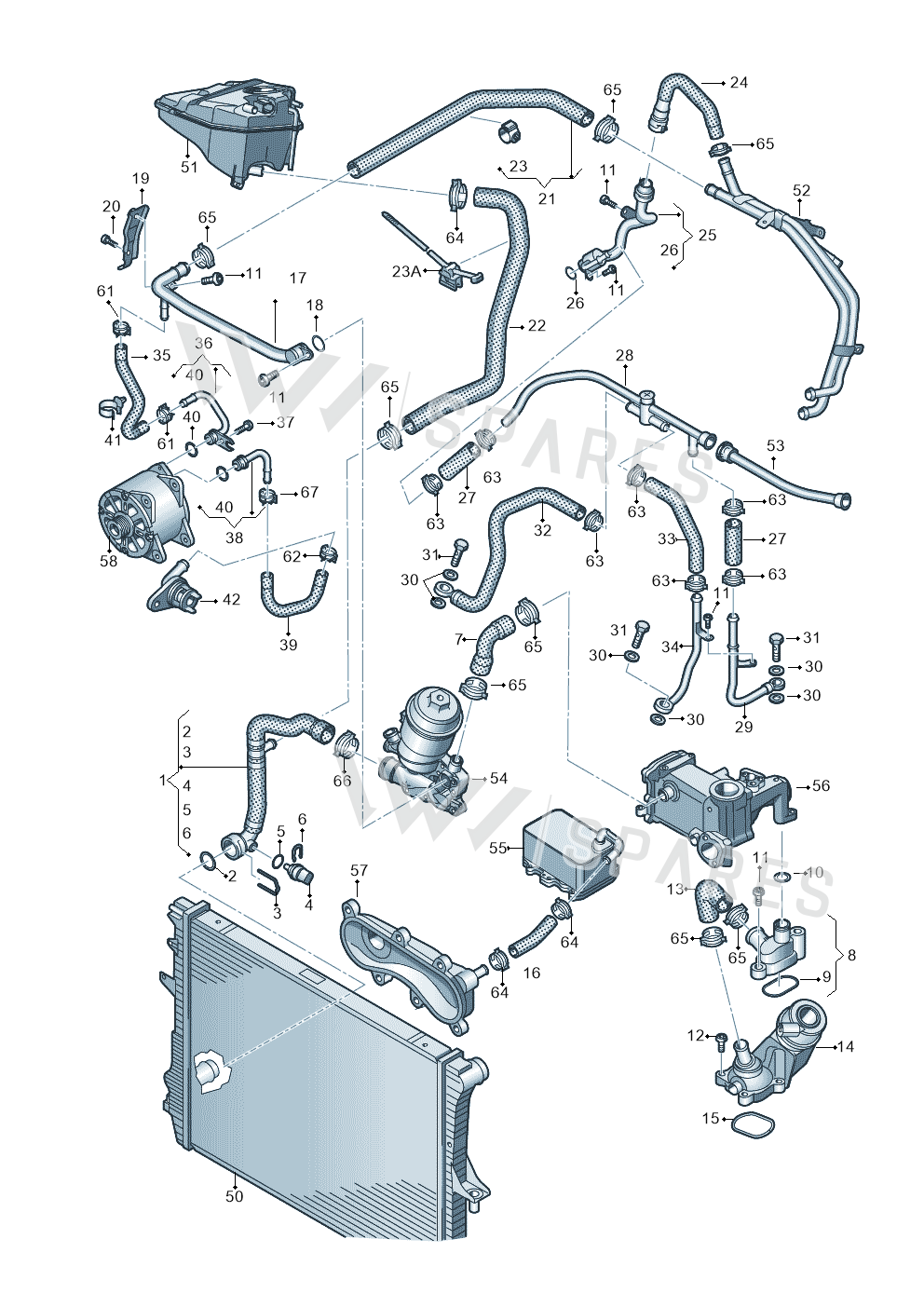

2 vehiclesWater Connection — locate Water Connection in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1HoseRight7L8121051L
- 2Seal Ring 4E0121666
- 3Spring 4E0121142
- 4Sender 06A919501A
- 5Seal Ring N90316801
- 6Spring 032121142
- 7Hose 059121103H
- 8Flange 059121506H
- 10Seal Ring N90809102
- 11Part N10196103
- 11Bolt N10670301
- 11Bolt N10451408
- 12Screw N10554005
- 13Hose 059121625C
- 14Valve 059121737R
- 15Seal Ring 059121149B
- 16Hose 059121073P
- 17Water Pipe 059121075DJ
- 17Water Pipe 059121075DK
- 18Seal Ring 059121437
- 19Bracket 059121093E
- 20Screw N10644901
- 21Hose 7L8121073H
- 22Hose 7L8121073J
- 23Bracket N90894701
- 23ABracket 4L0971003A
- 24Hose 7L8121157D
- 25Water Pipe 059121065CP
- 27Hose 059121056G
- 27Hose 059121055K
- 28Water Pipe 059121086AH
- 29Water Pipe 059121399K
- 30Seal Ring N0138076
- 31Screw N91043801
- 32Hose 059121454D
- 33Hose 059121453D
- 34Pipe 059121465B
- 35Hose 059121054C
- 36Connection 059121131G
- 37Bolt N10156206
- 38Connection 059121131F
- 39Hose 059121053J
- 40Seal Ring WHT001225
- 41Bracket N10708001
- 61Clamp N90770201
- 62Clamp N90926401
- 63Clamp N90686701
- 64Clamp N90686902
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 38 | 1 | TH1 | |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 48 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Water Connection is fitted on: Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014.
