059121511DA Coolant Pipe With Coolant Hose
- 059121511DAThis pageNot stocked
Aug 2023 - 059121511EACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

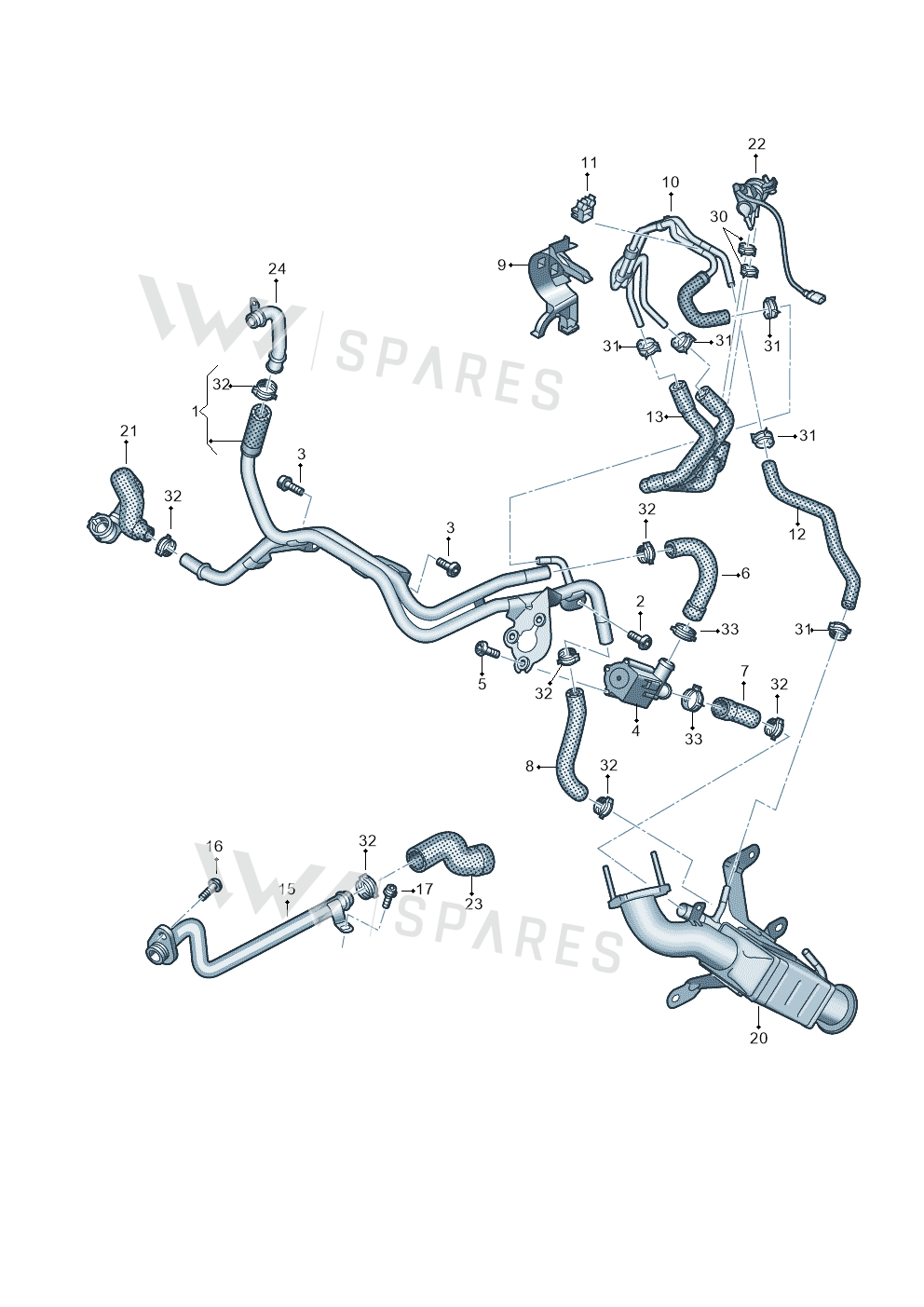

1 vehicleCoolant Pipe With Coolant Hose — locate Coolant Pipe With Coolant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Water Pipe 059121511EA
- 2Bolt N91096701
- 3Screw N10677501
- 4Pump 06H121601P
- 5Bolt WHT003361
- 6Hose 059121449L
- 7Hose 059121447K
- 8Hose 059121445M
- 9Bracket 8W0121093C
- 10Water Pipe 4M0121044A
- 11Bracket 8W0121093B
- 12Hose 4N0121057N
- 13Hose 4N0122058G
- 15Water Pipe 059121512AP
- 16Bolt N10451405
- 17Screw N10664901
- 30Clamp N10716001
- 31Clamp N90686701
- 32Clamp N90686901
- 33Clamp N90687001
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8L | 2017-2022 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe With Coolant Hose is fitted on: Audi A8L 2017-2022.
