059121512AL Coolant Pipe
- 059121512ALThis pageNot stocked
Nov 2021 - 059121512AQCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

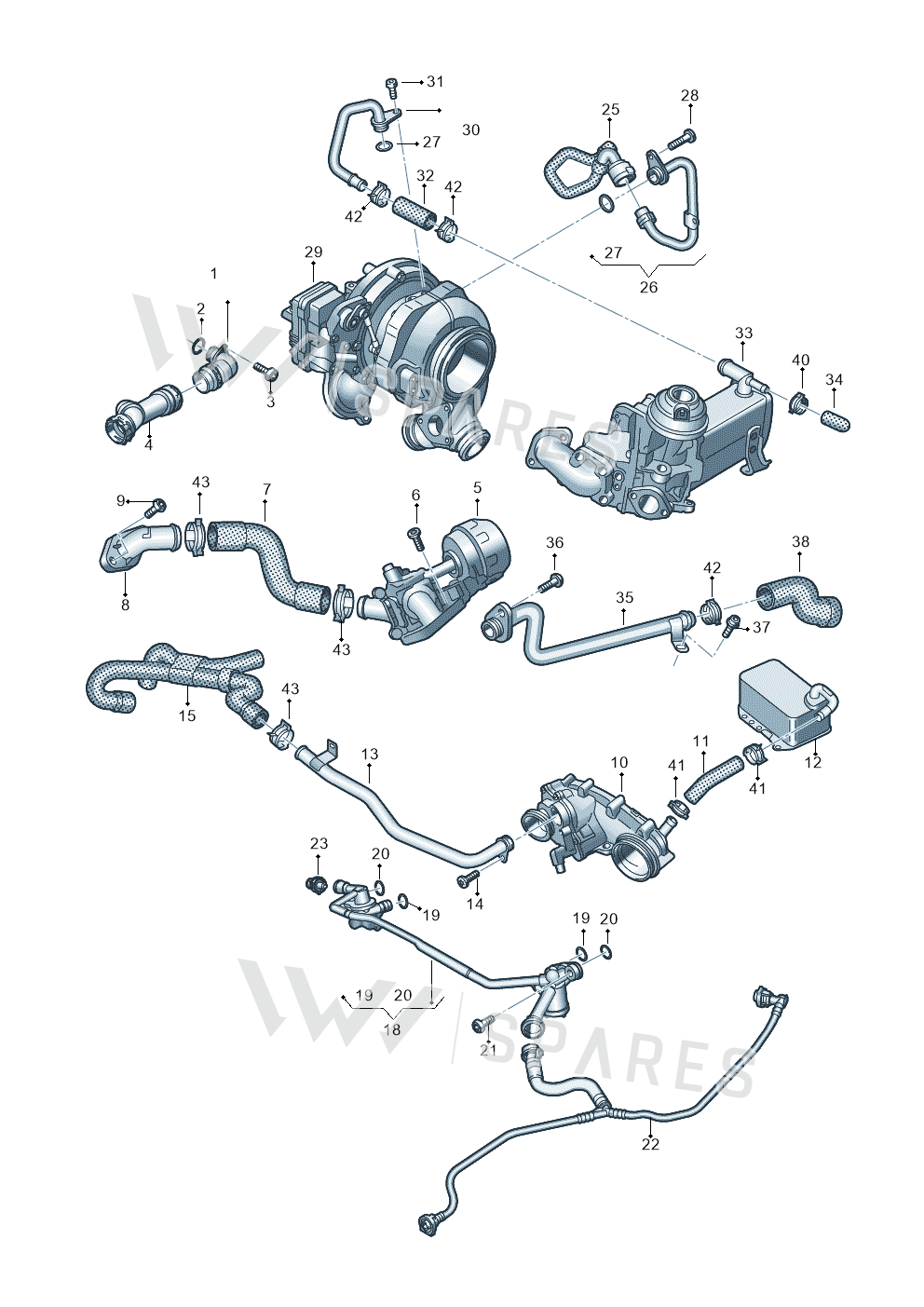

9 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1Connection 059121071DQ
- 1Connection 059121071DE
- 2Seal Ring WHT001688D
- 2Seal Ring N90275302
- 3Bolt N10700201
- 5Valve 059121737AR
- 5Valve 059121737AP
- 6Bolt N10196103
- 7Hose 059121057S
- 8Connection 059121131S
- 11Hose 059121073AB
- 13Water Pipe 059121075GH
- 13Water Pipe 059121075ES
- 14Bolt N10335206
- 18Water Pipe 059121086BG
- 19Seal Ring 059121437G
- 20Seal 059121043F
- 21Bolt N10124309
- 21Bolt N10124306
- 23Coupl Piece 4G0122293CG
- 26Water Pipe 059121065FL
- 27Seal Ring N90809102
- 30Water Pipe 059121065FS
- 30Water Pipe 059121065EA
- 31Bolt N10405604
- 32Hose 059121054G
- 34Hose 059121059J
- 34Part 059121324
- 35Water Pipe 059121512AM
- 36Bolt N10451408
- 37Screw N10664901
- 40Clamp N10716001
- 41Clamp N90926401
- 42Clamp N90686902
- 43Clamp N90687001
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 35, 1 | 1 | ||
| Audi A7 Sportback | 2018- | 1 | 1 | ||
| touareg | 2017-2023 | 35 | 1 | ||
| Audi A8L | 2017-2022 | 1, 35 | 1 | ||
| Audi Q5 | 2016-2020 | 1 | 1 | ||
| Audi A5 Sportback | 2016-2020 | 13, 11 | 1 | ||
| Audi A5 Cabrio 2.0 | 2016-2018 | 13, 11 | 1 | ||
| audi a4 2.0 | 2015-2019 | 13, 11 | 1 | ||
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 11 | 1 | 0K0 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Audi Q8 Quattro 3,0 2018-; Audi A7 Sportback 2018-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019.
