059130277CH Injector Unit
- 059130277CHThis pageNot stocked
Jul 2016 - 059130277EKCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

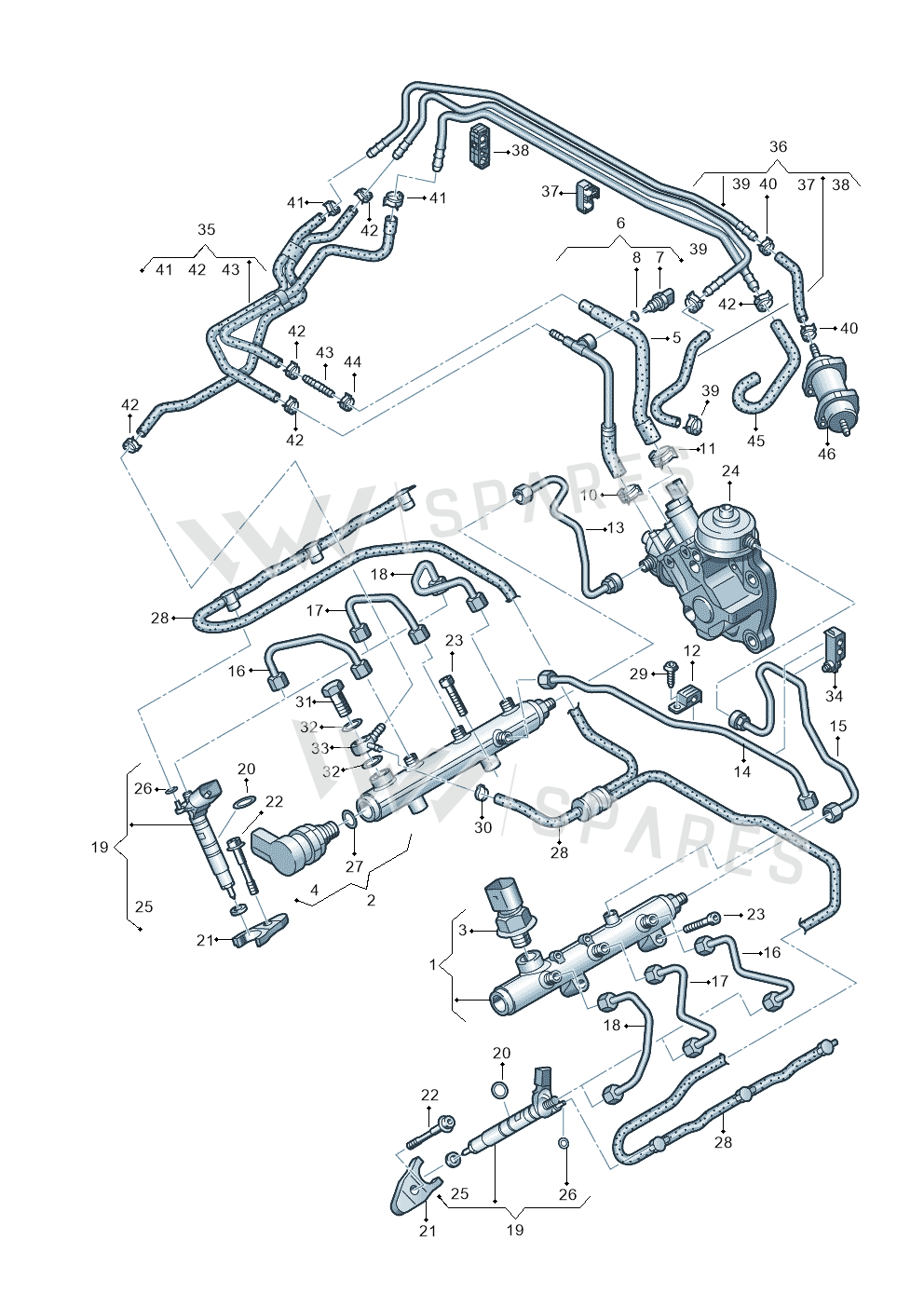

11 vehiclesInjector Unit — locate Injector Unit in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1RailLeft059130089BT
- 1RailLeft059130089BS
- 2RailRight059130090CN
- 2RailRight059130090CM
- 3Sensor 05A906051
- 4Valve 057130764AE
- 5Fuel Line 059130297AD
- 6Fuel Line 059130299AC
- 6Fuel Line 059130299AH
- 7Sensor 059919523A
- 8Seal Ring WHT002287C
- 10Clamp N90926401
- 11Clamp N90770201
- 12Clip 057130401B
- 13Fuel Line 059130312AC
- 13Fuel Line 059130312AB
- 14Fuel Line 059130310BL
- 14Fuel Line 059130310BK
- 15Fuel Line 059130309CD
- 15Fuel Line 059130309CC
- 16Pipe 059130241CQ
- 16Pipe 059130241DA
- 17Pipe 059130241CR
- 17Pipe 059130241DB
- 18Pipe 059130241CS
- 18Pipe 059130241DC
- 19Injector 059130277CC
- 20Seal Ring WHT000884
- 21Plate 059130216J
- 22Bolt WHT004923B
- 23Screw N91045502
- 25Seal Ring 059130519B
- 26Seal Ring 059130119
- 27Seal Ring 057130119A
- 28Pipe 059130218AM
- 29Screw N10721401
- 30Clamp N10231301
- 31Screw N0210717
- 32Seal Ring N0138133
- 33Connection 059130602G
- 34Bracket 059130401B
- 34Bracket 059130401A
Vehicle fitment table11
Europe (11)
| Vehicle | Years | Pos. | Remark | PR |
|---|---|---|---|---|
| Audi A7 Sportback | 2014-2018 | 19 | ||
| audi a6 qu. 3.0 tdi | 2014-2018 | 19 | ||
| Audi A8L qu. 3.0 TDI | 2013-2018 | 19 | 6 | WH |
| Audi A6 Av. qu. 3.0 | 2012-2018 | 19 | 6 | WH |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 19 | ||
| Audi A5 Sportback | 2011-2017 | 19 | 6 | WH |
| audi a4 av. 2.0 tdi | 2011-2015 | 19 | 6 | WH |
| Audi A7 Sportback | 2010-2015 | 19 | ||
| audi a6 2.0 tdi | 2010-2015 | 19 | WHT 000 884 | CK |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 19 | 6 | WH |
| Audi A4 Av. Allroad | 2008-2016 | 19 |
Diagrams & fitment data powered by oemdiagrams.com
Injector Unit is fitted on: Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A8L qu. 3.0 TDI 2013-2018; Audi A6 Av. qu. 3.0 2012-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A4 Av. Allroad 2008-2016.
