059130855FX Injector Unit
- 059130855FXThis pageNot stocked
Jul 2022 - 059130277BECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

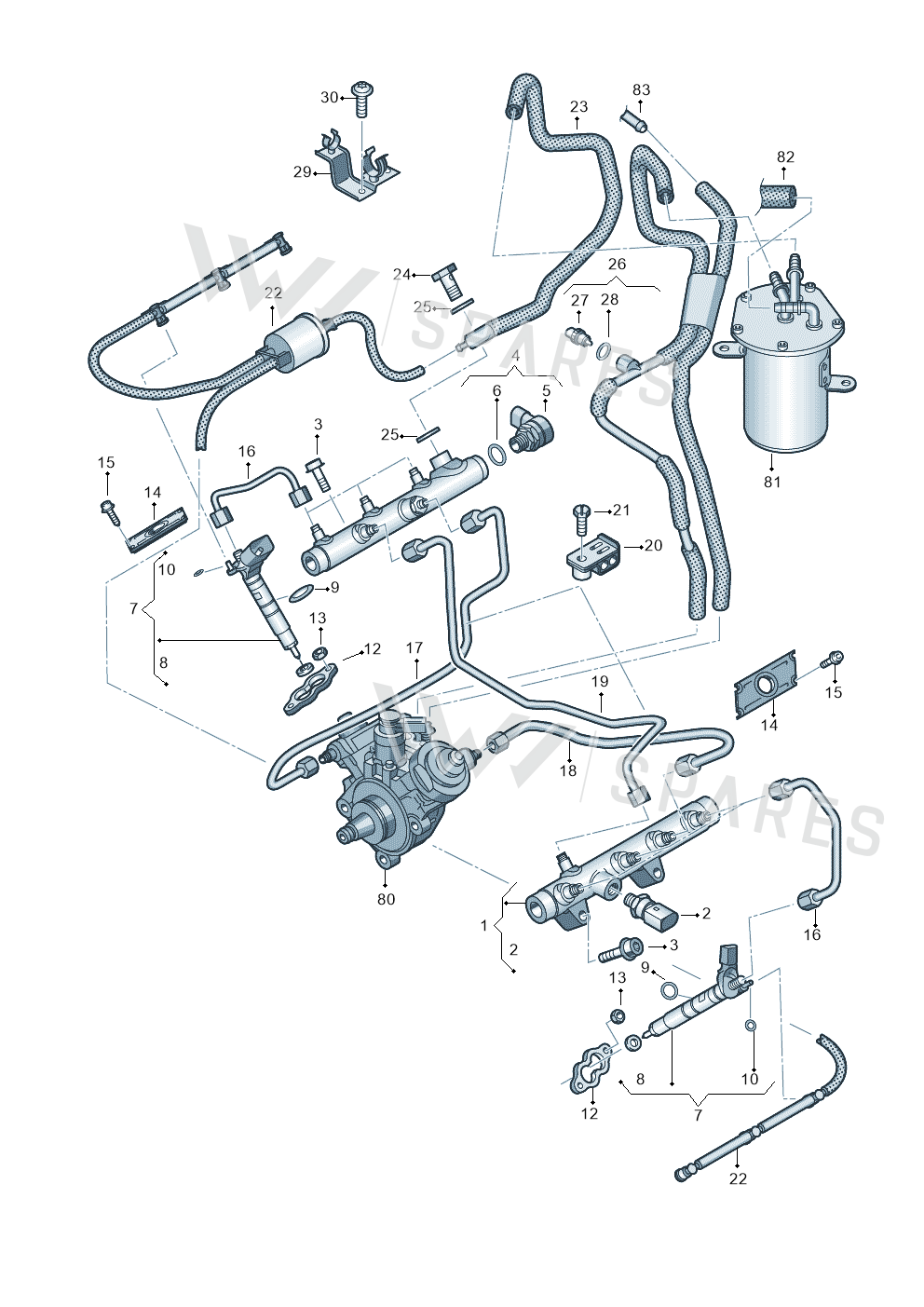

11 vehiclesInjector Unit — locate Injector Unit in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1RailLeft059130089AM
- 2Sensor 059130758J
- 3Screw N10705901
- 4RailRight059130090BR
- 4RailRight059130090BJ
- 5Valve 057130764AD
- 5Valve 057130764AB
- 6Seal Ring N90451902
- 7Injector 059130277AM
- 7Injector 059130855HX
- 7Injector 059130277BE
- 8Seal Ring 059130519
- 9Seal Ring WHT000884
- 10Seal Ring 059130119
- 12Plate 059130216C
- 13Collar Nut N90446502
- 14Cover 059103113F
- 15Screw N90427502
- 16Pipe 059130241CD
- 16Pipe 059130241BT
- 17Fuel Line 059130312K
- 17Fuel Line 059130312N
- 18Fuel Line 059130309AT
- 18Fuel Line 059130309AP
- 19Fuel Line 059130310AK
- 19Fuel Line 059130310AJ
- 20Bracket 059130401B
- 20Bracket 059130401A
- 21Bolt N10285506
- 22Pipe 059130218AD
- 23Fuel Line 059130297S
- 24Screw N0210717
- 25Seal Ring N0138133
- 26Part 059130300EG
- 26Part 059130300DN
- 26Part 059130300EA
- 27Sensor 059919523A
- 28Seal Ring WHT002287C
- 29Bracket 059130131H
- 30Bolt N91073301
Vehicle fitment table11
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| touareg | 2010-2012 | 7 | 6 | CASD,CASA | T41 |
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 22 | |||
| Audi A4 Av. Allroad | 2008-2016 | 22 | |||
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 22 | |||
| Audi A5 Cabrio 2.0 | 2008-2012 | 22 | |||
| Audi A6 2.7 TDI | 2008-2011 | 22 | |||
| Audi A5/S5 Coupe 08> | 2007- | 22 | |||
| AUDI A4 08> | 2007- | 22 | |||
| Touareg 08> | 2007- | 22 | 6 | CASA,CASB, | |
| Audi Q7 07> | 2006- | 22 | |||
| AUDI A6 QU.ALLROAD 07> | 2006- | 22 |
Diagrams & fitment data powered by oemdiagrams.com
Injector Unit is fitted on: touareg 2010-2012; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A4 Av. Allroad 2008-2016; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Touareg 08> 2007-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-.
