059131492F Vacuum Pipe
- 059131492CNot stocked
Jun 2004 - 059131492FThis pageDiscontinued
Apr 2025
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

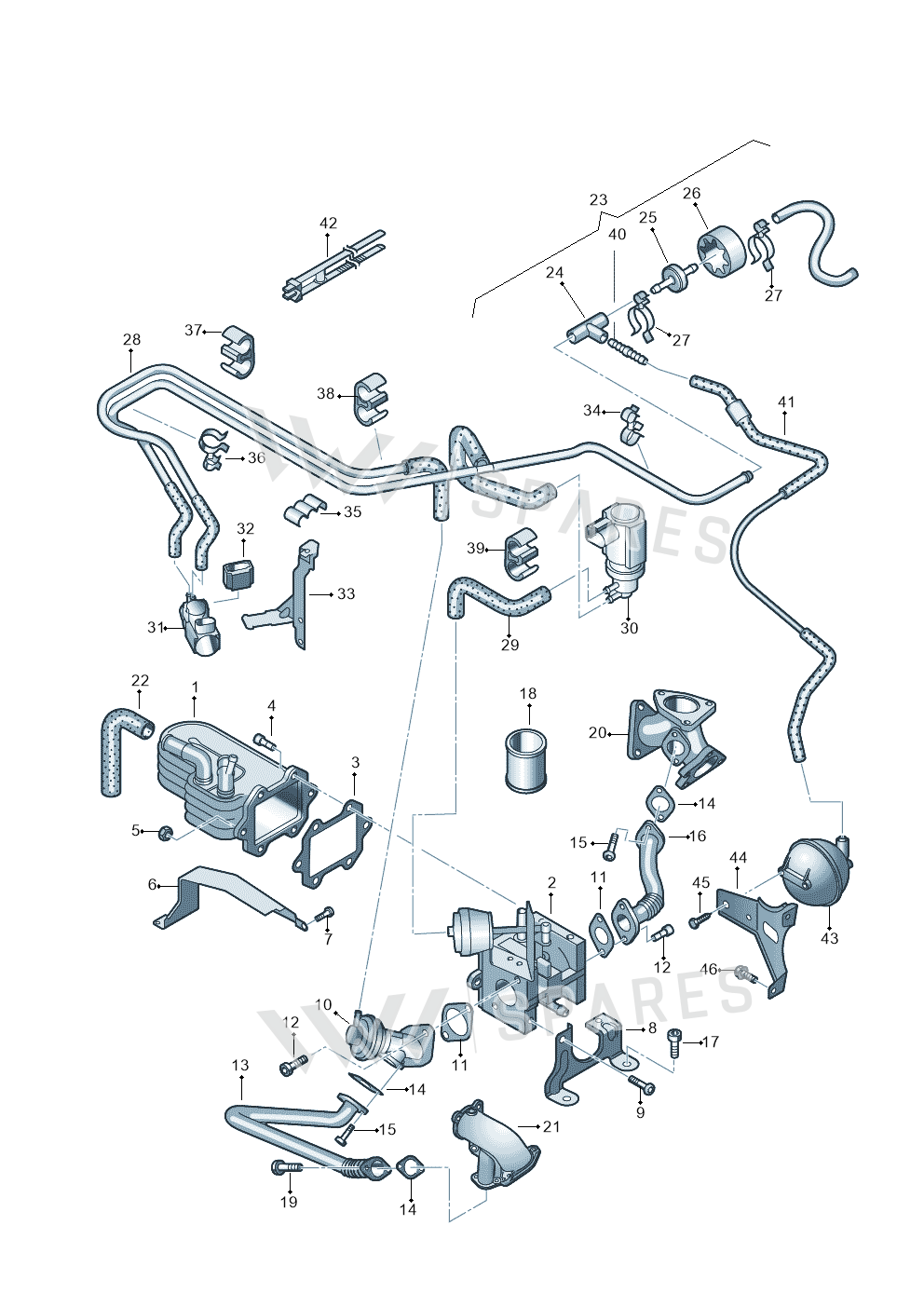

9 vehiclesVacuum Pipe — locate Vacuum Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1Cooler 059131511
- 2Flap 059131063D
- 3Seal 059131547C
- 4Screw N10559901
- 5Part N01100636
- 6Bracket 059131133H
- 7Bolt N10029206
- 8Bracket 059131121C
- 10Valve 059131503H
- 11Seal 059131599D
- 12Screw N91021501
- 13Pipe 059131525AC
- 14Seal 059131797G
- 16Pipe 059131525AB
- 17Screw N01470210
- 18Paste G052112A3
- 19Bolt N10124306
- 23Press Pipe 059131381Q
- 24Tpiece 022201943
- 25Valve 046905291A
- 26Ring N10519301
- 27Clip 059131694K
- 28Press Pipe 059131385H
- 30Valve 1J0906283A
- 31Converter 059906628B
- 32Support 059906629A
- 33Bracket 059130407C
- 34Clip 059131694D
- 35Clip 059131694M
- 36Clip 059131694A
- 37Clip 059131694P
- 38Clip 059131694N
- 39Clip 059131694Q
- 40Pipe 077133382K
- 41Hose 7L6133798J
- 42Binder 4A0820199
- 43Damper 038129807
- 44Retaining 7L6103811A
- 45Screw N0138845
- 46Bolt N10156305
Vehicle fitment table10
Europe (9)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Touareg 08> | 2007- | 29 | 1 | |
| PHAETON 08> | 2007- | 29 | 1 | |
| Audi Q7 07> | 2006- | 29 | 1 | T41 |
| AUDI A6 QU.ALLROAD 07> | 2006- | 23 | 1 | TA1 |
| Audi A4/S4/Av./qu. 05> | 2005- | 24 | 1 | T41 |
| Touareg | 2005-2006 | 29 | 1 | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 23 | 1 | T41,TA1 |
| Phaeton (lang) | 2003-2006 | 29 | 1 | |
| Touareg | 2003-2005 | 29 | 1 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Vacuum Pipe is fitted on: Touareg 08> 2007-; PHAETON 08> 2007-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Touareg 2005-2006; Audi A6/S6/Avant/qu. 05> 2004-; Phaeton (lang) 2003-2006; Touareg 2003-2005.
