059131525ED Connecting Pipe
- 059131525EDThis pageNot stocked
Jan 2020 - 059131525EGCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

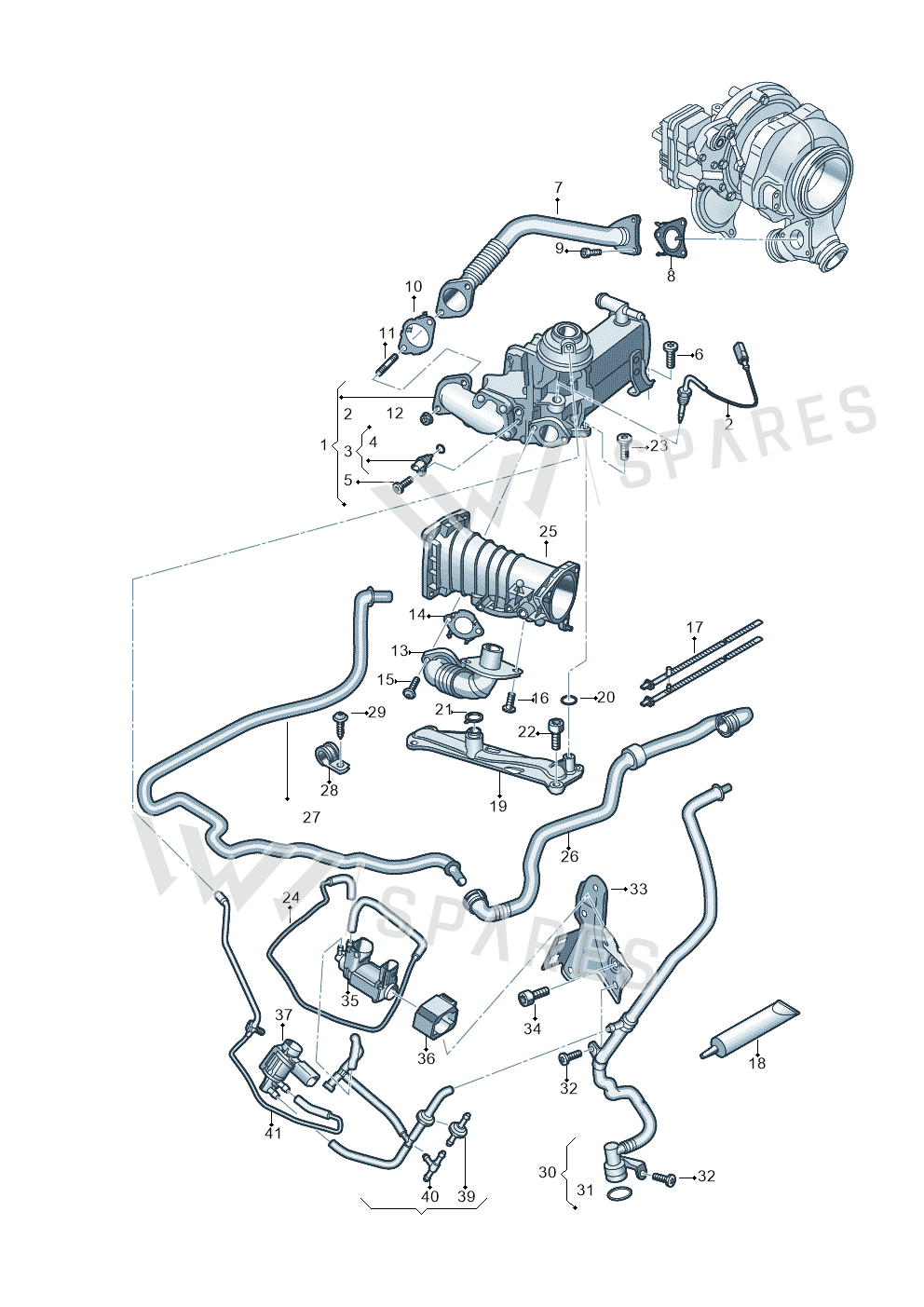

5 vehiclesConnecting Pipe — locate Connecting Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Cooler 059131511DE
- 1Cooler 059131511DD
- 2Sensor 059906088CS
- 2Sensor 059906088DP
- 3Sensor 079919525B
- 4Seal Ring WHT002287B
- 5Bolt N10405604
- 6Screw N10170303
- 7Pipe 059131525EG
- 7Pipe 059131525CP
- 7Pipe 059131525ER
- 7Pipe 059131525FK
- 8Seal 059131357P
- 8Seal 059131357R
- 8Seal 059131357H
- 9Screw N91196201
- 10Seal 059131358G
- 12Collar Nut N01508215
- 13Pipe 059131530T
- 14Seal 059131599R
- 15Bolt N10124306
- 17Binder 4A0820199
- 18Paste G052112A3
- 19Bracket 059131680H
- 19Bracket 059131680L
- 19Bracket 059131680D
- 20Seal 059121091A
- 21Seal Ring N90809102
- 22Bolt N10196103
- 23Bolt N10413405
- 24Press Pipe 059131386G
- 24Press Pipe 059131386E
- 26Hose 059131058F
- 27Hose 059131460B
- 28Clamp N0206208
- 29Screw N10721401
- 30Press Pipe 059131057AL
- 30Press Pipe 059131057Q
- 32Bolt N10451408
- 33Bracket 059131338E
- 34Screw N10644901
- 35Converter 059906627Q
- 36Support 059906629H
- 37Valve 1K0906283A
- 38Hose 059131375J
- 38Hose 059131375P
- 39Valve 046905291B
- 40Tpiece 2D0129737A
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| touareg | 2017-2023 | 7 | 1 | PR:T7V | |
| Audi Q5 | 2016-2020 | 7 | 1 | T7V | |
| Audi A5 Sportback | 2016-2020 | 7 | 1 | T7V | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 7 | 1 | ||
| audi a4 2.0 | 2015-2019 | 7 | 1 | DCPC,DCPE | T7V |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Pipe is fitted on: touareg 2017-2023; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
