059131525G Connecting Pipe
- 059131525GThis pageNot stocked
Nov 2004 - 059131525QDiscontinued
Aug 2022
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 250 g
- Shipping size (L × W × H)
- 17 × 8 × 4.6 cm
- Customs (HS) code
- 84099900
Parts diagram & fitment

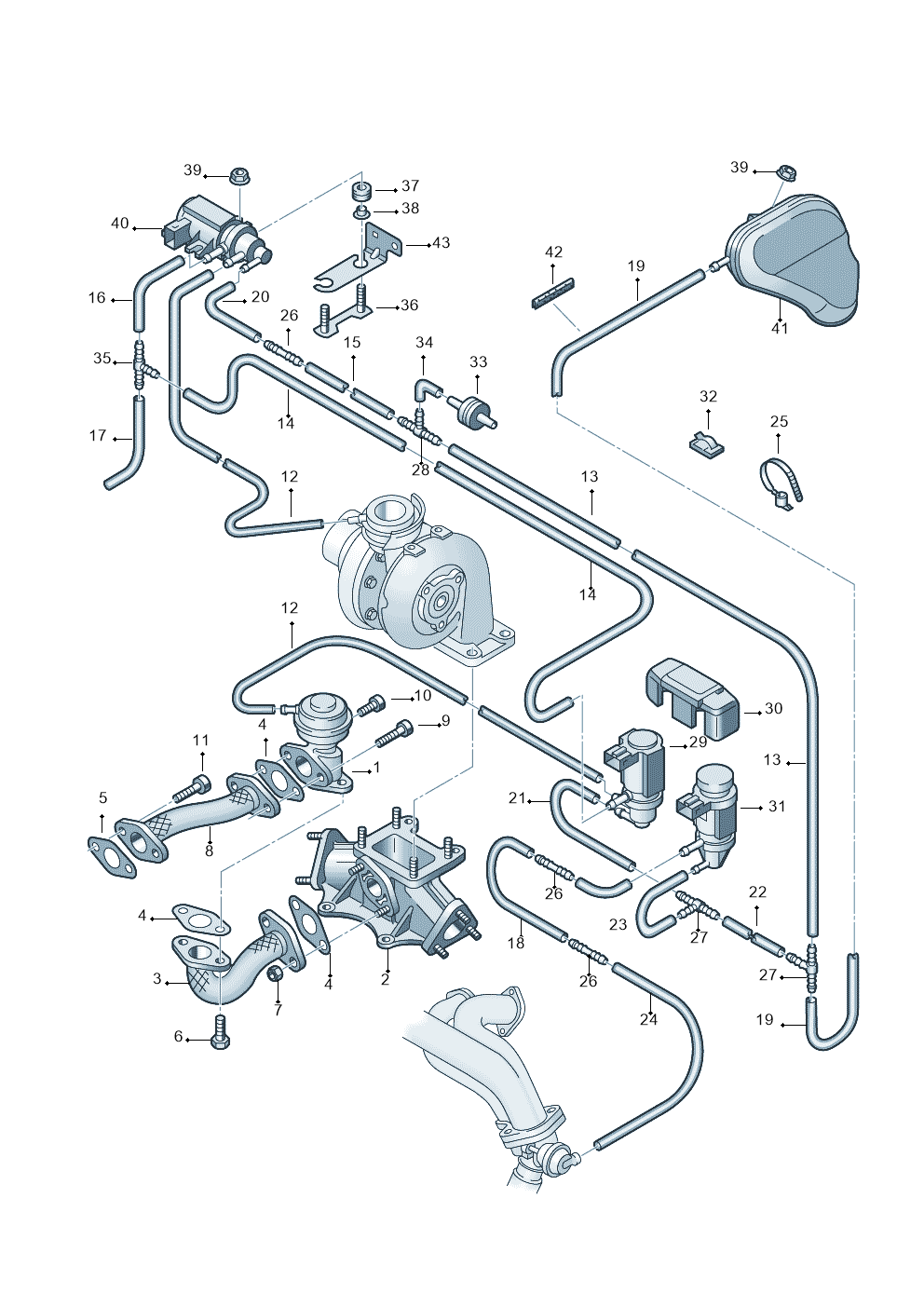

7 vehiclesConnecting Pipe — locate Connecting Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 3Pipe 059131525P
- 4Seal 046131547
- 5Seal 059131797A
- 6Bolt N10063202
- 7Collar Nut N90200201
- 9Screw N0447041
- 10Screw N0147123
- 11Bolt N10196103
- 25Cable Tie 8D0971850C
- 27Tpiece 251201346
- 27Tpiece 2D0129737A
- 29Converter 8D0906627
- 31Valve 1J0906283A
- 32Cable Tie N0209022
- 33Valve 046905291A
- 34Hose 034133784L
- 35Tpiece 811907428
- 36Plate 046130405
- 37Grommet 046131887
- 38Spacer 052129734
- 39Collar Nut N90106302
- 40Converter 1J0906627B
- 41Tank 8D0131541B
- 42Edge Prot 535853879A
- 43Retaining 8D0201710C
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Passat/4Motion/W8 | 2000-2002 | 8 | 1 |
| Audi A8 quattro | 1999-2002 | 7 | 1 |
| AUDI A8 | 1998-2002 | 7 | 1 |
| Passat syncro/4Motion | 1998-2000 | 8 | 1 |
| Passat | 1997-2000 | 8 | 1 |
| Audi A8 | 1996-1998 | 7 | 1 |
| Audi A8 qu. | 1996-1998 | 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Pipe is fitted on: Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Passat syncro/4Motion 1998-2000; Passat 1997-2000; Audi A8 1996-1998; Audi A8 qu. 1996-1998.
