059145169CG Bracket For A C Compressor
- 059145169CGThis pageNot stocked
Aug 2017 - 059145169CKCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

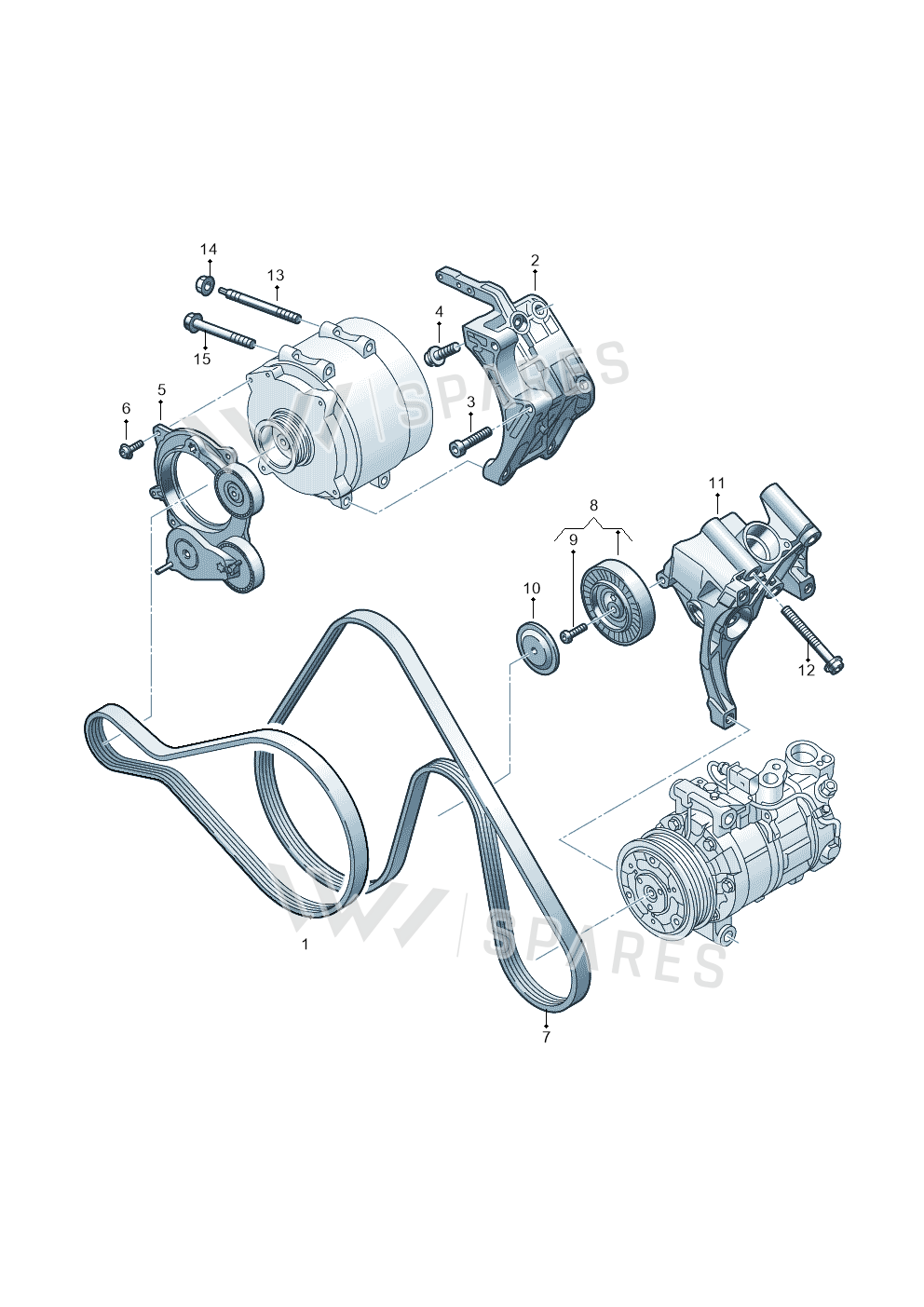

1 vehicleBracket For A C Compressor — locate Bracket For A C Compressor in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Ply-v-belt 059903137CA
- 2Bracket 059903143BH
- 3Screw N10660901
- 4Bolt N90929202
- 5B Tensionr 057903133AF
- 5B Tensionr 057903133AJ
- 5B Tensionr 057903133AD
- 5B Tensionr 057903133AK
- 6Bolt N91096801
- 7Ply-v-belt 059260849F
- 8Tens Element 059903315C
- 8Tens Element 059903315B
- 10Part 059903343A
- 11Retainer 059145169CK
- 12Screw N10715601
- 13Bolt WHT007612
- 14Collar Nut N10609201
- 15Bolt N91071801
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi A8L | 2017-2022 | 11 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket For A C Compressor is fitted on: Audi A8L 2017-2022.
