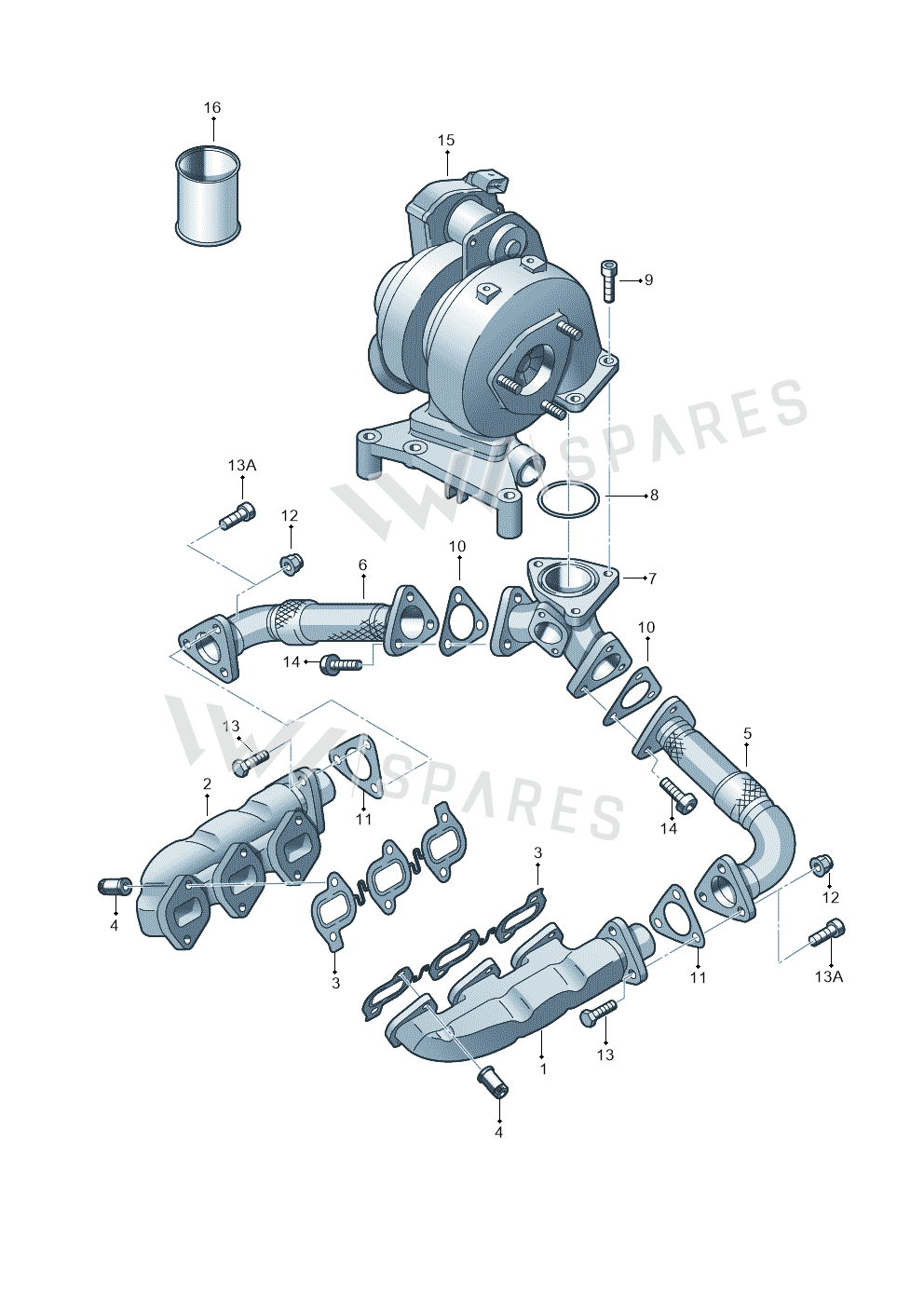

Exhaust Manifolds exploded parts diagram — phaeton 4motion · 2008-2010, position 2
Exploded view
phaeton 4motion · 2008-2010 · position 2Full diagram ↓
059253034L

059253034L Exhaust Manifolds

£240.72
£198.94 excl. VAT
Supersession roadoldest to newest
  1. 059253034JNot stocked
    Jan 2004
  2. 059253034LThis pageNot stocked
    Oct 2010
  3. 059253034ACCurrent number
Current part number059253034ACWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

11 vehicles

Exhaust Manifolds — locate Exhaust Manifolds in the official exploded view and explore the surrounding assembly.

Parts in this assembly19
Vehicle fitment table11

Europe (11)

VehicleYearsPos.QtyRemarkPR
phaeton 4motion2008-201021T41
Touareg 08>2007-21BKS+G0L
PHAETON 08>2007-21
Audi A4/S4 Cabrio./qu. 07>2006-21TA1
Audi Q7 07>2006-21
Audi A4/S4/Av./qu. 05>2005-21TA1
Touareg2005-200621G0L
Audi A6/S6/Avant/qu. 05>2004-21T41
Audi A8/S8/qu. lang2003-200721T41
Phaeton (lang)2003-200621
Touareg2003-200521

Diagrams & fitment data powered by oemdiagrams.com

Exhaust Manifolds is fitted on: phaeton 4motion 2008-2010; Touareg 08> 2007-; PHAETON 08> 2007-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi Q7 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Touareg 2005-2006; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006; Touareg 2003-2005.
