059903285 Flat Round Head Bolt
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

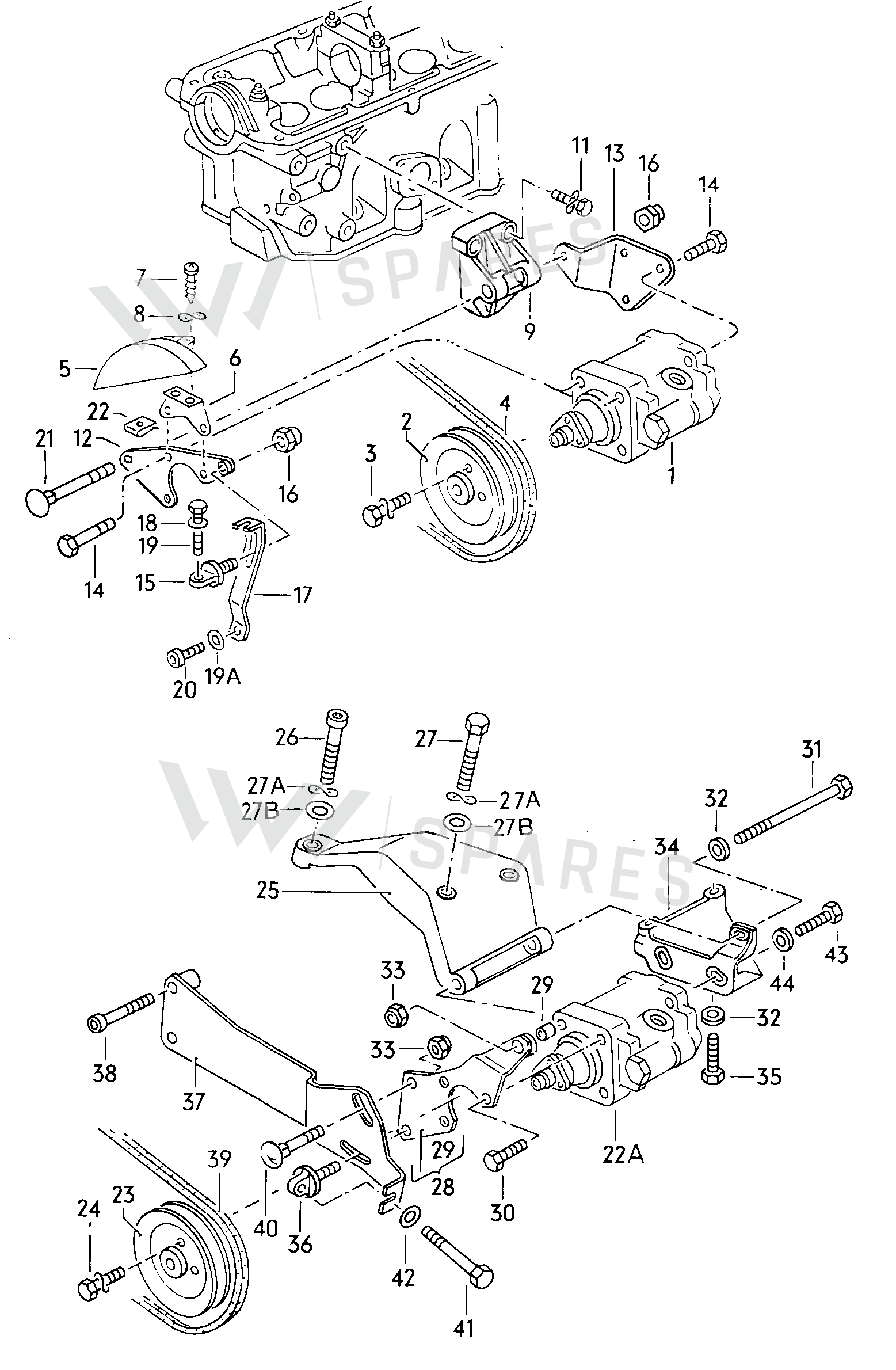

51 vehiclesFlat Round Head Bolt — locate Flat Round Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 2Pulley 035145255E
- 3Bolt N0102376
- 4V-belt 035260849C
- 5Cover 035145295
- 6Support 035145297A
- 7Screw N01396626
- 8Washer N0122243
- 9Retainer 035145515B
- 11Bolt N0102706
- 13Part 035145531H
- 14Bolt N01024016
- 15Bolt 035145541
- 16Ut Hexagon Nut Self-locking Hexagon Nut N0221464
- 18Washer N01152527
- 19Bolt N0103609
- 19AWasher N0154013
- 20Screw N0147153
- 22Part N0154222
- 23Pulley 027145255
- 25Retainer 053145515
- 26Bolt N0102478
- 27Bolt N0103974
- 27AWasher N01224110
- 28Part 049145521A
- 29Bush 068903149B
- 31Bolt N0104202
- 32Washer N90033301
- 35Bolt N01034510
- 38Screw N0147172
- 39V-belt 068145271C
- 43Bolt N01024222
Vehicle fitment table51
Europe (31)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| AUDI COUPE/2 88 | 1987-1987 | 40 | 1 | |
| Audi 4000 S | 1984-1987 | 20, 40 | 1 | |
| Audi 4000 S/CS qu. | 1984-1987 | 10 | 1 | |
| Audi 5000 S/Wagon | 1984-1986 | 21 | 1 | |
| Audi 5000 S/Wagon 84 | 1983-1984 | 20, 21 | 1 | M8X25 |
| CADDY | 1982-1992 | 17 | 1 | |
| LT, LT 4x4 (28-55) | 1982-1989 | 13 | 1 | |
| DIES.-IND.-MOT.2,4> 81> | 1981- | 13 | 1 | |
| Audi Coupe | 1981-1987 | 20, 15 | ||
| Jetta | 1981-1984 | 44, 29 | 1 | |
| Audi 4000 | 1981-1984 | 20, 15 | ||
| Scirocco | 1981-1983 | 29, 44 | 2 | |
| Audi 5000 | 1981-1982 | 20, 17 | 1 | |
| Scirocco | 1981-1981 | 44 | 1 | |
| PASSAT,-VARIANT/2 81 | 1980-1981 | 24, 15 | 1 | |
| Jetta 81 | 1980-1981 | 44 | 1 | |
| Scirocco | 1980-1981 | 44 | 1 | |
| Audi 4000 | 1979-1981 | 20, 15 | ||
| Audi 5000/Wagon | 1979-1981 | 20, 17 | 1 | |
| Scirocco | 1978-1980 | 44 | 1 | |
| OTTO-IND.-MOT. 77> | 1977- | 25 | 1 | 049:6 |
| DIES.-IND.-MOT.1,5>1,6 | 1977-1996 | 20, 24 | 1 | |
| Dasher | 1977-1980 | 11, 24 | 1 | ZA,ZF |
| Audi 5000 | 1977-1979 | 22, 20 | 1 | |
| Scirocco | 1976-1978 | 44 | 1 | EE,EF,EG, |
| Audi Fox | 1976-1978 | 23 | 1 | |
| LT 28-40 F>28-d-007273 | 1975-1982 | 13 | 1 | |
| Scirocco | 1974-1976 | 43 | 1 | FB,FD,FH,FK, |
| Dasher | 1973-1977 | 23 | 1 | |
| Audi Fox | 1972-1976 | 49 | 1 | |
| ILTIS | 21 | 1 |
Other markets (18)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| CITI GOLF "ZA"M.96> | 1996- | 44 | 1 | |
| SANTANA 2000 "CN"96>04 | 1996-2004 | 19 | 1 | |
| Vanagon | 1987-1992 | 16 | 1 | |
| Quantum | 1986-1988 | 40 | 1 | |
| SANTANA/VARIANT "CN"86> | 1985- | 19 | 1 | |
| Vanagon syncro | 1985-1992 | 16 | 1 | |
| Quantum syncro | 1985-1988 | 40 | 1 | |
| Vanagon | 1985-1987 | 16 | 1 | |
| Quantum 86 | 1985-1986 | 40 | 1 | |
| Quantum 85 | 1984-1985 | 30, 15 | 1 | JK,CY |
| Quantum | 1981-1984 | 24, 15, 40 | 1 | |
| Rabbit Conv. | 1981-1983 | 29, 44 | 2 | |
| Rabbit Conv. 81 | 1980-1981 | 44 | 1 | |
| Vanagon | 1979-1985 | 16 | 1 | |
| Rabbit/Jetta | 1978-1980 | 44 | 1 | |
| Rabbit Conv. | 1978-1980 | 44 | 1 | |
| Rabbit | 1976-1978 | 44, 43AA | 1 | EE,EF,EG, |
| Rabbit | 1974-1976 | 43 | 1 | FB,FD,FH,FK, |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 325 platform | 8 | 1 | ||
| 377 platform | 27 | 1 | 222 |
Diagrams & fitment data powered by oemdiagrams.com
Flat Round Head Bolt is fitted on: AUDI COUPE/2 88 1987-1987; Audi 4000 S 1984-1987; Audi 4000 S/CS qu. 1984-1987; Audi 5000 S/Wagon 1984-1986; Audi 5000 S/Wagon 84 1983-1984; CADDY 1982-1992; LT, LT 4x4 (28-55) 1982-1989; DIES.-IND.-MOT.2,4> 81> 1981-; Audi Coupe 1981-1987; Jetta 1981-1984; Audi 4000 1981-1984; Scirocco 1981-1983; Audi 5000 1981-1982; Scirocco 1981-1981; PASSAT,-VARIANT/2 81 1980-1981; Jetta 81 1980-1981; Scirocco 1980-1981; Audi 4000 1979-1981; Audi 5000/Wagon 1979-1981; Scirocco 1978-1980; OTTO-IND.-MOT. 77> 1977-; DIES.-IND.-MOT.1,5>1,6 1977-1996; Dasher 1977-1980; Audi 5000 1977-1979; Scirocco 1976-1978; Audi Fox 1976-1978; LT 28-40 F>28-d-007273 1975-1982; Scirocco 1974-1976; Dasher 1973-1977; Audi Fox 1972-1976; ILTIS; CITI GOLF "ZA"M.96> 1996-; SANTANA 2000 "CN"96>04 1996-2004; Vanagon 1987-1992; Quantum 1986-1988; SANTANA/VARIANT "CN"86> 1985-; Vanagon syncro 1985-1992; Quantum syncro 1985-1988; Vanagon 1985-1987; Quantum 86 1985-1986; Quantum 85 1984-1985; Quantum 1981-1984; Rabbit Conv. 1981-1983; Rabbit Conv. 81 1980-1981; Vanagon 1979-1985; Rabbit/Jetta 1978-1980; Rabbit Conv. 1978-1980; Rabbit 1976-1978; Rabbit 1974-1976; 325 platform; 377 platform.
