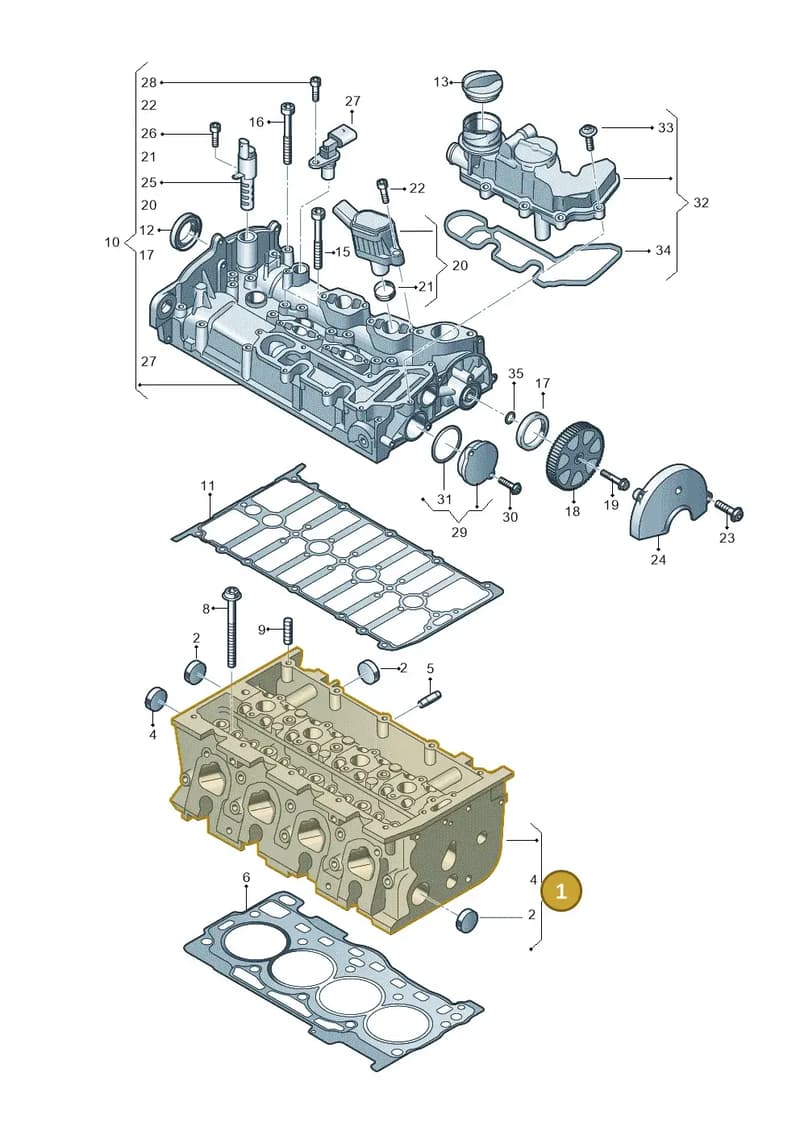

Number 1 marks the part’s position in this exploded view (Volkswagen Taigo (2021-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Cylinder Head with Valves, part number 05E103264AX. Fits SEAT Leon (2019), SEAT Arona (2017), SEAT Ibiza (2017), SEAT Ateca (2016), Volkswagen Tiguan (2016), Volkswagen Taigo (2021-2025) and 13 more. Shown as position 1 in the engine diagram 827103460.
Catalogue entry: CYL HEAD.
Fitted with: 05E103063F CYL HEAD, N10087802 BOLT, 04E103383CC SEAL, WHT007089 SCREW, 026103139 Cylinder pin, 04E103483S SEAL, N91254301 BOLT, N10689301 SCREW, 04E906145A seal ring, N10599502 SCREW, N91097201 SCREW, N91096701 BOLT.
Technical details
- Category
- Engine
- Diagram sheet
- Volkswagen 827103460, position 1
- ETKA group
- 1 / 03 (103)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
22 vehiclesCylinder Head With Valves — locate 05E103264AX Volkswagen Cylinder Head with Valves in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Cylinder Head 05E103063F
- 2Cover N01191410
- 4Bungs N90802703
- 5Bolt N91200201
- 6Seal 04E103383CC
- 8Screw WHT007089
- 9Part 026103139
- 10Cylinder Head 04E103469DH
- 10Cylinder Head 05E103469G
- 11Seal 04E103483S
- 12Seal 04E103085AF
- 13Cover 05E103485C
- 13Cover 05E103485J
- 16Bolt N91254301
- 17Seal 04E103085C
- 18Pulley 04E109111AP
- 19Screw N10689301
- 20Valve 04E906048A
- 21Seal Ring 04E906145A
- 22Screw N10599502
- 23Screw N91097201
- 24Protection 04E109121D
- 24Protection 04E109121N
- 25Valve 04E906455AC
- 26Bolt N91096701
- 27Sender 05E907601D
- 29Cover 04C103335
- 31Seal Ring N90467301
- 32Separator 05E103495J
- 32Separator 05E103495T
- 33Bolt WHT003261
- 34Seal 05E103517D
- 35Seal Ring N90851401
Compatible / alternative parts(12)
Vehicle fitment table22
Europe (22)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Taigo | 2021-2024 | 1 | 1 |
| Leon style | 2019- | 1 | 1 |
| Golf 2.0 BlueMotion | 2019-2024 | 1 | 1 |
| T-Roc convertible 1.5 | 2019-2024 | 1 | 1 |
| Octavia | 2019-2024 | 1 | 1 |
| T-Cross 1,0 | 2018-2024 | 1 | 1 |
| Tarraco FR | 2018-2024 | 1 | 1 |
| Arona FR | 2017- | 1 | 1 |
| Ibiza FR | 2017- | 1 | 1 |
| T-Roc BlueMotion | 2017-2024 | 1 | 1 |
| Tiguan 2.0 4Motion | 2017-2024 | 1 | 1 |
| Polo 1.0 BlueMotion | 2017-2024 | 1 | 1 |
| Arteon | 2017-2023 | 1 | 1 |
| Karoq | 2017-2022 | 1 | 1 |
| Octavia | 2017-2020 | 1 | 1 |
| Ateca Style | 2016- | 1 | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 1 | 1 |
| golf 2.0 | 2016-2020 | 1 | 1 |
| Leon ST Stylance | 2016-2020 | 1 | 1 |
| Touran 2,0 BlueMotion | 2015-2024 | 1 | 1 |
| Passat saloon | 2014-2024 | 1 | 1 |
| Golf Sportsvan 1.6 | 2014-2020 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
05E103264AX Volkswagen Cylinder Head with Valves is fitted on: Taigo 2021-2024; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; T-Roc convertible 1.5 2019-2024; Octavia 2019-2024; T-Cross 1,0 2018-2024; Tarraco FR 2018-2024; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Touran 2,0 BlueMotion 2015-2024; Passat saloon 2014-2024; Golf Sportsvan 1.6 2014-2020.
