05E109108J Toothed Belt Guard
- 05E109108JThis pageNot stocked
Dec 2023 - 05E109108PCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

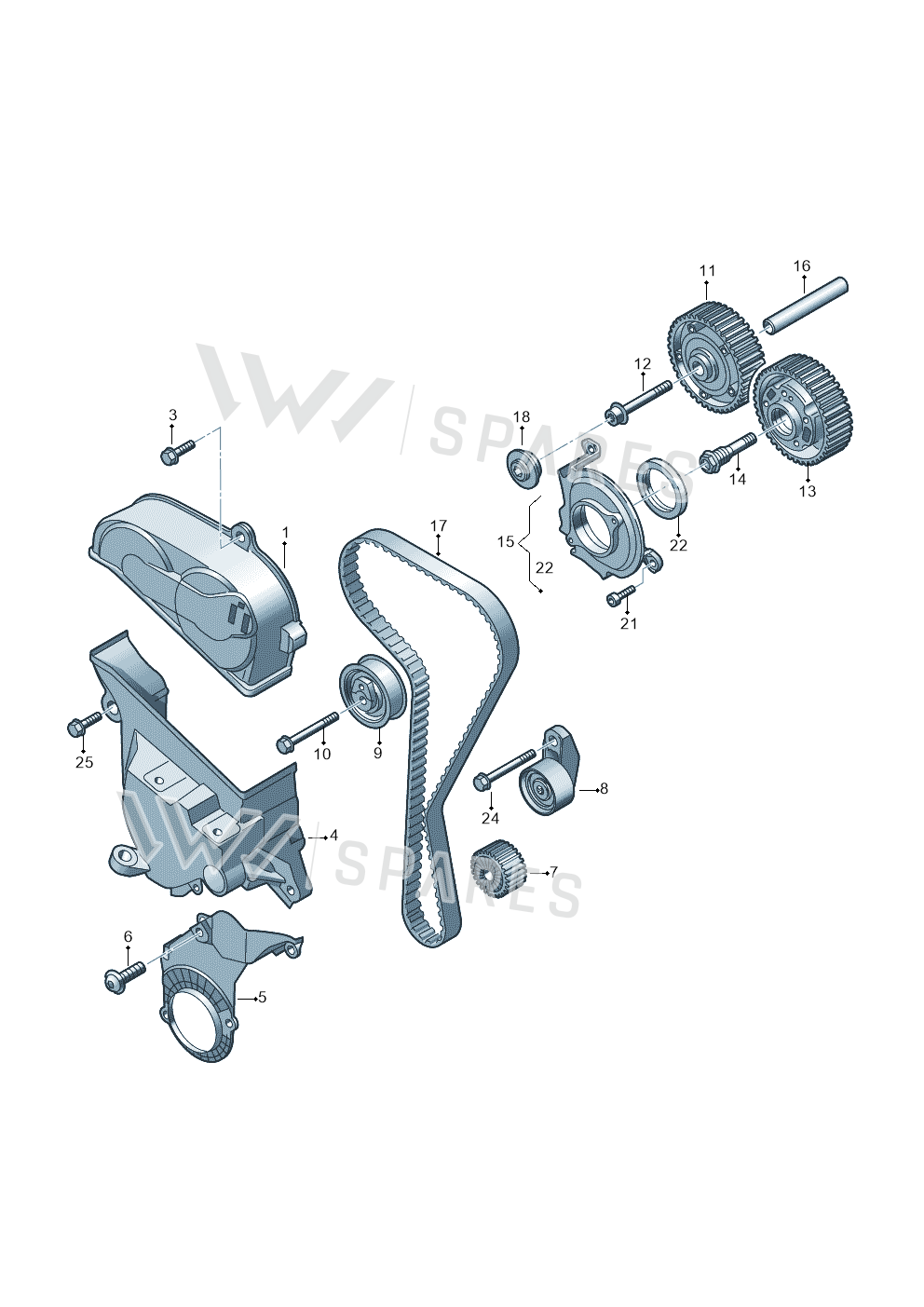

17 vehiclesToothed Belt Guard — locate Toothed Belt Guard in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Protection 05E109108P
- 3Bolt N91096801
- 4Support 05E199275D
- 5Protection 05E109175C
- 7Pulley 05E105263B
- 8Roller 05C109244A
- 9Tens Roll 05E109479B
- 10Screw N10690201
- 11Adjuster 05E109088G
- 12Screw N91264601
- 13Adjuster 05E109088F
- 14Valve 05E109257A
- 15Bracket 05C109093C
- 16Sleeve 05E103825
- 17Tooth Belt 04E109119F
- 18Screw WHT004914
- 21Bolt N10124309
- 22Seal 04E103085AN
- 24Screw N10720402
- 25Bolt N91105501
Vehicle fitment table17
Europe (17)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| fabia | 2021- | 1 | 1 |
| Taigo | 2021-2024 | 1 | 1 |
| Kamiq | 2019- | 1 | 1 |
| T-Roc convertible 1.5 | 2019-2024 | 1 | 1 |
| Audi A1 sportback 1.0 | 2018- | 1 | 1 |
| T-Cross 1,0 | 2018-2024 | 1 | 1 |
| Tarraco FR | 2018-2024 | 1 | 1 |
| Audi Q3 quattro | 2018-2019 | 1 | 1 |
| Arona FR | 2017- | 1 | 1 |
| Ibiza FR | 2017- | 1 | 1 |
| T-Roc BlueMotion | 2017-2024 | 1 | 1 |
| Tiguan 2.0 4Motion | 2017-2024 | 1 | 1 |
| Karoq | 2017-2022 | 1 | 1 |
| Ateca Style | 2016- | 1 | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 1 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 1 | 1 |
| Touran 2,0 BlueMotion | 2015-2024 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt Guard is fitted on: fabia 2021-; Taigo 2021-2024; Kamiq 2019-; T-Roc convertible 1.5 2019-2024; Audi A1 sportback 1.0 2018-; T-Cross 1,0 2018-2024; Tarraco FR 2018-2024; Audi Q3 quattro 2018-2019; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2017-2024; Karoq 2017-2022; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; Audi Q2 2.0 TDI 2016-2018; Touran 2,0 BlueMotion 2015-2024.
