Product overview
Genuine OEM Volkswagen Toothed Belt Guard, part number 05E109175H. This component protects the toothed belt from dirt, debris, and damage, ensuring its proper function and longevity. It is located in the engine timing system assembly. Made from durable materials to withstand engine bay conditions. Genuine OEM parts ensure exact fitment and material composition for reliable engine operation.
Catalogue entry: PROTECTION lower.
Fitted with: N91096801 BOLT.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping weight
- 0.24 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

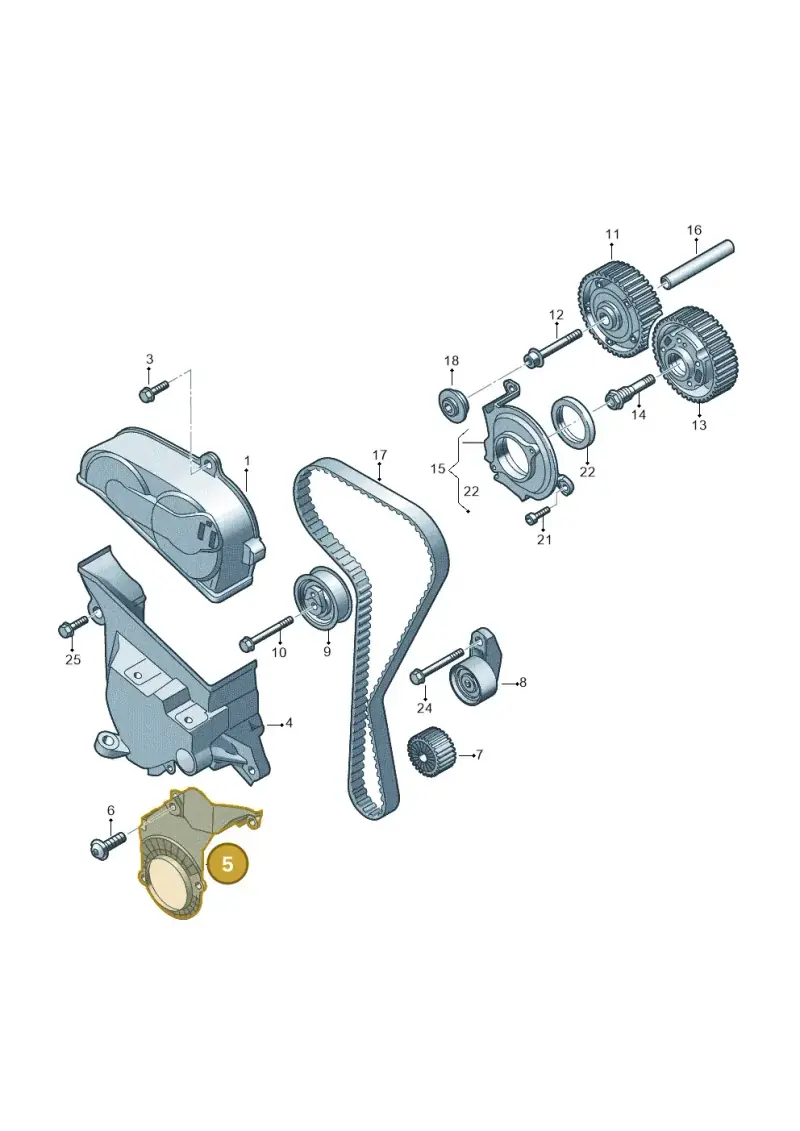

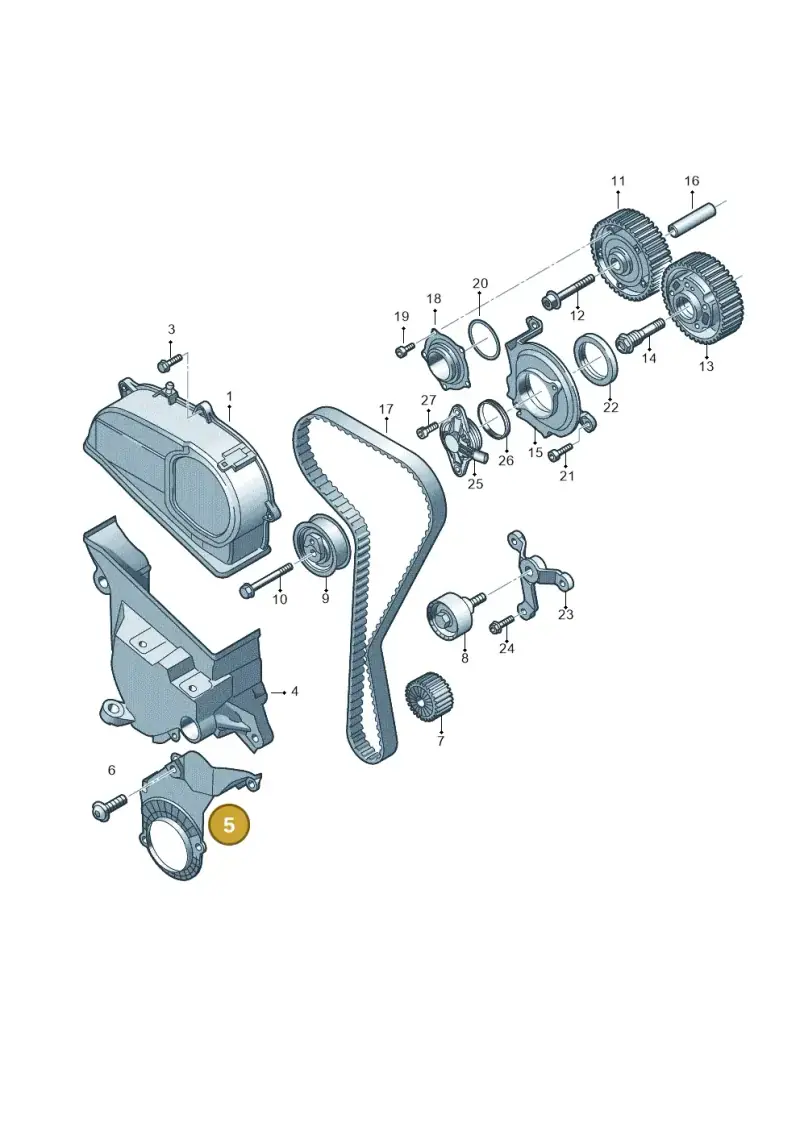

11 vehiclesToothed Belt Guard — locate 05E109175H Volkswagen Toothed Belt Guard | Engine in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Protection 05E109108R
- 3Bolt N91096801
- 4Support 05E199275R
- 7Pulley 05E105263B
- 8Roller 05E109244
- 9Tens Roll 05E109479B
- 10Screw N10690201
- 11Adjuster 05E109088G
- 12Screw N91264601
- 13Adjuster 05E109088F
- 14Valve 04E109257A
- 15Bracket 05E109093C
- 16Sleeve 05E103825
- 17Tooth Belt 04E109119F
- 18Screw WHT004914
- 21Bolt N10124309
- 22Seal 04E103085AN
- 24Screw N10720402
- 25Bolt N91105501
Vehicle fitment table11
Europe (10)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Kodiaq | 2024- | 5 | 1 |
| passat estate | 2023- | 5 | 1 |
| Tiguan 2.0 | 2023- | 5 | 1 |
| Superb Combi | 2023- | 5 | 1 |
| Multivan | 2021- | 5 | 1 |
| Formentor TSI CUPRA | 2020- | 5 | 1 |
| Caddy Maxi Kombi | 2020-2024 | 5 | 1 |
| Leon style | 2019- | 5 | 1 |
| Golf 2.0 BlueMotion | 2019-2024 | 5 | 1 |
| Audi A3 Sportback | 2019-2021 | 5 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 578 platform | 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
05E109175H Volkswagen Toothed Belt Guard | Engine is fitted on: Kodiaq 2024-; passat estate 2023-; Tiguan 2.0 2023-; Superb Combi 2023-; Multivan 2021-; Formentor TSI CUPRA 2020-; Caddy Maxi Kombi 2020-2024; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Audi A3 Sportback 2019-2021; 578 platform.
