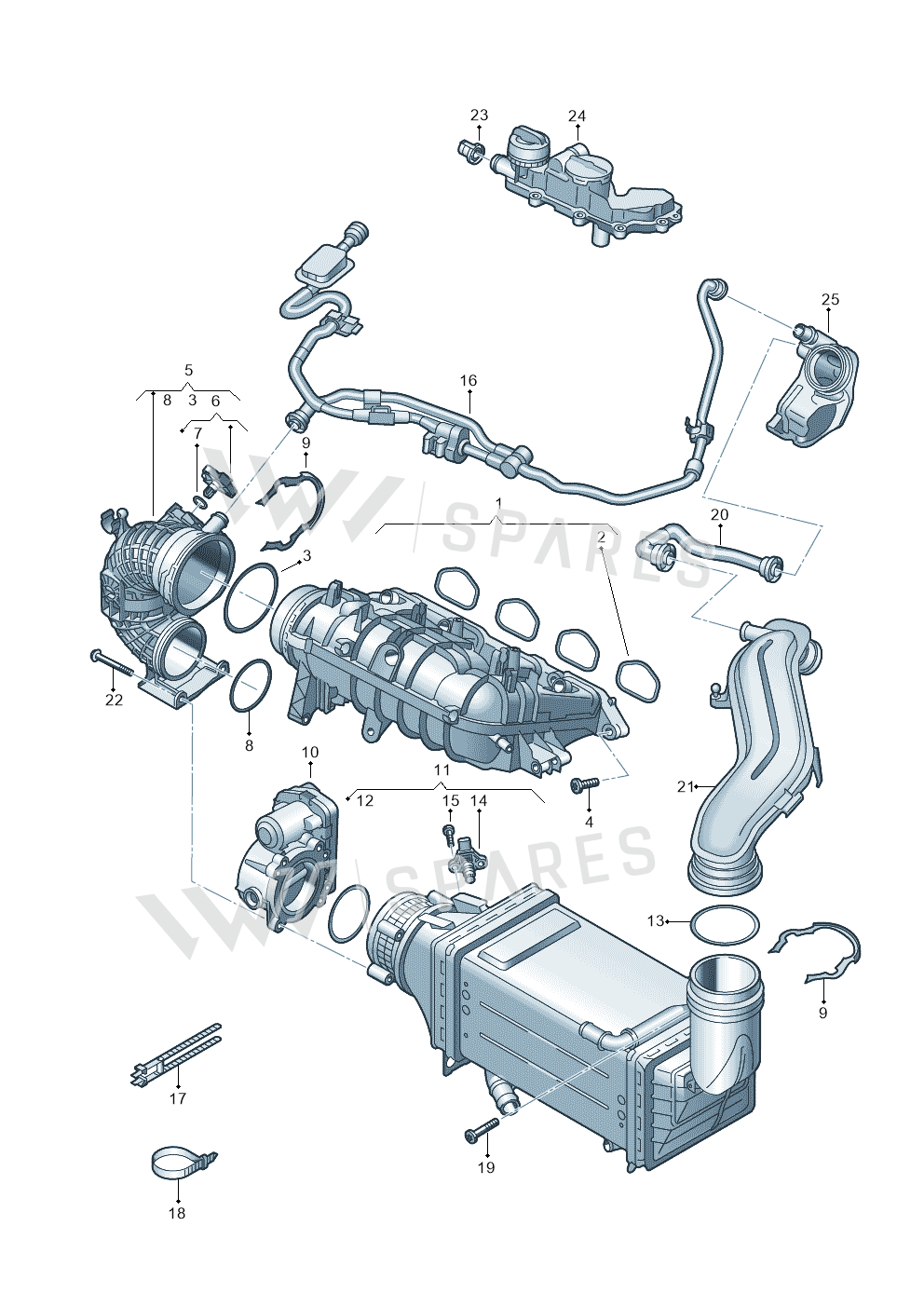

Connecting Tube With Akf Valve exploded parts diagram — Tiguan 2.0 4Motion · 2017-2024, position 16
Exploded view
Tiguan 2.0 4Motion · 2017-2024 · position 16Full diagram ↓
05E133366DK

05E133366DK Connecting Tube With Akf Valve

£143.83
£118.87 excl. VAT
Supersession road4 numbers since 2021
  1. 05E133366AENot stocked
    Jan 2021
  2. 05E133366ANSuperseded
    Nov 2024
  3. 05E133366DKThis pageNot stocked
    Nov 2025
  4. 05E133366DSCurrent · not stocked
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Connecting Tube With Akf Valve — locate Connecting Tube With Akf Valve in the official exploded view and explore the surrounding assembly.

Parts in this assembly21
Vehicle fitment table1

Europe (1)

VehicleYearsPos.Qty
Tiguan 2.0 4Motion2017-2024161

Diagrams & fitment data powered by oemdiagrams.com

Connecting Tube With Akf Valve is fitted on: Tiguan 2.0 4Motion 2017-2024.
