05L145771F Supply Pipe
- 05L145771FThis pageNot stocked
Aug 2023 - 05L145771HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

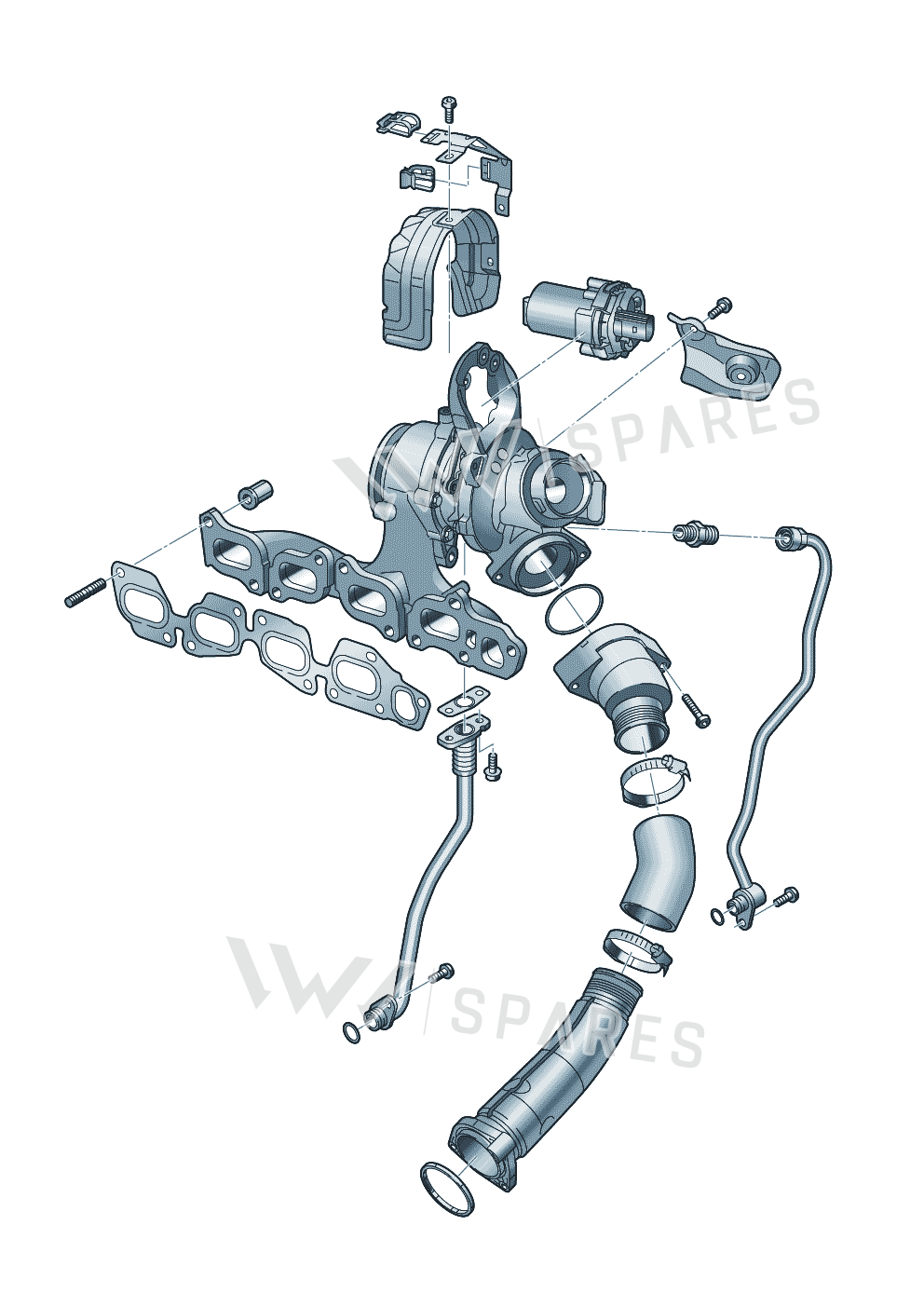

13 vehiclesSupply Pipe — locate Supply Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly21
- 1Part 05L253019P
- 2Seal 05L253039E
- 3Bolt N0444415
- 4Part WHT009072
- 6Seal Ring WHT008245
- 7Bolt N10405604
- 8Oil Line 05L145736A
- 9Seal Ring WHT007702
- 10Seal 03L145757G
- 11Bolt N90592705
- 13Damper 05L131111K
- 14Screw N91117502
- 15Heat Sh 05L129969D
- 16Bolt N10680301
- 17Bracket 05L131121J
- 18Bracket 05L971842
- 19Heat Sh 05L129969H
- 21Chargetube 05L145762D
- 22Hose 05L145828D
- 23Clamp N10518901
- 25Seal Ring 05L145187
Vehicle fitment table13
Europe (13)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Kodiaq | 2024- | 5, 8 | 1 | |
| passat estate | 2023- | 8 | 1 | |
| Tiguan 2.0 | 2023- | 8 | 1 | |
| Superb Combi | 2023- | 5, 8 | 1 | |
| Golf 2.0 BlueMotion | 2019-2024 | 8 | 1 | T3Y |
| Audi A3 Sportback | 2019-2021 | 5, 8 | 1 | |
| Tarraco FR | 2018-2024 | 8 | ||
| Audi Q3 quattro | 2018-2019 | 5, 8 | 1 | |
| Tiguan 2.0 4Motion | 2017-2024 | 5 | 1 | |
| Arteon | 2017-2023 | 8 | 1 | T3Y |
| Tiguan 2.0 4Motion | 2016-2024 | 8 | 1 | T3Y |
| Touran 2,0 BlueMotion | 2015-2024 | 8 | 1 | T3Y |
| Passat saloon | 2014-2024 | 8 | 1 | T3Y |
Diagrams & fitment data powered by oemdiagrams.com
Supply Pipe is fitted on: Kodiaq 2024-; passat estate 2023-; Tiguan 2.0 2023-; Superb Combi 2023-; Golf 2.0 BlueMotion 2019-2024; Audi A3 Sportback 2019-2021; Tarraco FR 2018-2024; Audi Q3 quattro 2018-2019; Tiguan 2.0 4Motion 2017-2024; Arteon 2017-2023; Tiguan 2.0 4Motion 2016-2024; Touran 2,0 BlueMotion 2015-2024; Passat saloon 2014-2024.
