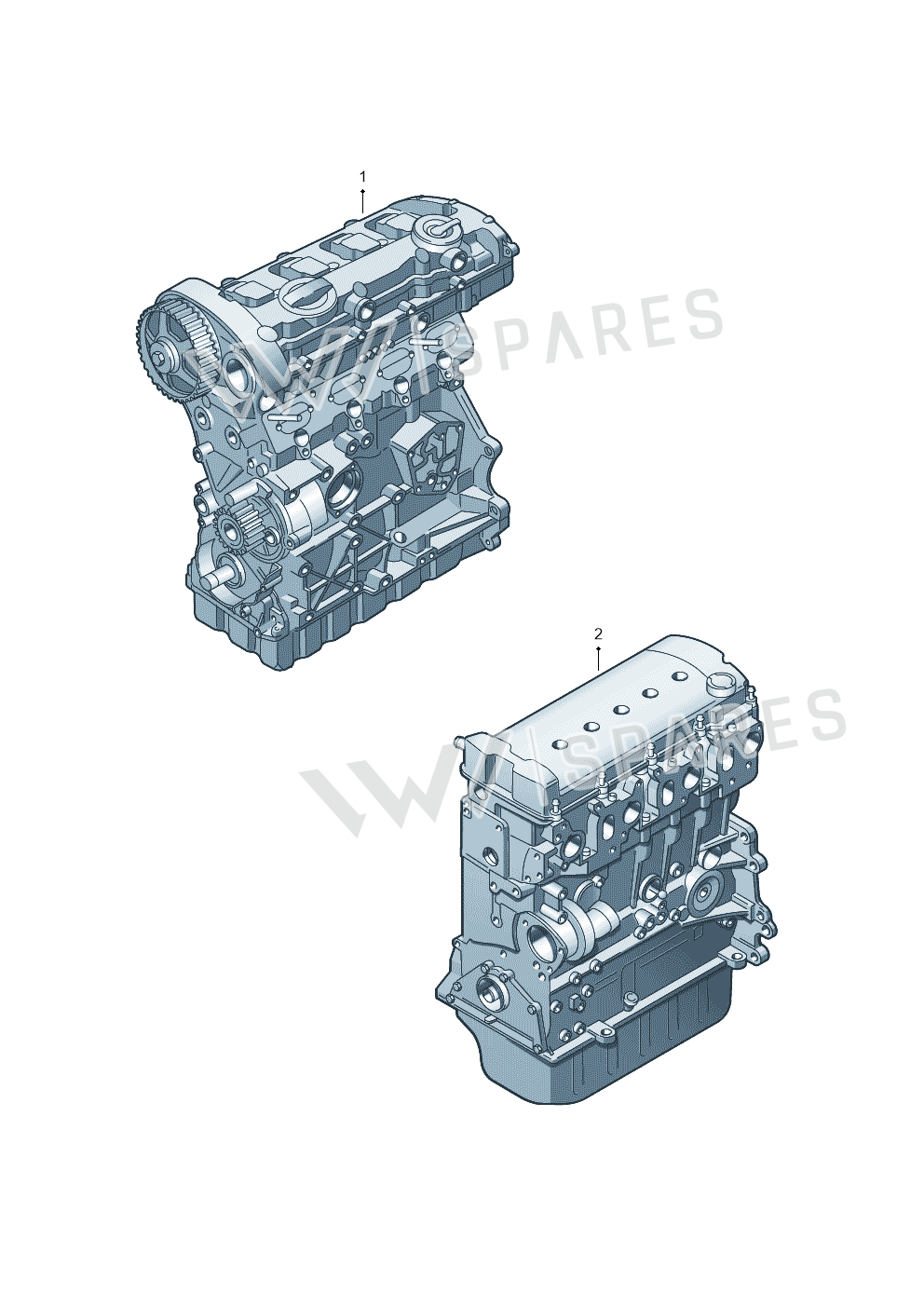

Base Engine exploded parts diagram — Sharan · 2008-2010, position 1
Exploded view
Sharan · 2008-2010 · position 1Full diagram ↓
06A100032S

06A100032S Base Engine

£9,053.60
£7,482.31 excl. VAT
Supersession roadforks into 2
  1. 06A100032SThis pageNot stocked
    Jan 2013
  2. 06A100032SXNot stocked
    Sep 2002
  1. 06A100107QXDiscontinued
    Apr 2022
  2. 058103265GXDiscontinued
    Apr 2025
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

8 vehicles

Base Engine — locate Base Engine in the official exploded view and explore the surrounding assembly.

Parts in this assembly9
Vehicle fitment table8

Europe (8)

VehicleYearsPos.QtyRemark
Sharan2008-201011AWC
Alhambra2006-201011AWC
SHARAN/4MOTION2005-11AWC
ALHAMBRA/4MOTION2005-11AWC
SHARAN/4MOTION2002-200521AWC
ALHAMBRA/4MOTION2002-200521AWC
SHARAN/4MOTION2000-200221AWC
ALHAMBRA/4MOTION2000-200221AWC

Diagrams & fitment data powered by oemdiagrams.com

Base Engine is fitted on: Sharan 2008-2010; Alhambra 2006-2010; SHARAN/4MOTION 2005-; ALHAMBRA/4MOTION 2005-; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002.
