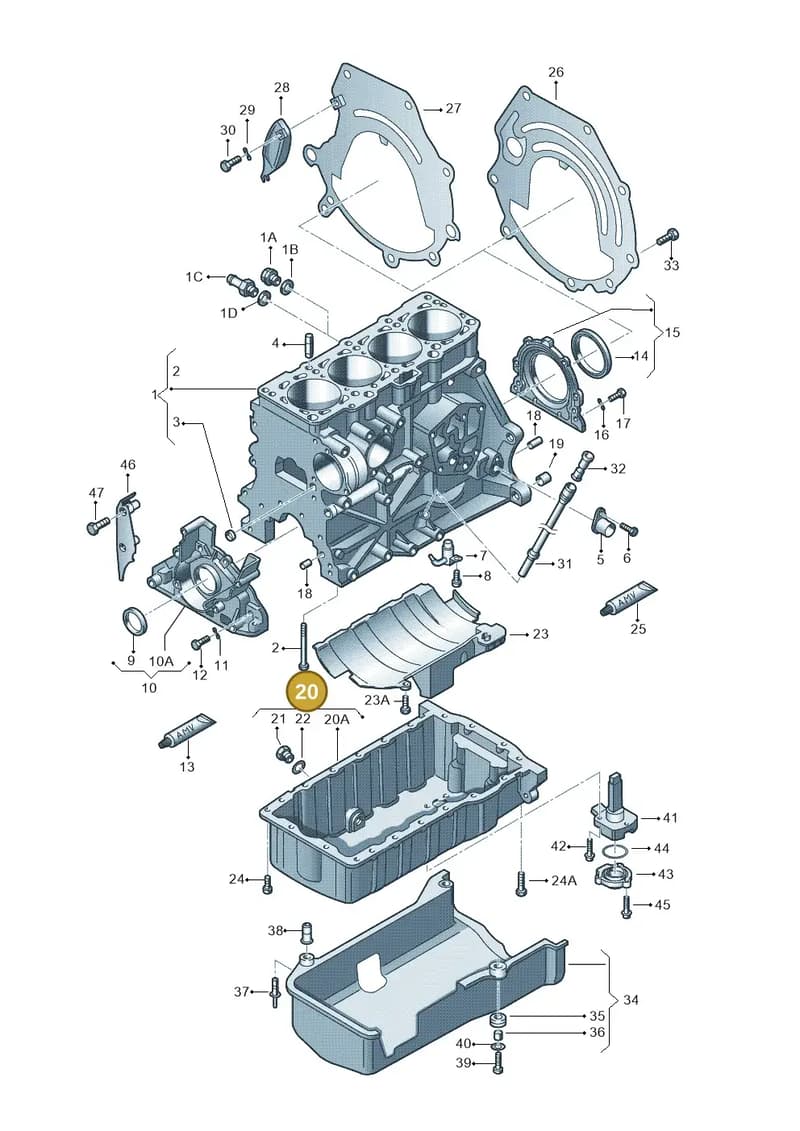

Number 20 marks the part’s position in the exploded view (SEAT Ibiza (2012-)).
Product overview
Genuine OEM Volkswagen Engine Oil Sump, part number 06A103601T. Fits SEAT Ibiza (2012). Shown as position 20 in the engine diagram 194103150. Equipment code: G0C.
Catalogue entry: OIL SUMP.
Fitted with: N90735604 BOLT, D176404A2 SEAL.
Technical details
- Category
- Engine
- Diagram sheet
- SEAT 194103150, position 20
- ETKA group
- 1 / 03 (103)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- G0C
- T18
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
27 vehiclesEngine Oil Sump — locate 06A103601T Volkswagen Engine Oil Sump in the official exploded view and explore the surrounding assembly.
