06A109175F Toothed Belt Guard
- 06A109175FThis pageNot stocked
Jul 2003 - 038109175Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

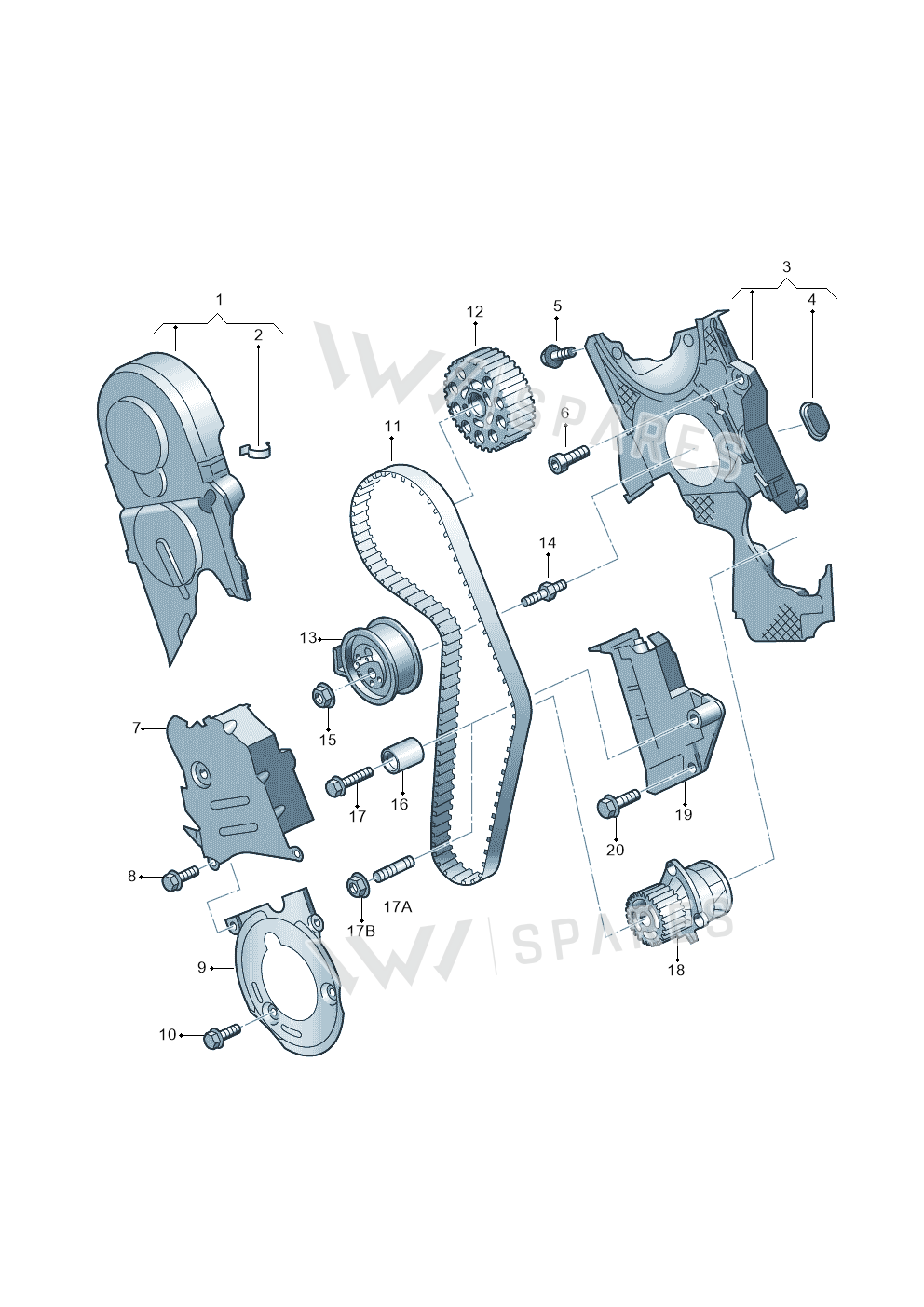

22 vehiclesToothed Belt Guard — locate Toothed Belt Guard in the official exploded view and explore the surrounding assembly.
Parts in this assembly16
- 1Protection 045109107F
- 2Clip 026109150A
- 4Bungs 038971904
- 5Bolt N10082912
- 6Screw N0147791
- 7Protection 045109147A
- 9Protection 038109175
- 11Tooth Belt 038109119P
- 13Tens Roll 045109243C
- 13Tens Roll 045109243D
- 14Bolt N90905502
- 15Collar Nut 038109454A
- 16Roller 045109244A
- 17Bolt N0195315
- 19B Tensionr 045109479B
- 20Bolt N90945002
Vehicle fitment table22
Europe (21)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| POLO | 2001-2005 | 9 | 1 | T0U |
| New Beetle | 2001-2005 | 9 | 1 | MS7,T5X |
| Audi A4/S4/Av./qu. | 2001-2004 | 9 | 1 | T5X,T9J |
| Audi A6/Wagon/quattro | 2001-2004 | 9 | 1 | D3E |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 9 | 1 | T20,T5X,T9J,T4N |
| Jetta Wagon | 2001-2001 | 9 | 1 | |
| AUDI A2 | 2000-2005 | 9 | 1 | T0U,T4A |
| AUDI A3/S3/QUATTRO | 2000-2003 | 9 | 1 | T5X,T9J |
| Passat/4Motion/W8 | 2000-2002 | 9 | 1 | T5X,T9J |
| SHARAN/4MOTION | 2000-2002 | 9 | 1 | MF7,M3L |
| ALHAMBRA/4MOTION | 2000-2002 | 9 | 1 | |
| POLO | 1999-2001 | 9 | 1 | T0U |
| Audi A4/Avant | 1999-2001 | 9 | 1 | |
| Audi A4/Av.qu. | 1999-2001 | 9 | 1 | |
| LUPO/3L TDI | 1998-2003 | 9 | 1 | |
| New Beetle | 1998-2001 | 9 | 1 | |
| Golf | 1998-2000 | 9 | 1 | |
| Passat syncro/4Motion | 1998-2000 | 9 | 1 | |
| Audi A6/Avant | 1997-2001 | 9 | 1 | |
| Passat | 1997-2000 | 9 | 1 | |
| SHARAN/SYNCRO | 1995-2000 | 9 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 9 | 1 | T5X,T9J |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt Guard is fitted on: POLO 2001-2005; New Beetle 2001-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 2001-2001; AUDI A2 2000-2005; AUDI A3/S3/QUATTRO 2000-2003; Passat/4Motion/W8 2000-2002; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; POLO 1999-2001; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; LUPO/3L TDI 1998-2003; New Beetle 1998-2001; Golf 1998-2000; Passat syncro/4Motion 1998-2000; Audi A6/Avant 1997-2001; Passat 1997-2000; SHARAN/SYNCRO 1995-2000; POLO CLASSIC "ZA"03>05 2003-2005.
