06A145691AG 1 Set Of Vacuum Pipes
- 06A145691AGThis pageNot stocked
Feb 2007 - 06A145691BKNot stocked
Dec 2008 - 06A145691CADiscontinued
Aug 2016
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

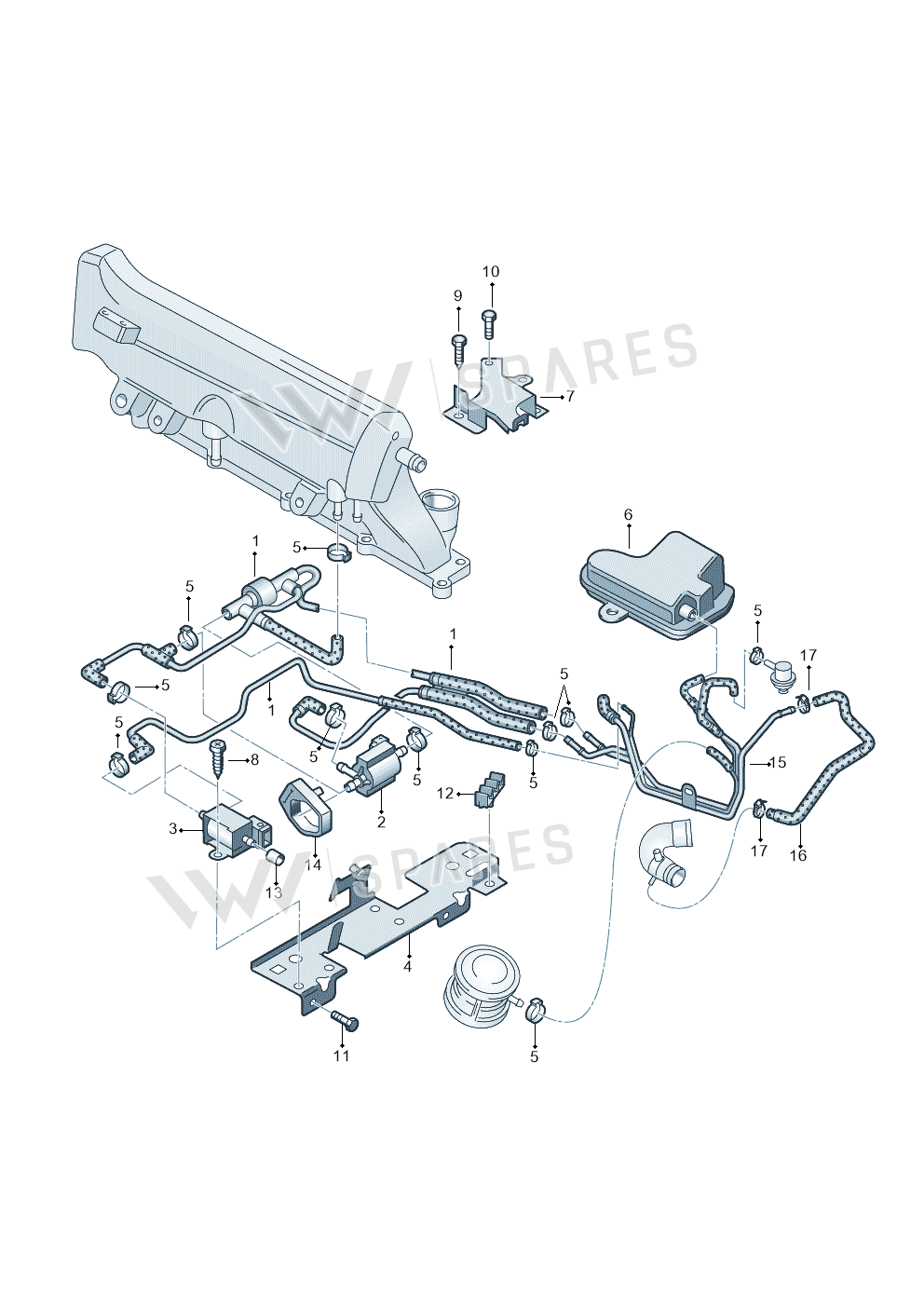

4 vehicles1 Set Of Vacuum Pipes — locate 1 Set Of Vacuum Pipes in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Press Pipe 06A145691BL
- 1Press Pipe 06A145691AH
- 2Valve 078906283A
- 3Valve 026906283H
- 4Bracket 06A103943AB
- 5Clip N10310001
- 6Tank 06A131541
- 7Bracket 06A133444K
- 7Bracket 06A133444AG
- 8Bolt N10406601
- 9Bolt N10156305
- 10Screw N10117403
- 11Screw N10162101
- 12Clip N90847501
- 13Part 078906315
- 14Rubber Ring 078145726C
- 15Press Pipe 06A145691AP
- 15Press Pipe 06A145675A
- 15Press Pipe 06A145691AE
- 15Press Pipe 06A145691AF
- 16Hose 06A133781AR
- 17Clamp N10258201
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi TT Coupe/Roadster | 1999-2002 | 1 | 1 | APP |
| Golf | 1998-2000 | 1 | 1 | ARZ |
| AUDI A3/S3/QUATTRO | 1996-2000 | 1 | 1 | ARZ,APP |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| AUDI A3-BRASIL. | 2000-2005 | 1 | 1 | APP,AGU |
Diagrams & fitment data powered by oemdiagrams.com
1 Set Of Vacuum Pipes is fitted on: Audi TT Coupe/Roadster 1999-2002; Golf 1998-2000; AUDI A3/S3/QUATTRO 1996-2000; AUDI A3-BRASIL. 2000-2005.
